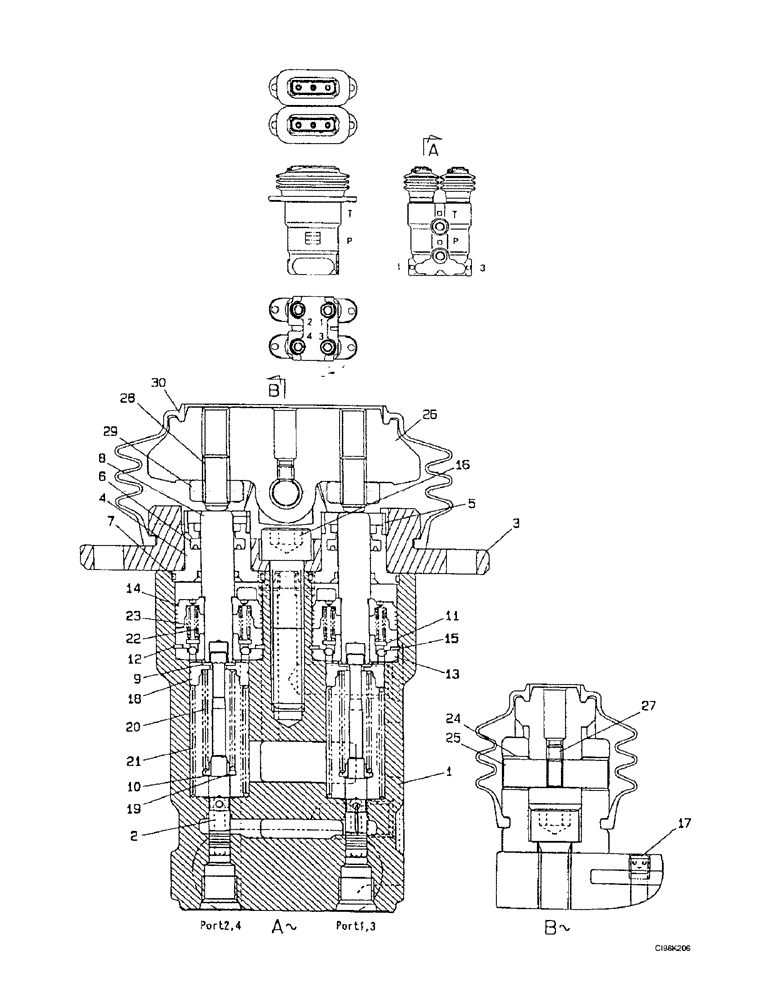

Запчасти Case 9007B (8-090) - CONTROL PEDAL - TRAVEL (08) - HYDRAULICS

166340A1

CONTROL BLOCK

Remote Consists Of Ref. Numbers : 1-30

1шт.

165203A1

SET OF PARTS

Kit, Consists Of Ref. Numbers : 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

4шт.

3

165211A1

COVER

Body

2шт.

4

165197A1

PLUG

4шт.

5

165210A1

CAP

4шт.

165204A1

SEAL KIT

Parts, Consists Of Ref. Numbers : 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Holder

4шт.

7

166804A1

O-RING

4шт.

8

165229A1

PUSH ROD

Control

4шт.

9

LA00056

WASHER

; Replaces 160286A1

8шт.

10

160285A1

WASHER

4шт.

11

165205A1

SPRING SEAT

4шт.

12

165198A1

RING, SNAP

RING SNAP Holder

4шт.

13

165196A1

BUSHING

4шт.

14

165199A1

PISTON

4шт.

15

165200A1

BALL

12шт.

16

862-12055

HEX SOC SCREW,M12 x 55mm, Cl 12.9

M12 x 55; 12.9

2шт.

17

156972A1

PLUG

2шт.

18

165277A1

SPRING

4шт.

19

160283A1

WASHER

4шт.

20

166977A1

SPRING

4шт.

21

160250A1

SPRING

4шт.

22

165277A1

SPRING

4шт.

23

165208A1

SPRING

Spring

4шт.

24

160035A1

BUSHING

4шт.

25

160022A1

SHAFT

Cam

2шт.

26

160090A1

CAM

2шт.

27

160071A1

SET SCREW

2шт.

28

160282A1

SCREW

4шт.

29

160281A1

LOCK NUT

Lock

4шт.

30

160001A1

BELLOWS

Boot

2шт.
