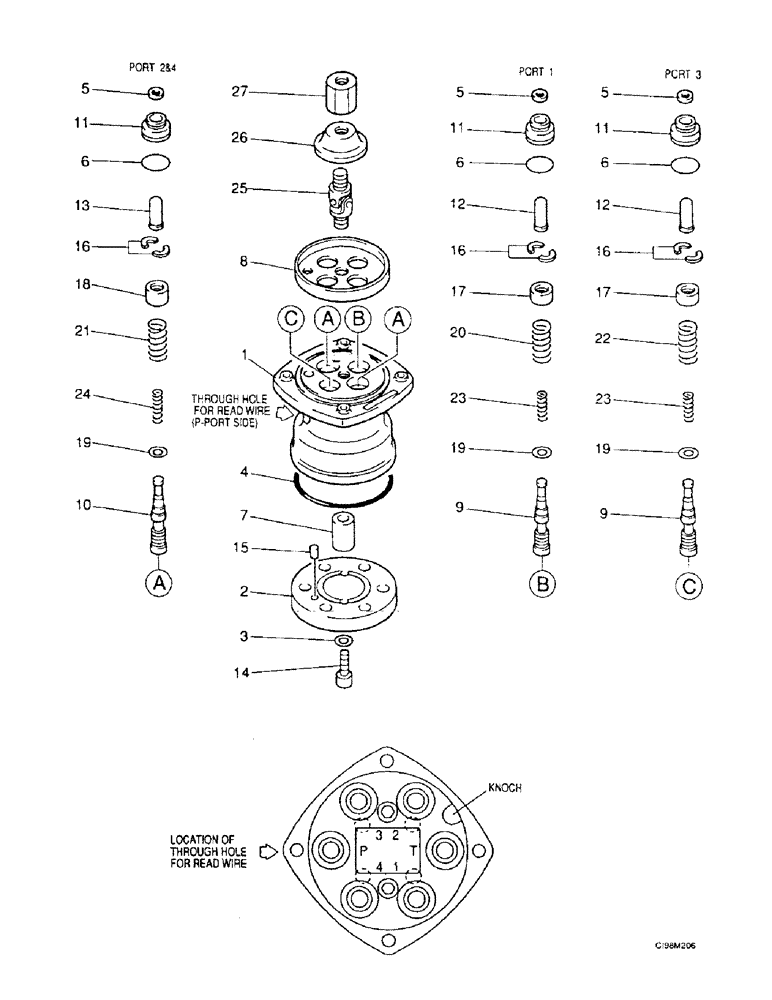

Запчасти Case 9007B (8-088) - HAND CONTROL VALVE (08) - HYDRAULICS

159700A1

CONTROL BLOCK

Remote Consists Of Ref. Numbers : 1-27

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

160310A1

COVER

Plate

1шт.

160218A1

SEAL KIT

Package, Seals, Consists Of Ref. Numbers : 3, 4, 5, 6

1шт.

3

156164A1

SEALING WASHER

2шт.

4

155167A1

O-RING

1шт.

5

155292A1

SEAL

Seal

4шт.

6

154491A1

O-RING

4шт.

14

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

2шт.

15

738-1510

LOCK PIN,M5 x 10, Slotted

1шт.

7

160036A1

BUSHING

1шт.

8

160309A1

RETAINER

Plate

1шт.

9

NSS

NOT SOLD SEPARAT

Spool

2шт.

10

NSS

NOT SOLD SEPARAT

Spool

2шт.

11

160070A1

PLUG

4шт.

12

160026A1

THREADED ROD

Piston

2шт.

13

160027A1

THREADED ROD

Piston

2шт.

14

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

2шт.

15

738-1510

LOCK PIN,M5 x 10, Slotted

1шт.

16

LA00056

WASHER

; Replaces 160286A1

8шт.

17

160234A1

SPRING SEAT

2шт.

18

160233A1

SPRING SEAT

2шт.

19

160285A1

WASHER

4шт.

20

160251A1

SPRING

1шт.

21

160253A1

SPRING

2шт.

22

160252A1

SPRING

1шт.

23

160254A1

SPRING

2шт.

24

160255A1

SPRING

2шт.

25

155255A1

FLEXIBLE JOINT

Seal

1шт.

26

155577A1

PIVOTING ARM

Plate, Backing

1шт.

27

156165A1

NUT

1шт.
