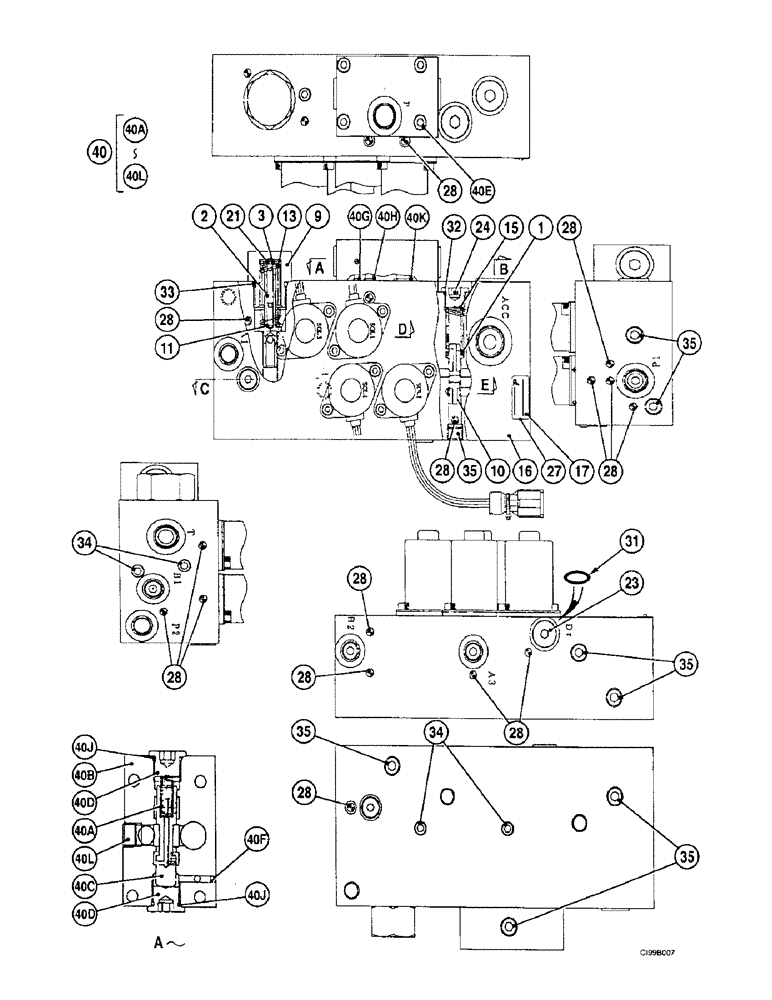

Запчасти Case 9007B (8-082) - SELECTOR BLOCK (08) - HYDRAULICS

167705A1

VALVE

Block, Selector, Consists Of Ref. Numbers : B, C, D, E, 1, 2, 3, 9, 10, 11, 13, 15, 16, 17, 21, 23, 24, 27, 28, 31-35, 40

1шт.

b

REF

INSTRUCTION

Section, See Figure : 8-86

1шт.

c

REF

INSTRUCTION

Section, See Figure : 8-86

1шт.

d

REF

INSTRUCTION

Section, See Figure : 8-86

1шт.

e

REF

INSTRUCTION

Section, See Figure : 8-86

1шт.

1

166854A1

SHIM

3шт.

2

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

3

166948A1

SPOOL

1шт.

9

166842A1

PLUG

1шт.

10

166949A1

SPOOL

1шт.

11

166855A1

SHIM

3шт.

13

166982A1

SPRING

Compression

1шт.

15

169244A1

COMPRESSION SPRING

1шт.

16

NSS

NOT SOLD SEPARAT

Body

1шт.

17

NSS

NOT SOLD SEPARAT

Plate

2шт.

21

166856A1

SHIM

1шт.

23

160083A1

PLUG

1шт.

24

166184A1

PLUG

1шт.

27

NSS

NOT SOLD SEPARAT

Rivet

2шт.

28

NSS

NOT SOLD SEPARAT

Screw

15шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

154475A1

O-RING

1шт.

33

154503A1

O-RING

1шт.

34

166843A1

PLUG

5шт.

35

166844A1

PLUG

6шт.

40

166896A1

SPRING

Body, Consists Of Ref. Numbers : 40A-40L

1шт.

40a

166981A1

SPRING

Compression

1шт.

40b

NSS

NOT SOLD SEPARAT

Body

1шт.

40c

NSS

NOT SOLD SEPARAT

Spool

1шт.

40d

166184A1

PLUG

2шт.

40f

NSS

NOT SOLD SEPARAT

Ball

1шт.

40g

154447A1

O-RING

1шт.

40e

862-6030

HEX SOC SCREW,M6 x 30mm, Cl 12.9

4шт.

40h

154451A1

O-RING

1шт.

40j

154475A1

O-RING

2шт.

40k

155062A1

O-RING

2шт.

40l

166844A1

PLUG

7шт.
