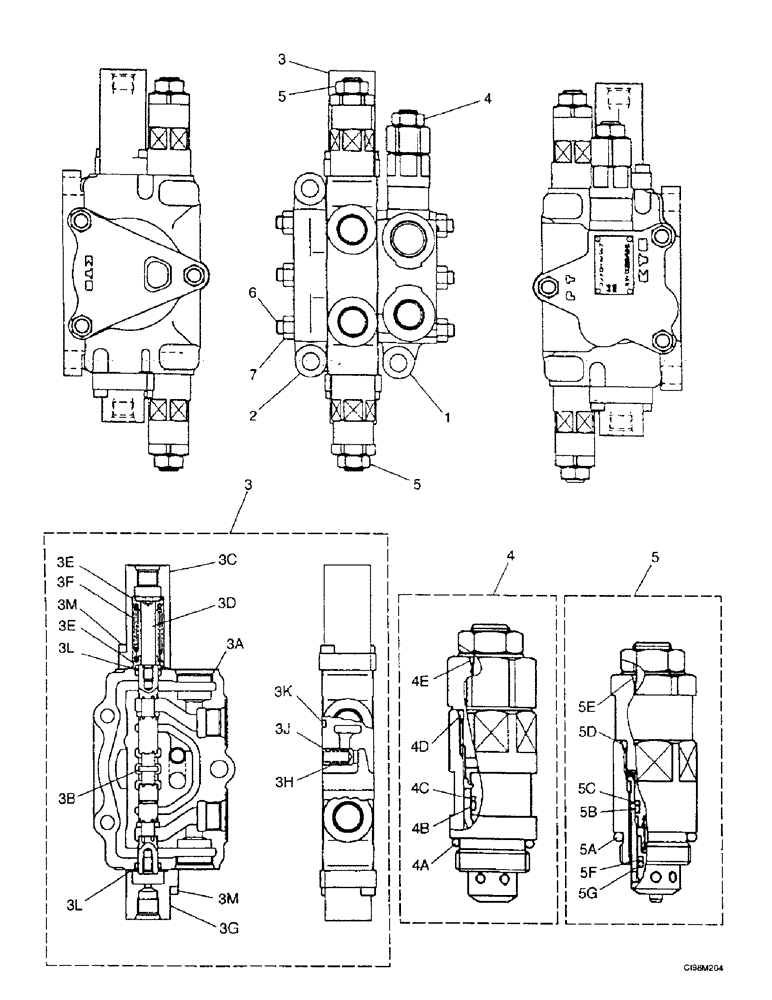

Запчасти Case 9007B (8-080) - CONTROL VALVE - DOZER BLADE (08) - HYDRAULICS

167655A1

VALVE, CONTROL

Consists of: Ref. nos. 1-7

1шт.

1

167384A1

MANIFOLD

Section, Inlet

1шт.

2

167385A1

MANIFOLD

Section, Outlet

1шт.

3

NSS

NOT SOLD SEPARAT

Spool Assy, Consists of: Ref. nos. 3A-3M

1шт.

3a

NSS

NOT SOLD SEPARAT

Body

1шт.

Part of Spool Assembly, not serviced separately

1шт.

3b

NSS

NOT SOLD SEPARAT

Spool

1шт.

Part of Spool Assembly, not serviced separately

1шт.

3c

167400A1

CAP

1шт.

Part of Spool Assembly, not serviced separately

1шт.

3d

167401A1

SCREW

1шт.

Part of Spool Assembly, not serviced separately

1шт.

3e

167398A1

SPRING SEAT

12шт.

Part of Spool Assembly, not serviced separately

1шт.

3f

167413A1

SPRING

1шт.

Part of Spool Assembly, not serviced separately

1шт.

3g

167399A1

CAP

1шт.

Part of Spool Assembly, not serviced separately

1шт.

3h

167397A1

VALVE, CHECK

Pilot

1шт.

Part of Spool Assembly, not serviced separately

1шт.

3j

167414A1

SPRING

1шт.

Part of Spool Assembly, not serviced separately

1шт.

3k

154624A1

O-RING

1шт.

Part of Spool Assembly, not serviced separately

1шт.

3l

154499A1

O-RING

2шт.

Part of Spool Assembly, not serviced separately

1шт.

3m

167423A1

HEX SOC SCREW

Screw

4шт.

Part of Spool Assembly, not serviced separately

1шт.

4

167386A1

VALVE, PRESSURE RELI

EF Consists of: ref. nos. 4A-4E

1шт.

4a

155222A1

O-RING

1шт.

Part of Pressure Relief Valve, P/N 167386A1

1шт.

4b

167357A1

O-RING

1шт.

Part of Pressure Relief Valve, P/N 167386A1

1шт.

4c

153952A1

BACK-UP RING

1шт.

Part of Pressure Relief Valve, P/N 167386A1

1шт.

4d

155221A1

O-RING

1шт.

Part of Pressure Relief Valve, P/N 167386A1

1шт.

4e

154463A1

O-RING

1шт.

Part of Pressure Relief Valve, P/N 167386A1

1шт.

5

167387A1

VALVE, PRESSURE RELI

EF Consists of: ref. nos. 5A-5G

2шт.

5a

155222A1

O-RING

1шт.

Part of Pressure Relief Valve, P/N 167387A1

1шт.

5b

167362A1

O-RING

1шт.

Part of Pressure Relief Valve, P/N 167387A1

1шт.

5c

167356A1

BACK-UP RING

1шт.

Part of Pressure Relief Valve, P/N 167387A1

1шт.

5d

155221A1

O-RING

1шт.

Part of Pressure Relief Valve, P/N 167387A1

1шт.

5e

154463A1

O-RING

1шт.

Part of Pressure Relief Valve, P/N 167387A1

1шт.

5f

163323A1

O-RING

1шт.

Part of Pressure Relief Valve, P/N 167387A1

1шт.

5g

164575A1

BACK-UP RING

Ring, Snap

1шт.

Part of Pressure Relief Valve, P/N 167387A1

1шт.

6

167422A1

THREADED ROD

Rod, Threaded

3шт.

7

167421A1

NUT

6шт.
