Запчасти Case 9007B (8-072) - CONTROL VALVE (08) - HYDRAULICS

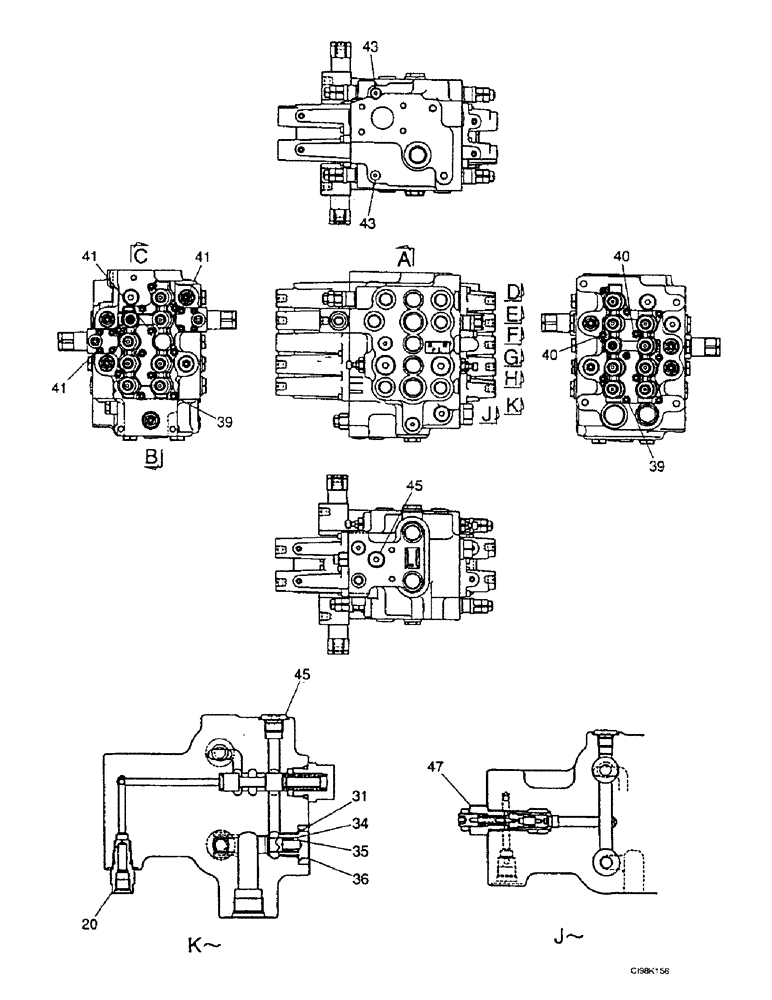

Схема запчастей Case 9007B - (8-072) - CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

166338A1

VALVE, CONTROL

Consists Of Ref. Numbers : A-H, 20, 31, 34-36, 39-41, 45, 47 Consists Of Figures : 8-74, 8-76

1шт.

a

REF

INSTRUCTION

Section, See Figure : 8-74

1шт.

b

REF

INSTRUCTION

Section, See Figure : 8-74

1шт.

c

REF

INSTRUCTION

Section, See Figure : 8-74

1шт.

d

REF

INSTRUCTION

Section, See Figure : 8-78

1шт.

e

REF

INSTRUCTION

Section, See Figure : 8-74

1шт.

f

REF

INSTRUCTION

Section, See Figure : 8-78

1шт.

g

REF

INSTRUCTION

Section, See Figure : 8-78

1шт.

h

REF

INSTRUCTION

Section, See Figure : 8-78

1шт.

20

166838A1

PLUG

1шт.

31

154487A1

O-RING

8шт.

34

166945A1

VALVE POPPET

8шт.

35

166978A1

SPRING

8шт.

36

166840A1

PLUG

8шт.

39

861-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

17шт.

40

167002A1

SCREW,Skt Hd

Screw

2шт.

41

861-6050

HEX SOC SCREW,M6 x 50mm, Cl 12.9

11шт.

43

163368A1

PLUG

3шт.

45

163369A1

PLUG

5шт.

47

166891A1

VALVE, PRESSURE RELI

EF Second

1шт.

Выбрано товаров: 20
