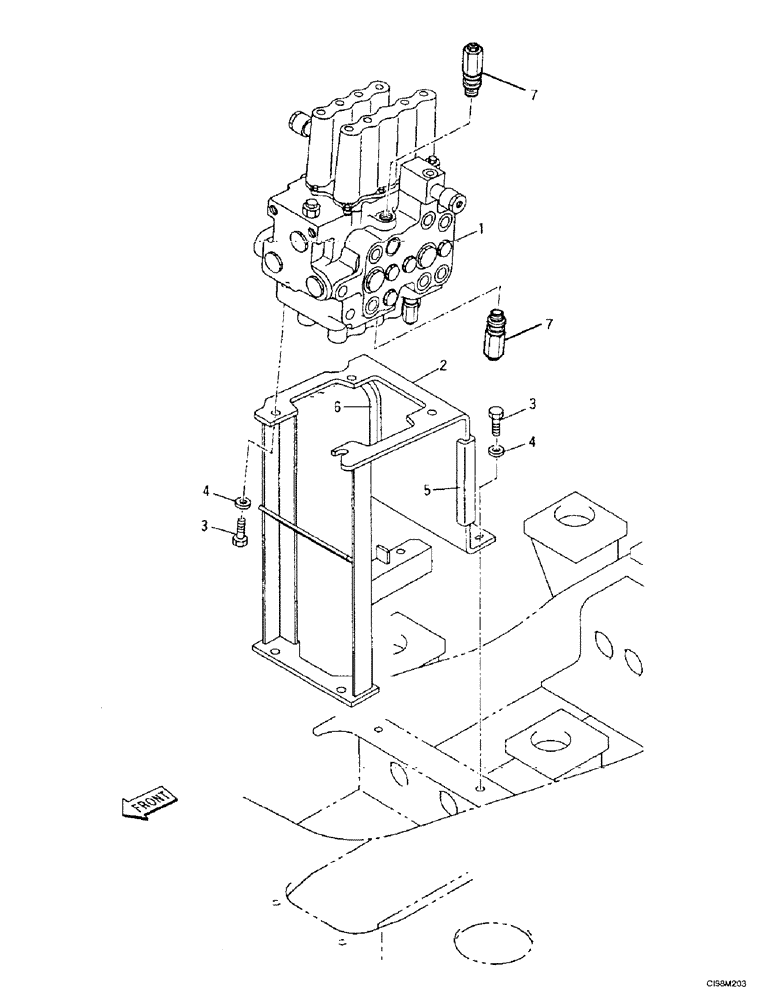

Запчасти Case 9007B (8-070) - CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control, See Figure : 8-72

1шт.

2

166379A1

BRACKET

Mount

1шт.

3

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

5

166326A1

GROMMET

Guard

1шт.

6

166380A1

GROMMET

Guard

1шт.

7

167032A1

VALVE, PRESSURE RELI

EF Pick Hammer

2шт.
