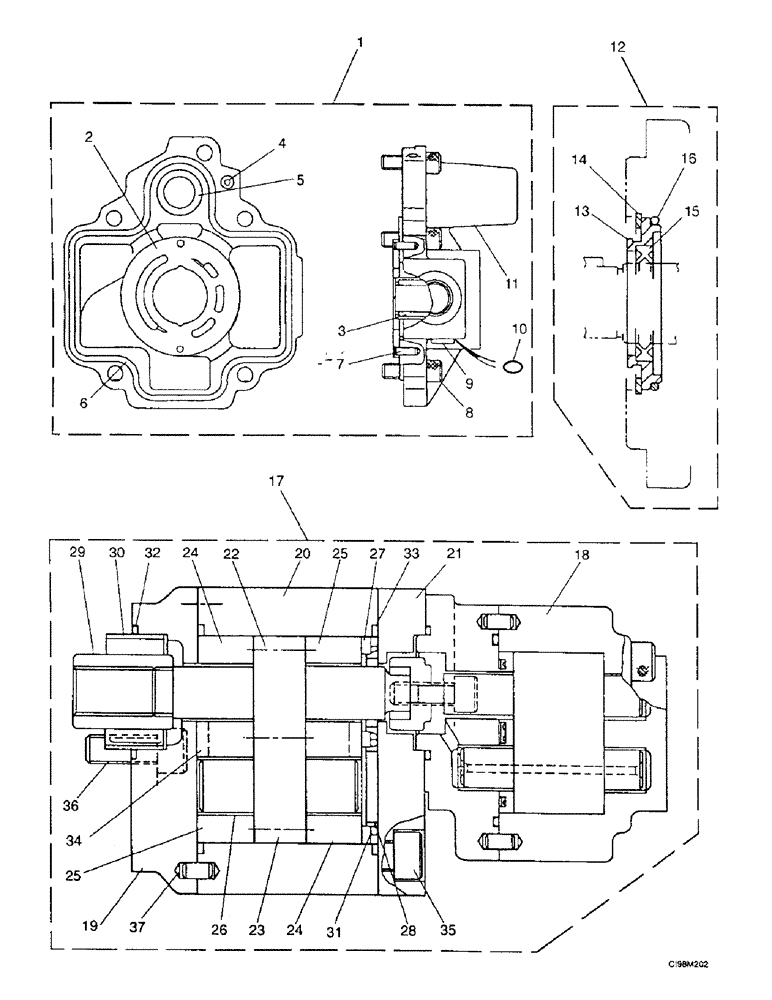

Запчасти Case 9007B (8-066) - HYDRAULIC PUMP (08) - HYDRAULICS

1

167441A1

COVER

Cover Sheet, Consists Of Ref. Numbers : 2-11

1шт.

2

167430A1

LARGE PLATE

PLATE, LARGE

1шт.

3

164887A1

NEEDLE BEARING,25 mm ID x 38 mm OD x 26 mm

Ball

1шт.

4

154455A1

O-RING

1шт.

5

154574A1

O-RING

1шт.

6

167360A1

O-RING

1шт.

7

167378A1

COTTER PIN

Dowel

2шт.

8

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

5шт.

9

155498A1

PLUG

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

167442A1

COVER

Sheet

1шт.

12

167393A1

KIT

Cover, Bearing

1шт.

13

NSS

NOT SOLD SEPARAT

Cover, Bearing

1шт.

14

166179A1

RING, SNAP

RING SNAP

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, Oil

1шт.

16

167361A1

O-RING

1шт.

17

167396A1

HYDRAULIC PUMP

Consists Of Ref. Numbers : 18 - 37

1шт.

18

167394A1

PUMP

1шт.

19

167433A1

FUNNEL

FRAME

1шт.

20

167432A1

BOX

Body

1шт.

21

167435A1

PLATE

1шт.

22

167366A1

PINION

Gear

1шт.

23

167367A1

GEAR, IDLER

GEAR,IDLE

1шт.

24

NSS

NOT SOLD SEPARAT

Plate

2шт.

25

NSS

NOT SOLD SEPARAT

Plate

2шт.

26

NSS

NOT SOLD SEPARAT

Bearing, Gland

4шт.

27

167431A1

PLATE

4шт.

28

167380A1

GUIDE

1шт.

29

167365A1

COUPLING

Sleeve

1шт.

30

167375A1

BUSHING

1шт.

31

167359A1

O-RING

2шт.

32

167358A1

O-RING

1шт.

33

167354A1

RING

2шт.

34

167355A1

RING

2шт.

35

862-10090

HEX SOC SCREW,M10 x 90mm, Cl 12.9

Screw M10 x 90

4шт.

36

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

2шт.

37

837-5010

DOWEL,M5 x 10

Dowel

4шт.
