Запчасти Case 9007B (8-062) - HYDRAULIC PUMP (08) - HYDRAULICS

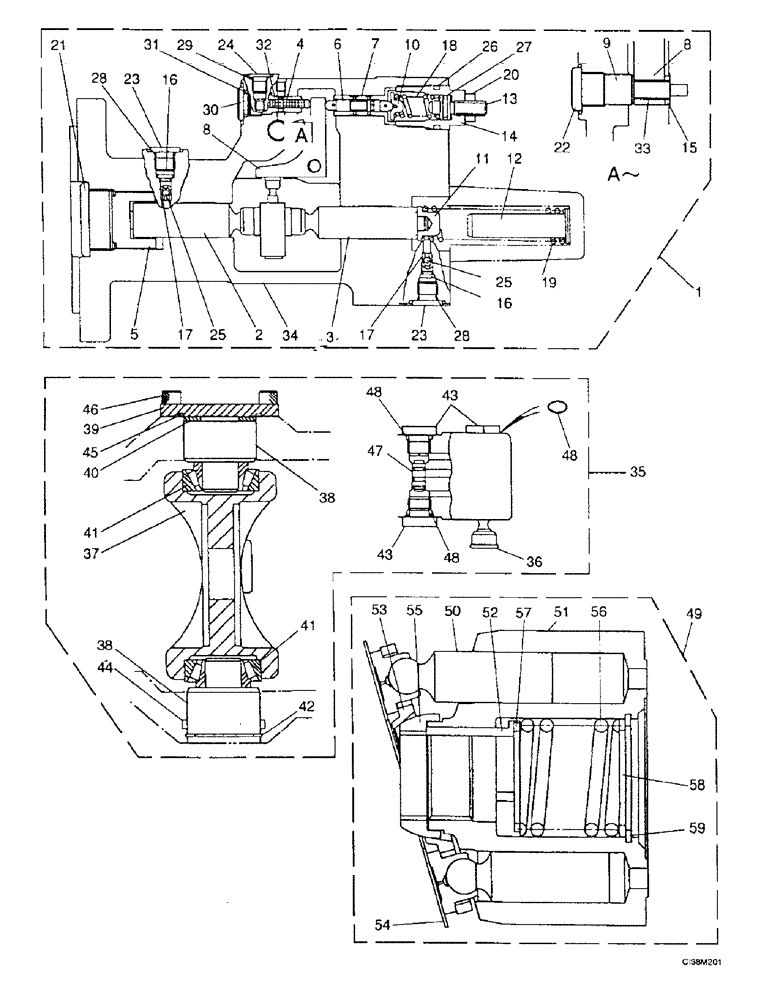

Схема запчастей Case 9007B - (8-062) - HYDRAULIC PUMP (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Body Assy, Consists o: ref. nos. 2-34

1шт.

2

167408A1

PISTON

1шт.

Part of Body Assembly, not serviced separately

1шт.

3

167407A1

PISTON

1шт.

Part of Body Assembly, not serviced separately

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

Part of Body Assembly, not serviced separately

1шт.

5

167404A1

SPACER

Hub

1шт.

Part of Body Assembly, not serviced separately

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

Part of Body Assembly, not serviced separately

1шт.

7

NSS

NOT SOLD SEPARAT

Cylinder

1шт.

Part of Body Assembly, not serviced separately

1шт.

8

167405A1

PIN

1шт.

Part of Body Assembly, not serviced separately

1шт.

9

167374A1

SHAFT

Pin

1шт.

Part of Body Assembly, not serviced separately

1шт.

10

167417A1

SPRING SEAT

1шт.

Part of Body Assembly, not serviced separately

1шт.

11

167418A1

SPRING SEAT

1шт.

Part of Body Assembly, not serviced separately

1шт.

12

167406A1

SPRING SEAT

1шт.

Part of Body Assembly, not serviced separately

1шт.

13

167424A1

ADJUSTMENT SCREW

Set

1шт.

Part of Body Assembly, not serviced separately

1шт.

14

167434A1

GUIDE

1шт.

Part of Body Assembly, not serviced separately

1шт.

15

167381A1

SHIM

1шт.

Part of Body Assembly, not serviced separately

1шт.

16

167412A1

SEAT, VALVE

2шт.

Part of Body Assembly, not serviced separately

1шт.

17

167439A1

GUIDE

2шт.

Part of Body Assembly, not serviced separately

1шт.

18

167415A1

SPRING

1шт.

Part of Body Assembly, not serviced separately

1шт.

19

167416A1

SPRING

Spring

1шт.

Part of Body Assembly, not serviced separately

1шт.

20

829-1310

NUT,M10, Cl 10

1шт.

Part of Body Assembly, not serviced separately

1шт.

21

167377A1

PLUG

1шт.

Part of Body Assembly, not serviced separately

1шт.

22

156635A1

PLUG

1шт.

Part of Body Assembly, not serviced separately

1шт.

23

155498A1

PLUG

2шт.

Part of Body Assembly, not serviced separately

1шт.

24

155502A1

PLUG

1шт.

Part of Body Assembly, not serviced separately

1шт.

25

167440A1

BALL

2шт.

Part of Body Assembly, not serviced separately

1шт.

26

154503A1

O-RING

1шт.

Part of Body Assembly, not serviced separately

1шт.

27

167364A1

O-RING

1шт.

Part of Body Assembly, not serviced separately

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

Part of Body Assembly, not serviced separately

1шт.

29

154455A1

O-RING

1шт.

Part of Body Assembly, not serviced separately

1шт.

30

155499A1

PLUG

1шт.

Part of Body Assembly, not serviced separately

1шт.

31

154475A1

O-RING

1шт.

Part of Body Assembly, not serviced separately

1шт.

32

NSS

NOT SOLD SEPARAT

Bushing

1шт.

Part of Body Assembly, not serviced separately

1шт.

33

NSS

NOT SOLD SEPARAT

Bearing, Gland

1шт.

Part of Body Assembly, not serviced separately

1шт.

34

NSS

NOT SOLD SEPARAT

Body

1шт.

Part of Body Assembly, not serviced separately

1шт.

35

NSS

NOT SOLD SEPARAT

Cam Assy, Consists of: ref. nos. 36-48

1шт.

36

167409A1

PISTON

1шт.

Part of Cam Assembly, not serviced separately

1шт.

37

167383A1

FASTENER

Cam

1шт.

Part of Cam Assembly, not serviced separately

1шт.

38

NSS

NOT SOLD SEPARAT

Shaft

2шт.

Part of Cam Assembly, not serviced separately

1шт.

39

167428A1

COVER

Sheet

1шт.

Part of Cam Assembly, not serviced separately

1шт.

40

167382A1

SHIM

1шт.

Part of Cam Assembly, not serviced separately

1шт.

41

NSS

NOT SOLD SEPARAT

Bearing, Cone

2шт.

Part of Cam Assembly, not serviced separately

1шт.

42

800-2160

SNAP RING,M60, Int

Ring, Retaining

1шт.

Part of Cam Assembly, not serviced separately

1шт.

43

155502A1

PLUG

3шт.

Part of Cam Assembly, not serviced separately

1шт.

44

154641A1

O-RING

1шт.

Part of Cam Assembly, not serviced separately

1шт.

45

167363A1

O-RING

1шт.

Part of Cam Assembly, not serviced separately

1шт.

46

861-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

Screw M6 x 16; 10,9

4шт.

Part of Cam Assembly, not serviced separately

1шт.

47

167411A1

SPOOL

1шт.

Part of Cam Assembly, not serviced separately

1шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

Part of Cam Assembly, not serviced separately

1шт.

49

167395A1

ASSEMBLY

Piston, Consists of: ref. nos. 50-59

1шт.

50

167410A1

PISTON

9шт.

Part of Piston Assembly, P/N 167395A1

1шт.

51

167436A1

CYLINDER BLOCK

Body

1шт.

Part of Piston Assembly, P/N 167395A1

1шт.

52

167426A1

COTTER PIN

3шт.

Part of Piston Assembly, P/N 167395A1

1шт.

53

167425A1

RING

Retaining

1шт.

Part of Piston Assembly, P/N 167395A1

1шт.

54

167438A1

PLATE

1шт.

Part of Piston Assembly, P/N 167395A1

1шт.

55

167437A1

GUIDE

1шт.

Part of Piston Assembly, P/N 167395A1

1шт.

56

167419A1

COMPRESSION SPRING

1шт.

Part of Piston Assembly, P/N 167395A1

1шт.

57

167403A1

SPRING SEAT

1шт.

Part of Piston Assembly, P/N 167395A1

1шт.

58

167402A1

SPRING SEAT

1шт.

Part of Piston Assembly, P/N 167395A1

1шт.

59

800-2140

SNAP RING,M40, Int

1шт.

Part of Piston Assembly, P/N 167395A1

1шт.

Выбрано товаров: 115
