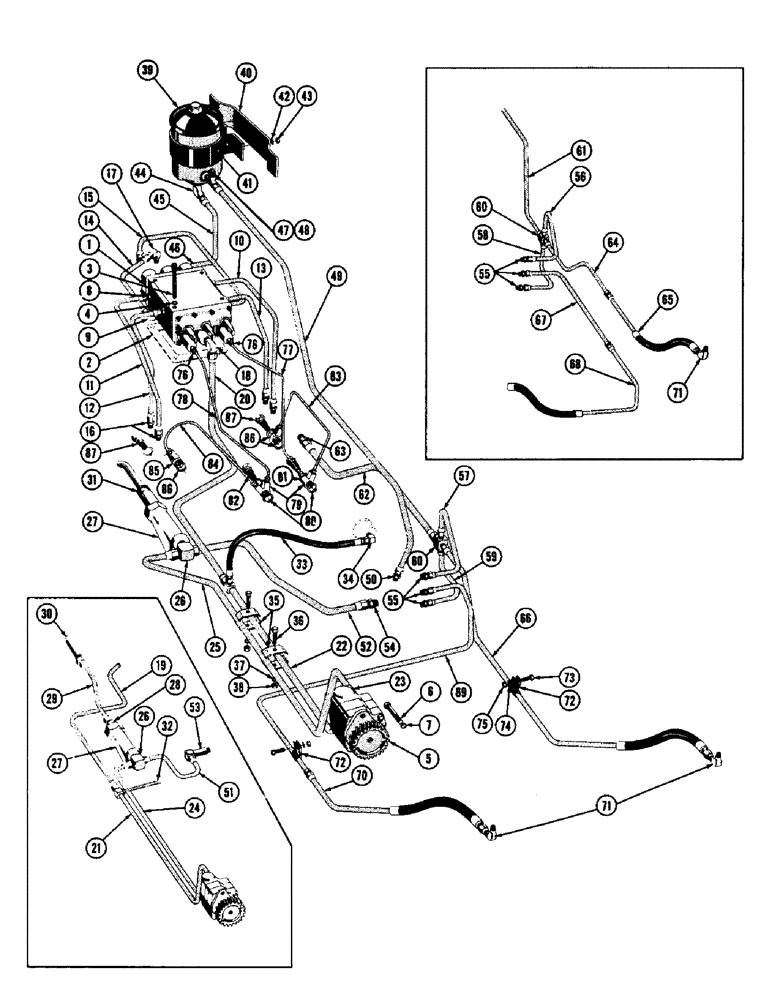

Запчасти Case 600 (092) - HYDRAULIC SYSTEM, PUMP, VALVE, TUBING, BRAKE LINES, FITTINGS. (USED UP TO S/N 6-22-56) (07) - HYDRAULIC SYSTEM

1

31282

SPARE PART VALVE ASSY. - transmission control (See figure #288 for breakdown), hydraulic system

1шт.

2

REF

INSTRUCTION

GASKET - valve mt'g. (See page #64, ref. #49), transmission hydraulic system

1шт.

3

47556

CHAIN

SHCS 3/8-24 NF x 4-1/2 (31282 mt'g.), transmission hydraulic system

4шт.

4

92-6

LOCK WASHER,3/8"

(48446), transmission hydraulic system

4шт.

5

33153

HYDRAULIC PUMP

ASSY (See figure #280 for breakdown), transmission hydraulic system

1шт.

6

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(33153 mt'g.) (45066), transmission hydraulic system

1шт.

7

92-6

LOCK WASHER,3/8"

(48446), transmission hydraulic system

1шт.

8

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50016), transmission hydraulic system

5шт.

9

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50106), transmission hydraulic system

1шт.

10

19187

TUBE ASSY. - valve to transmission (LH) hydraulic system

1шт.

11

19189

TUBE ASSY. - valve to transmission (RH) hydraulic system

1шт.

12

1346622C1

SHAFT

TUBE ASSY. - valve to transmission (RH) hydraulic system

1шт.

13

19188

TUBE ASSY. - valve to transmission (LH) hydraulic system

1шт.

14

1346623C1

SHAFT

TUBE ASSY. - valve to transmission (RH) hydraulic system

1шт.

15

1346588C1

SHAFT

TUBE ASSY. - valve to transmission (LH) hydraulic system

1шт.

16

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50016), transmission hydraulic system

5шт.

17

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50106), transmission hydraulics system

1шт.

18

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Male, 5/8 JIC to 1/2 NP (50114), transmission hydraulic system

1шт.

19

19165

TUBE ASSY. - valve to pump (Used up to S/N 1-22-56), transmission hydraulic system

1шт.

20

33519

SPARE PART TUBE ASSY. - valve to pump (Used from S/N 1-22-56), transmission hydraulic system

1шт.

21

19614

TUBE ASSY. - valve to pump (Used up to S/N 1-22-56), transmission hydraulic system

1шт.

22

33518

GUARD

TUBE ASSY. - valve to pump (Used from S/N 1-22-56), transmission hydraulic system

1шт.

23

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

Male, 5/8 JIC to 3/4 NP (50038), transmission hydraulic system

2шт.

24

19161

TUBE ASSY. - pump to tee (Used up to S/N 2-6-56), transmission hydraulic system

1шт.

25

33491

SPARE PART TUBE ASSY. - pump to tee (Used from S/N 2-6-56), transmission hydraulic system

1шт.

26

50234

TEE - male run, 3/4 NP to 5/8 JIC, transmission hydraulic system

1шт.

27

16125

HOSE

STRAINER ASSY. - hydraulic transmission system

1шт.

28

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

Male, 3/4 JIC to 3/4 NP (Used up to S/N 2-6-56) (50026), transmission hydraulic system

1шт.

29

19162

TUBE ASSY. - strainer to transmission (Used up to S/N 2-6-56) hydraulic system

1шт.

30

33295

EXTENSION ASSY. - suction line (Used up to S/N 2-6-56), transmission hydraulic system

1шт.

31

33701

EXTENSION ASSY. - suction line (Used up to S/N 2-6-56), transmission hydraulic system

1шт.

32

19241

TUBE ASSY. - tee to oil pressure gauge (Used up to S/N 2-6-56), transmission hydraulic system

1шт.

33

33727

HOSE

ASSY. - tee to oil pressure gauge (Used from S/N 2-6-56), transmission hydraulic system

1шт.

34

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

1/4 JIC to 1/8 NP (50162), transmission hydraulic system

1шт.

35

32978

PLATE ASSY.

CLAMP - tube (33518 & 33491 mt'g.), transmission hydraulic system

4шт.

36

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

(32978 mt'g.) (45633), transmission hydraulic system

2шт.

37

92-5

LOCK WASHER,5/16"

(48445), transmission hydraulic system

2шт.

38

25-115

NUT,5/16"-24, G5

Reg. SF hex (48101), transmission hydraulic system

2шт.

39

31176

SPARE PART FILTER ASSY. - hydraulic oil (See figure #104 for breakdown) (Used from S/N 2-6-56), system

1шт.

40

33368

BUSHING

BRACKET ASSY. - filter mt'g. (Used from S/N 2-6-56), oil system

1шт.

41

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(31176 mt'g.) (Used from S/N 2-6-56) (45629), oil filter system

2шт.

42

92-5

LOCK WASHER,5/16"

(Used from S/N 2-6-56) (48445), oil filter system

2шт.

43

25-115

NUT,5/16"-24, G5

Reg. SF hex (Used from S/N 2-6-56) (48445), oil filter system

2шт.

44

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

Male, to 1/4 SAE (Used from S/N 2-6-56) (50464), oil filter system

1шт.

45

19273

TUBE ASSY. - oil filter to transmission (Used from S/N 2-6-56), system

1шт.

46

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

Male, to 1/4 SAE (Used from S/N 2-6-56) (50464), oil filter system

1шт.

47

50499

TEE - pipe, 1/8 NP to 1/4 JIC (Used from S/N 2-6-56), converter hydraulic sheild

1шт.

48

NLS

NO LONGER SERVICED

PLUG - pipe, sq. hd., 1/8 NP (Used from S/N 2-6-56), converter hydraulic system

1шт.

49

19274

TUBE ASSY. - oil filter to torque converter (Used from S/N 2-6-56), hydraulic system

1шт.

50

50450

X

CONNECTOR - male, 1/8 NP to 1/4 SAE (Used from S/N 2-6-56)

1шт.

51

19163

TUBE ASSY. - tee to torque converter (Used up to S/N 2-6-56)

1шт.

52

33493

TUBE ASSY. - tee to torque converter (Used from S/N 2-6-56)

1шт.

53

218-498

SPARE PART ELBOW - extra long male, 5/8 JIC to 1/2 NP (Used up to S/N 2-6-56) (50571) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

54

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Male, 5/8 JIC to 1/2 NP (Used from S/N 2-6-56) (50024)

1шт.

55

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50016)

3шт.

56

19155

TUBE ASSY. - converter to tee (Used up to S/N 2-6-56)

1шт.

57

33414

BRAKE LINING

TUBE ASSY. - converter to tee (Used from S/N 2-6-56)

1шт.

58

19157

SPARE PART TUBE ASSY. - converter to tee (Used up to S/N 2-6-56)

1шт.

59

33415

SPARE PART TUBE ASSY. - converter to tee (Used from S/N 2-6-56)

1шт.

60

218-665

TEE

5/8 JIC to 3/8 JIC (3 outlets)

1шт.

61

19154

TUBE ASSY. - transmission to tee (Used up to S/N 2-5-56)

1шт.

62

33413

TUBE ASSY. - transmission to tee (Used from S/N 2-6-56)

1шт.

63

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

Male, 5/8 JIC to 3/4 NP (50038)

1шт.

64

19156

TUBE ASSY. - tee to 19248 (Used up to S/N 2-6-56)

1шт.

65

19248

HOSE & TUBE ASSY. - 19156 to sump (Used up to S/N 2-6-56)

1шт.

66

33412

SPARE PART HOSE & TUBE ASSY. - tee to sump (Used from S/N 2-6-56)

1шт.

67

19153

TUBE ASSY. - converter to 19232 (Used up to S/N 2-6-56)

1шт.

68

19232

BUSHING

HOSE & TUBE ASSY. - 19153 to sump (Used up to S/N 2-6-56)

1шт.

69

33410

TUBE ASSY. - converter to 33411 (Used from S/N 2-6-56)

1шт.

70

33411

SPARE PART HOSE & TUBE ASSY. - 33410 to sump (Used from S/N 2-6-56)

1шт.

71

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50106)

2шт.

72

33449

CLAMP

Tube (33411 & 33412 mt'g.)

2шт.

73

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

(33440 mt'g.) (45656)

2шт.

74

92-6

LOCK WASHER,3/8"

(48446)

2шт.

75

25-116

NUT,Hex, 3/8"-24, G5

(48102)

2шт.

76

33256

SPACER

FITTING - 3/8-24 NF to 1/8 NF, brake hydraulic system

2шт.

77

33249

PLATE

SPARE PART TUBE ASSY. - valve to master cylinder (LH), brake hydraulic system

1шт.

78

33253

TUBE

SPACER TUBE ASSY. - valve to master cylinder (RH), brake hydraulic system

1шт.

79

51200243

FITTING

Master cylinder, brake hydraulic system

2шт.

80

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

GASKET - inlet connection, brake hydraulic system

2шт.

81

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

Inlet connection, brake hydraulic system

2шт.

82

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake hydraulic system

2шт.

83

NLS

NO LONGER SERVICED

TUBE ASSY. - master cylinder to brake (LH) hydraulic system

1шт.

84

33251

TUBE

KNIFE GUIDE TUBE ASSY. - master cylinder to brake (RH) hydraulic system

1шт.

85

33259

SPARE PART FITTING - brake hydraulic system

2шт.

86

33257

SPACER

GASKET - copper, brake hydraulic system

4шт.

87

33258

KNIFE

SPARE PART BOLT - brake fitting, hydraulic system

2шт.
