Запчасти Case 600 (056) - ENGINE CONTROL SYSTEM, CHOKE, THROTTLE, ACCELERATOR, LINKAGE (USED FROM S/N 9-9-56) (06) - ELECTRICAL SYSTEMS

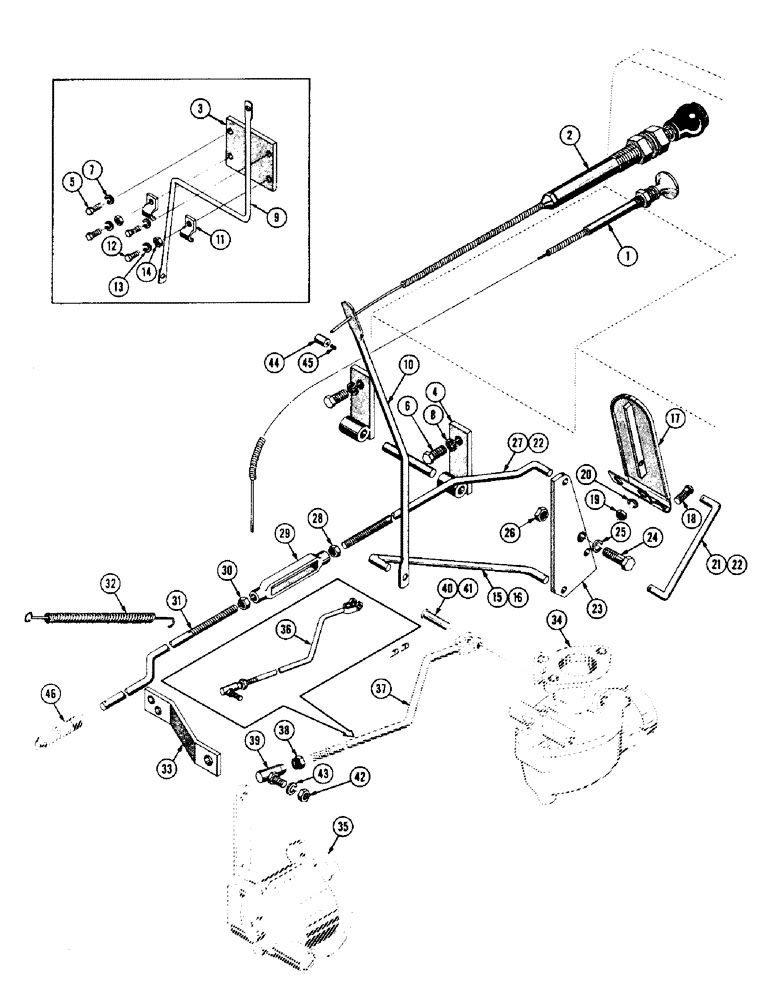

Схема запчастей Case 600 - (056) - ENGINE CONTROL SYSTEM, CHOKE, THROTTLE, ACCELERATOR, LINKAGE (USED FROM S/N 9-9-56) (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

10856

SPARE PART CHOKE ASSY - carburetor control (Used up to S/N 7060799)

1шт.

R11333

SPARE PART CHOKE ASSY - carburetor control (Used from S/N 7060799)

1шт.

2

35312

WASHER

THROTTLE ASSY - hand

1шт.

3

30938

SUPPORT - throttle (Used up to S/N 7060799)

1шт.

4

38194

BRACKET ASSY - pivot shaft (Used from S/N 7060799)

2шт.

5

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

(30938 mt'g.) (Used up to S/N 7060799)

2шт.

6

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(38194 mt'g.) (Used from S/N 7060799)

2шт.

7

92-4

LOCK WASHER,1/4"

(Used up to S/N 7060799) (48444)

2шт.

8

92-5

LOCK WASHER,5/16"

(Used from S/N 7060799) (48445)

2шт.

9

35638

CRANK - throttle (Used up to S/N 7060799)

1шт.

10

D20437

SPARE PART PIVOT ARM ASSY - (Used from S/N 7060799)

1шт.

11

49788

WINDGUARD

CLAMP - (35638 mt'g.) (Used up to S/N 7060799)

2шт.

12

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

(49788 mt'g.) (Used up to S/N 7060799)

2шт.

13

92-4

LOCK WASHER,1/4"

(Used up to S/N 7060799) (48444)

2шт.

14

25-114

NUT,1/4"-28, G5

Reg. SF hex (Used up to S/N 7060799)

2шт.

15

132-26

COTTER PIN

LINK - crank to bell, Serial Range: crank-bellcrank

1шт.

16

132-26

COTTER PIN

3/32" x 3/4" (48683)

2шт.

17

31267

PEDAL ASSY - accelerator

1шт.

18

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

(31267 mt'g.)

2шт.

19

129-7

NUT,Hex, #10 - 24

Reg. SF hex

2шт.

20

92-3

LOCK WASHER,#10

2шт.

21

32226

DECAL

ROD -, Serial Range: accelerator-bellcrank

1шт.

22

132-26

COTTER PIN

3/32" x 3/4" (48683)

3шт.

23

36783

SPARE PART CRANK ASSY - reversing

1шт.

24

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

(36783 mt'g.) (45658)

1шт.

25

92-6

LOCK WASHER,3/8"

(48446)

1шт.

26

25-116

NUT,Hex, 3/8"-24, G5

(48102)

1шт.

27

32602

SPARE PART LINK -, Serial Range: bellcrank-turnbuckle

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

Reg. SF hex (47801)

1шт.

29

49785

TURNBUCKLE

(RH & LH threads)

1шт.

30

129-302

SPARE PART Reg. SF hex (5/16-18 NC)

1шт.

31

32603

SPARE PART LINK -, Serial Range: turnbuckle-governor

1шт.

32

32230

X

SPRING - throttle return

1шт.

33

60659

GUIDE - throttle

1шт.

34

REF

INSTRUCTION

CARBURETOR ASSY - (See page #30, ref.#5)

1шт.

35

REF

INSTRUCTION

GOVERNOR ASSY - (See figure #26 for breakdown)

1шт.

36

10237

SPARE PART ROD ASSY - carburetor control

1шт.

37

NSS

NOT SOLD SEPARAT

ROD - carburetor control

1шт.

38

25-114

NUT,1/4"-28, G5

Reg. SF hex (48100)

1шт.

39

11565

SPARE PART JOINT - ball, control rod

1шт.

40

30421

PIN - governor yoke end

1шт.

41

10238

BUSHING

PIN - cotter

1шт.

42

25-114

NUT,1/4"-28, G5

Reg. SF hex (48100)

1шт.

43

92-4

LOCK WASHER,1/4"

(48444)

1шт.

44

34823

CHAIN LINK

STOP - pivot

1шт.

45

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

(34823 mt'g.)

1шт.

46

REF

INSTRUCTION

SPRING ASSY - governor

1шт.

Выбрано товаров: 47
