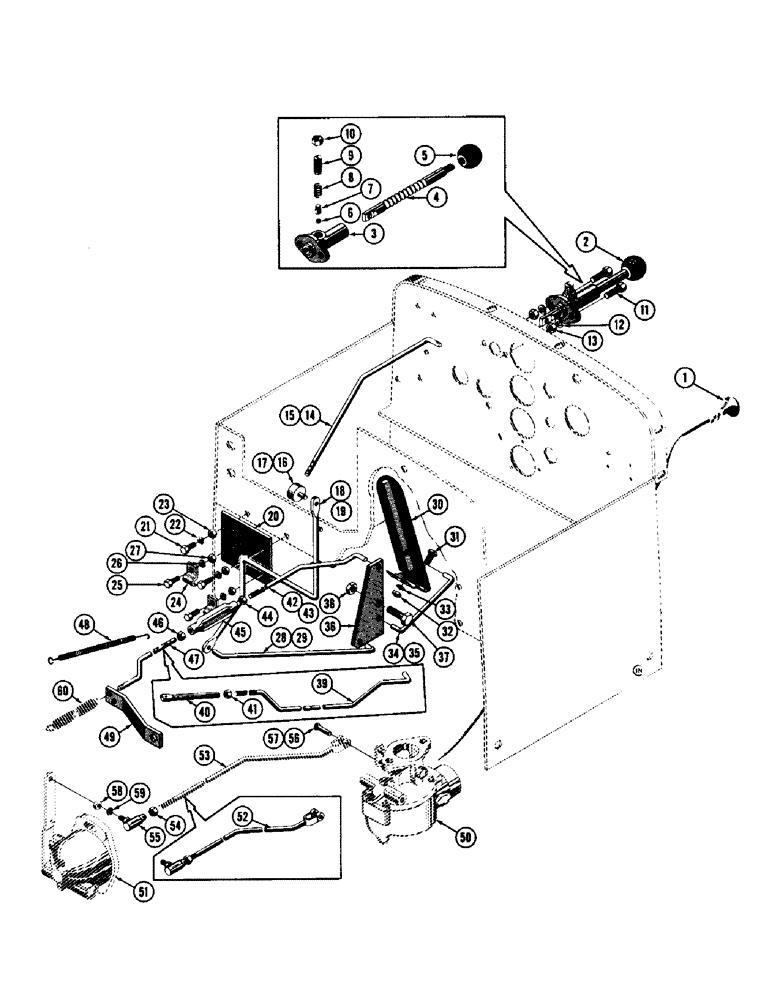

Запчасти Case 600 (054) - ENGINE CONTROL SYSTEM, CHOKE, THROTTLE, ACCELERATOR, LINKAGE (USED UP TO S/N 9-9-56) (06) - ELECTRICAL SYSTEMS

1

10856

SPARE PART CHOKE ASSY - carburetor control

1шт.

2

7359

X

THROTTLE ASSY - hand

1шт.

3

31898

STUD

BEARING - throttle

1шт.

4

32416

SEAL

SHAFT - hand throttle

1шт.

5

CAS31375

KNOB

BALL - grip

1шт.

6

32421

SPARE PART BALL - throttle control

1шт.

7

32417

PISTON

POPPET - throttle control

1шт.

8

30918

NUT

SPRING - poppet

1шт.

9

30917

SPARE PART CONTAINER - poppet

1шт.

10

25-159

JAM NUT,Jam, 9/16"-18, G5

(48194)

1шт.

11

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

(7359 mt'g.) (45631)

2шт.

12

92-5

LOCK WASHER,5/16"

(48445)

2шт.

13

25-115

NUT,5/16"-24, G5

(484101)

2шт.

14

31979

ROD - throttle slide

1шт.

15

132-44

COTTER PIN,1/8" x 1/2"

(48692)

1шт.

16

32794

PIN

SWIVEL - throttle

1шт.

17

132-44

COTTER PIN,1/8" x 1/2"

(48692)

1шт.

18

30935

CRANK - throttle

1шт.

19

132-24

COTTER PIN,3/32" x 1/2"

(48681)

1шт.

20

30938

SUPPORT - throttle

1шт.

21

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

30938 mt'g.) (45604)

2шт.

22

92-4

LOCK WASHER,1/4"

(48444)

2шт.

23

25-114

NUT,1/4"-28, G5

(48100)

2шт.

24

49788

WINDGUARD

CLAMP - throttle crank

2шт.

25

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

(49788 mt'g.) (45604)

2шт.

26

92-4

LOCK WASHER,1/4"

(48444)

2шт.

27

25-114

NUT,1/4"-28, G5

Reg. SF hex (48100)

2шт.

28

32227

LINK - crank to accelerator linkage

1шт.

29

132-44

COTTER PIN,1/8" x 1/2"

(48692)

2шт.

30

31267

PEDAL ASSY - accelerator

1шт.

31

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

(31267 mt'g.) (46909)

2шт.

32

129-7

NUT,Hex, #10 - 24

Reg. SF hex

2шт.

33

92-3

LOCK WASHER,#10

2шт.

34

32226

DECAL

ROD - connecting, Serial Range: acc.-bellcrank

1шт.

35

132-28

COTTER PIN,3/32" x 1"

(48685)

2шт.

36

33275

SPARE PART HHCS 3/8-24 NF x 1-1/2 (33275 mt'g.) (45658)

1шт.

37

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

(33275 mt'g.) (45658)

1шт.

38

25-116

NUT,Hex, 3/8"-24, G5

(48102)

1шт.

39

32228

RICE TOOTH

LINK - bellcrank to governor (Used up to S/N 11-29-55)

1шт.

40

32531

TUBE - adjusting (Used up to S/N 11-29-55)

1шт.

41

25-115

NUT,5/16"-24, G5

Reg. SF hex (Used up to S/N 11-29-55)

1шт.

42

32602

SPARE PART LINK - bellcrank to turnbuckle (Used from S/N 11-29-55)

1шт.

43

132-44

COTTER PIN,1/8" x 1/2"

(48692)

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

Reg. SF hex (Used from S/N 11-29-55)

1шт.

45

49785

TURNBUCKLE

(RH & LH threads) (Used from S/N 11-29-55)

1шт.

46

129-302

SPARE PART (5/16-18 NC) (Used from S/N 11-29-55)

1шт.

47

32603

SPARE PART LINK - turnbuckle to governor (Used from S/N 11-29-55)

1шт.

48

32230

X

SPRING - throttle return

1шт.

49

60659

GUIDE - throttle

1шт.

50

REF

INSTRUCTION

CARBURETOR ASSY - (See page #30, ref. #5)

1шт.

51

REF

INSTRUCTION

GOVERNOR ASSY - (See figure #26 for breakdown)

1шт.

52

10237

SPARE PART ROD ASSY - carburetor control

1шт.

53

NSS

NOT SOLD SEPARAT

ROD - carburetor control

1шт.

54

25-114

NUT,1/4"-28, G5

Reg. SF hex (48100)

1шт.

55

11565

SPARE PART JOINT - ball, control rod

1шт.

56

30421

PIN - governor yoke end

1шт.

57

10238

BUSHING

PIN - cotter

1шт.

58

25-114

NUT,1/4"-28, G5

(48100)

1шт.

59

92-4

LOCK WASHER,1/4"

(48444)

1шт.

60

NS

NOT SERVICED

SPRING ASSY - governor

1шт.
