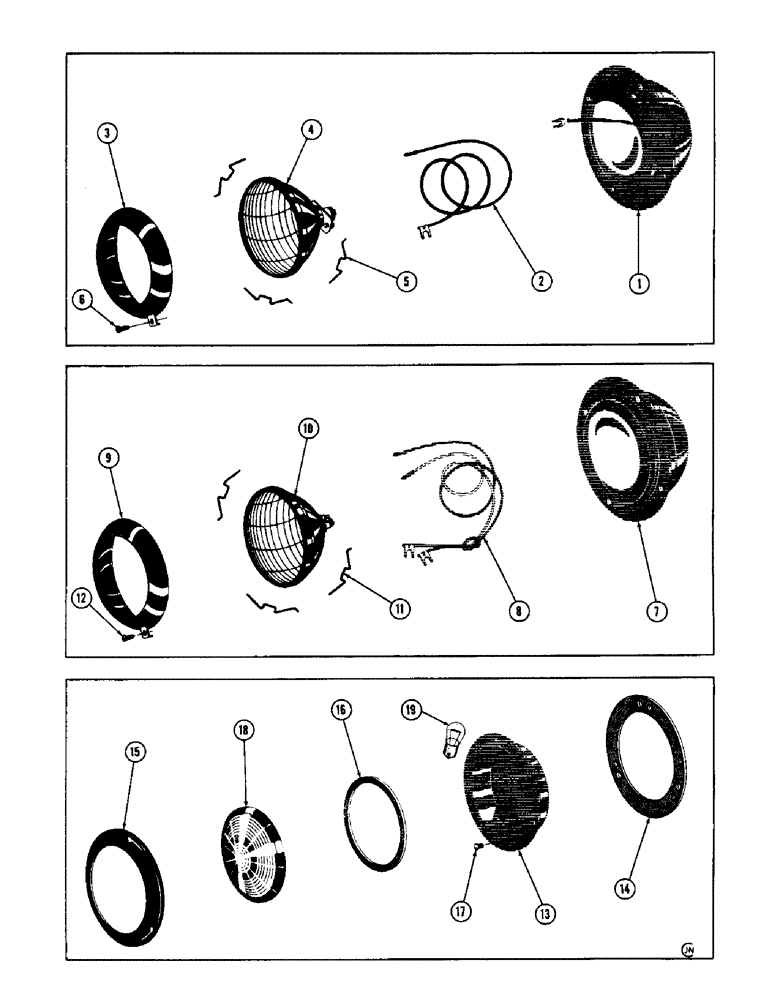

Запчасти Case 600 (050) - HEAD AND TAIL LIGHTS, HOUSINGS, SEALED BEAMS, BULBS, LENS (06) - ELECTRICAL SYSTEMS

NLS

NO LONGER SERVICED

LIGHT ASS'Y. - head & tail (Obsolete)

2шт.

1

NSS

NOT SOLD SEPARAT

BODY ASS'Y. - light

1шт.

2

32492

GEAR

WIRE ASS'Y. - light

1шт.

3

32495

GEAR

DOOR ASS'Y. - light

1шт.

4

A-11280

UNIT ASSY. - sealed (30757)

1шт.

5

32496

GEAR

SPRING - unit retaining

3шт.

6

32491

CLUTCH

SCREW - door retaining

1шт.

37898

DRIVE BUSHING

LIGHT ASS'Y. - head (Used from serial #7060799)

2шт.

7

NSS

NOT SOLD SEPARAT

BODY ASS'Y. - head light

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE ASS'Y. - head light

1шт.

9

73772

DOOR ASS'Y. - head light

1шт.

10

R-11869

UNIT ASS'Y. - sealed

1шт.

11

32496

GEAR

SPRING - unit retaining

3шт.

12

73768

SCREW - door retaining

1шт.

35567

LIGHT ASS'Y. - tail (Used from serial #7060799)

2шт.

13

NSS

NOT SOLD SEPARAT

BODY ASS'Y. - tail light

1шт.

14

35651

GASKET -tail light

1шт.

15

35649

DOOR - tail light

1шт.

16

35653

GASKET - door

1шт.

17

46959

SHEAR BAR

RHMS #8-32 x 3/16 (35649 mt'g.)

3шт.

18

35654

STEERING TIE-ROD

LENS - tail light

1шт.

19

33685

BULB - tail light

1шт.
