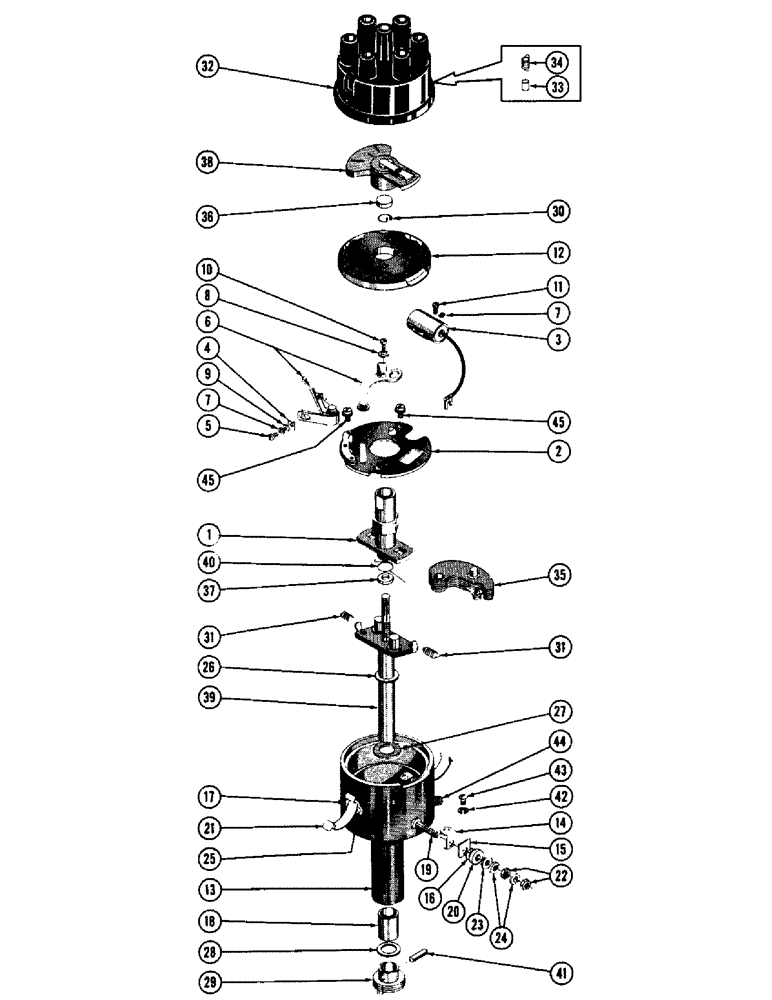

Запчасти Case 600 (048) - 10231 DISTRIBUTOR ASSEMBLY (AUTO-LITE #IAD-6002-IG) (06) - ELECTRICAL SYSTEMS

10231

DISTRIBUTOR ASS'Y.

1шт.

All part numbers listed above except 10231 must be obtained from an Auto-Lite Service Station.

1шт.

1

IAD-1100LH

CAM & STOP PLATE - 6 cyl. L.H.

1шт.

IAD-2004

PLATE ASS'Y. - breaker

1шт.

2

IAD-1004

PLATE - breaker

1шт.

3

IBB-2042SS-1

CONDENSER PACKAGE

1шт.

4

IG-676

CLIP - spring, contact arm

1шт.

5

IGC-175

HHCS #6-32 x 5/16, breaker spring clamp

1шт.

6

IGP-3028FS

CONTACT SET - breaker

1шт.

7

12X-194

WASHER - lock, condenser & clamp mt'g., #6

2шт.

8

8X-350

WASHER - plain, contact lock mt'g., #8

1шт.

9

8X-353

WASHER - plain, clamp mt'g., #6

1шт.

10

8X-884

SCREW - lock, fill. hd., #8-32 x 3/16, breaker mt'g.

1шт.

11

8X-1546

SCREW - fill. hd., #6-32 x 5/32, condenser mt'g.

1шт.

12

IAD-2015

PLATE ASS'Y. - seal

1шт.

IAD-12

WASHER - felt (Not shown)

1шт.

13

IAD-2020

BASE ASS'Y. - distributor

1шт.

14

IAD-7

CONNECTOR - terminal stud

1шт.

15

IAD-8

INSULATION - terminal stud inner

1шт.

IAD-9

BRACKET - breaker plate mt'g. (Not shown)

2шт.

16

IAD-10

BUSHING - insulation, terminal stud

1шт.

17

IAD-14

BRACKET - cap spring

2шт.

18

IG-579A

BEARING - absorbent bronze

2шт.

19

IGL-8A

STUD - terminal, primary

1шт.

20

IGL-9

WASHER - insulation, terminal stud

1шт.

21

IGZ-9

SPRING - clamp, cap

2шт.

22

8X-173

NUT - hex terminal stud (#10-32)

2шт.

23

8X-183A

WASHER - plain, terminal stud, #10

1шт.

24

12X-196

WASHER - lock, terminal stud, #10

2шт.

25

X-525

RIVET - tubular

2шт.

26

IAO-10

WASHER - thrust, inner, drive shaft, upper

1шт.

27

IAO-11

WASHER - thrust, outer, drive shaft, upper

1шт.

28

IG-90

WASHER - thrust, drive shaft, lower

1шт.

IG-94

TERMINAL - T.H. wire (Not shown)

7шт.

29

IG-644A

COUPLING - distributor drive

1шт.

30

IG-680

RING - snap, cam retaining

1шт.

31

IGB-327FS

SPRING - set, governor weight

1шт.

32

IGC-1107S

CAP ASS'Y. - distributor

1шт.

33

IG-514

CONTACT - plunger

1шт.

34

IG-515A

SPRING - contact

1шт.

35

IGC-2168L

WEIGHT - governor

2шт.

36

IGH-28

WICK - felt, cam, sleeve

1шт.

IGS-32

PLUG - vent hole, rubber (Not shown)

1шт.

37

IGS-99

SPACER - cam

1шт.

IGS-117

WICK - felt (Not shown)

1шт.

38

IGS-1016B

ROTOR

1шт.

39

IGS-1053LE

SHAFT - drive

1шт.

40

IGT-69

SPRING - anti-rattle

1шт.

41

SW-213

RIVET - coupling

1шт.

42

12X-194

WASHER - lock, connector mt'g., #6

1шт.

43

8X-301

SCREW - round hd., #6-32 x 3/16, connector

1шт.

44

X-490A

OILER

1шт.

45

X-2878

SCREW - fill, hd., #10-32 x 5/16, breaker plate mt'g.

2шт.
