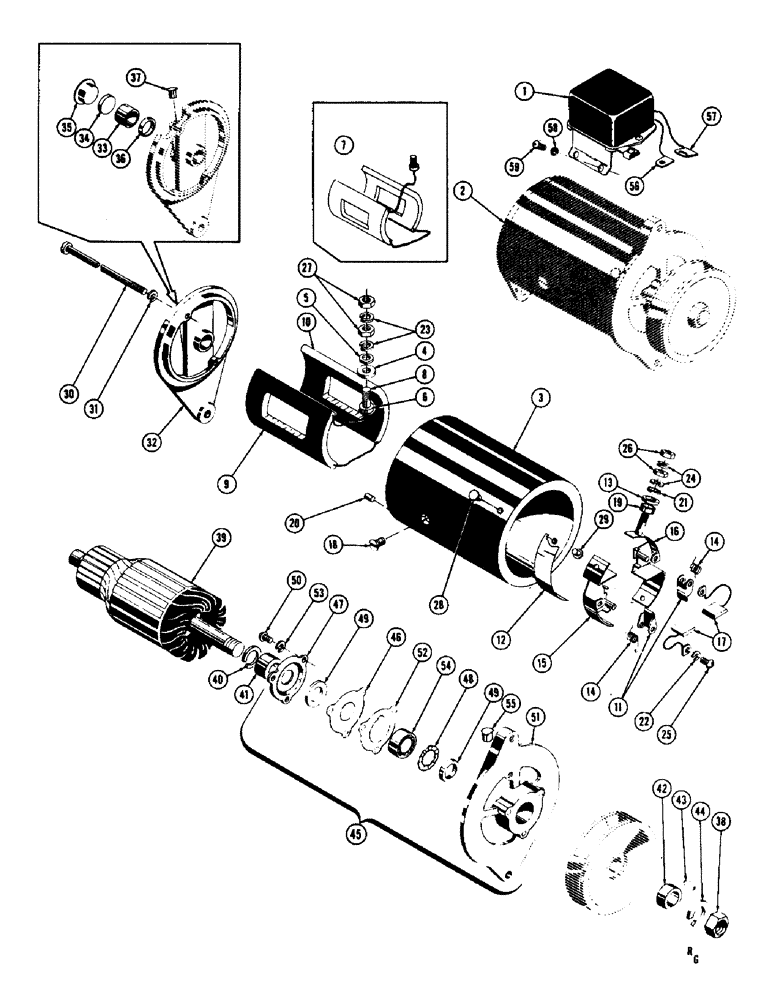

Запчасти Case 600 (046) - 17376 GENERATOR ASSEMBLY (AUTO-LITE #GJK-7001S), (USED FROM S/N 7060500) (06) - ELECTRICAL SYSTEMS

17376

GENERATOR ASS'Y.

1шт.

All part numbers except 17376 and 10019 must be obtained from an Auto-Lite service station.

1шт.

1

10019

X

REGULATOR ASS'Y. - voltage (Auto-Lite #VRR-4021A)

1шт.

All part numbers except 17376 and 10019 must be obtained from an Auto-Lite service station.

1шт.

2

NSS

NOT SOLD SEPARAT

GENERATOR ASS'Y.

1шт.

3

GJK-2001

FRAME & FIELD ASS'Y.

1шт.

4

GGU-30

WASHER - insulation, field terminal

1шт.

5

GGU-31

WASHER - plain

1шт.

6

GGU-32

BUSHING - insulation, field, comp.

1шт.

7

GGW-1005D

COIL ASS'Y. - field, comp

1шт.

8

GGU-27

STUD - field terminal, #10-32

1шт.

9

GGW-1007E

COIL - field, right

1шт.

10

GGW-1008E

COIL - field, left

1шт.

11

GJC-35

ARM - brush

2шт.

12

GJC-39

INSULATION - brush holder

1шт.

13

GJC-41

BUSHING - insulation, arm term

1шт.

14

GJC-42

SPRING - brush

2шт.

15

GJC-1033

HOLDER - grd. brush

1шт.

16

GJC-1034

HOLDER & TERMINAL - ins. brush

1шт.

17

GJC-2012BS

BRUSH SET

1шт.

18

GK-38

SCREW - pole shoe

2шт.

19

MDF-25

BUSHING - insulation brush holder screw

1шт.

20

MN-21

PIN - dowel

2шт.

21

SW-634

WASHER - plain, armature terminal

1шт.

22

12X-195

WASHER - lock, brush lead mt'g., #8

2шт.

23

12X-196

WASHER - lock, field terminal, #10

2шт.

24

12X-199

WASHER - lock, armature terminal, 1/4

2шт.

25

8X-305

SCREW - round head, #8-32 x 1/4, brush lead

2шт.

26

8X-1063

NUT - hex, armature terminal (1/4-28 NF)

2шт.

27

8X-1377

NUT - hex, field terminal (#10-32)

2шт.

28

8X-3280

RIVET - grd. brush hold

2шт.

29

8X-3284

RIVET - insulation brush holder

1шт.

30

MW-20A

BOLT - thru

2шт.

31

12X-199

WASHER - lock, thru bolt, 1/4

2шт.

32

GJC-204

HEAD ASS'Y. - comm. end

1шт.

33

GJC-38

BEARING - absorbant bronze

1шт.

34

GJC-46

WICK - felt

1шт.

35

GJC-49

COVER - bearing, comm. end

1шт.

36

GJK-1020

RETAINER - oil

1шт.

37

X-3326

OILER

1шт.

38

GMB-21B

NUT - armature shaft, drive end

1шт.

39

GDA-2018F

ARMATURE ASS'Y.

1шт.

40

GAR-171

RING - snap

1шт.

41

GEG-55

SPACER - shaft, drive end, inner

1шт.

42

PU-218

SPACER - shaft, drive end, outer

1шт.

43

X-260

KEY - #5 Woodruff

1шт.

44

12X-864

WASHER - lock, drive end, shaft

1шт.

45

GGW-1102A

HEAD ASS'Y. - drive end

1шт.

46

GBM-125

RETAINER - felt washer, inner

1шт.

47

GBM-127

RETAINER - bearing

1шт.

48

GBM-128

RETAINER - felt washer, outer

1шт.

49

GG-164A

WASHER - felt

2шт.

50

GGW-52

SCREW - round hd., #10-32 x 1/2., retainer

3шт.

51

GGW-102

HEAD - drive end

1шт.

52

GJK-9

GASKET

1шт.

53

12X-196

WASHER - lock, retainer mt'g., 310

3шт.

54

X-295

BEARING - ball, SAE #203

1шт.

55

X-2961

OILER

1шт.

56

GHD-30A

LEAD ASS'Y. - armature terminal

1шт.

57

GHD-33A

LEAD ASS'Y. - field terminal

1шт.

58

12X-196

WASHER - lock, regulator mt'g., #10

3шт.

59

8X-321

SCREW - round hd., #10-32 x 5/16, regulator mt'g.

3шт.
