Запчасти Case 600 (042) - 11239 STARTER AND SOLENOID ASSEMBLY. (AUTO-LITE #MAW-4039) (06) - ELECTRICAL SYSTEMS

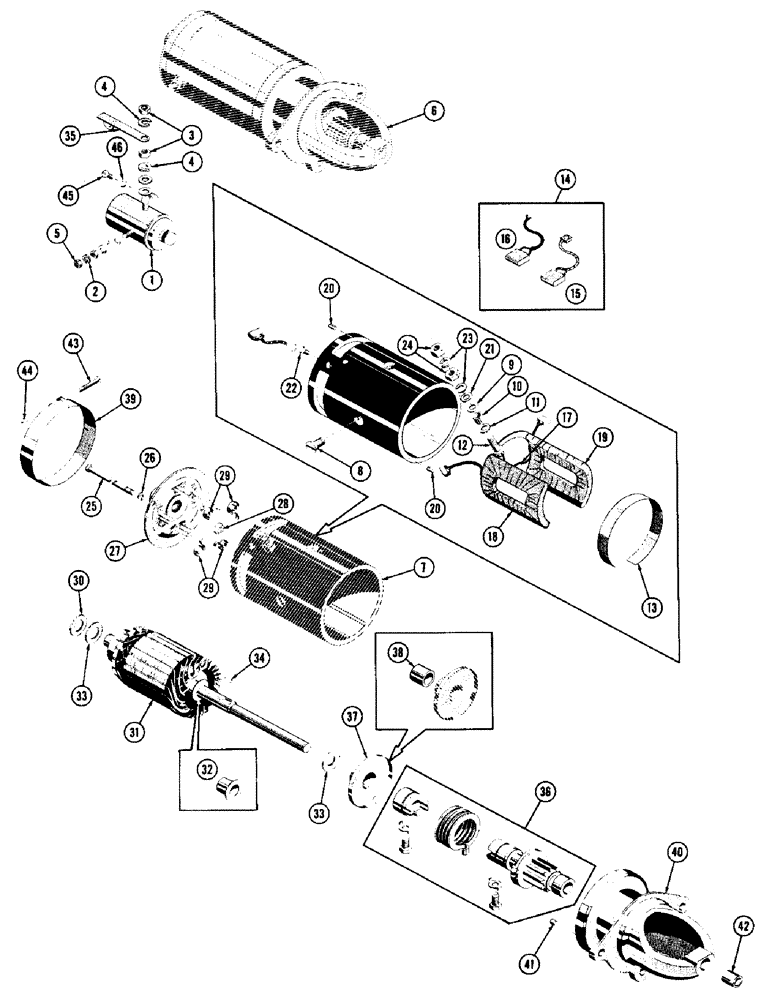

Схема запчастей Case 600 - (042) - 11239 STARTER AND SOLENOID ASSEMBLY. (AUTO-LITE #MAW-4039) (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

11239

PLATE

STARTER & SOLENOID ASS'Y.

1шт.

All part numbers except 11239, and 10595 must be obtained from an Auto-Lite service station.

1шт.

1

A25802

SOLENOID

ASS'Y. - (Auto-Lite #SS-4001)

1шт.

All part numbers except 11239, and 10595 must be obtained from an Auto-Lite service station.

1шт.

2

12X-196

WASHER - lock, #10

1шт.

3

8X-832

NUT - hex, 5/16-24 NF

2шт.

4

12X-1014

WASHER - lock, 5/16

2шт.

5

8X-173

NUT - hex, #10-32

1шт.

6

NSS

NOT SOLD SEPARAT

STARTER ASS'Y.

1шт.

7

NSS

NOT SOLD SEPARAT

FRAME & FIELD ASS'Y.

1шт.

8

GK-38

SCREW - pole shoe

4шт.

9

MAB-31

WASHER - insulation, terminal stud, outer

1шт.

10

MAB-85

BUSHING - insulation, terminal stud

1шт.

11

MAK-80

WASHER - insulation, terminal stud, inner

1шт.

12

MAT-28

STUD - terminal

1шт.

13

MAT-30

INSULATION - field conn

1шт.

14

MAW-2012S

BRUSH SET - service

1шт.

15

MAW-12

BRUSH

2шт.

16

MAW-13

BRUSH - grounded

2шт.

17

MAW-59

EQUALIZER

1шт.

18

MAW-1009

COIL - field, left

1шт.

19

MAW-1010

COIL - field, right

1шт.

20

MN-21

PIN - dowel

2шт.

21

MU-37

WASHER - plain, terminal stud, 5/16

1шт.

22

8X-61

SCREW - flat head, brush ground, #10-32 x 7/16

2шт.

23

X-1014

WASHER - lock, terminal stud

2шт.

24

8X-1376

NUT - hex, terminal stud, 5/16-24 NF

2шт.

25

MW-20A

BOLT - thru

2шт.

26

X-199

WASHER - lock, thru bolt

2шт.

27

MAW-2002F

HEAD ASS'Y. - comm. end

1шт.

28

MAD-110

FELT

1шт.

29

MZ-19

SPRING - brush

4шт.

30

MAK-61

WASHER - armature thrust, comm. end

1шт.

31

MAW-2063

ARMATURE ASS'Y.

1шт.

32

MAB-35

SPACER - armature shaft

1шт.

33

MU-54

WASHER - armature thrust, C. E. & intermediate

2шт.

34

X-261

KEY - #6 Woodruff

1шт.

35

MAW-66R

CONNECTOR - switch

1шт.

36

EB-87

DRIVE ASS'Y. - bendix

1шт.

37

MAB-2040

BEARING ASS'Y. - intermediate

1шт.

38

MG-77A

BEARING - absorbant bronze

1шт.

39

MAW-24

BAND - cover

1шт.

40

PS-1249

HOUSING ASS'Y. - pinion

1шт.

41

MAB-88

PIN - dowel

1шт.

42

MP-41A

BEARING - absorbant bronze

1шт.

43

X-714

SCREW - round hd., #10-32 x 1-1/2, cover band

1шт.

44

8X-794

NUT - square, cover band, #10-32

1шт.

45

8X-321

SCREW - round head, solenoid mt'g., #10-32 x 5/16

2шт.

46

X-1270

WASHER - Shakeproof, solenoid mt'g., #10

2шт.

Выбрано товаров: 49
