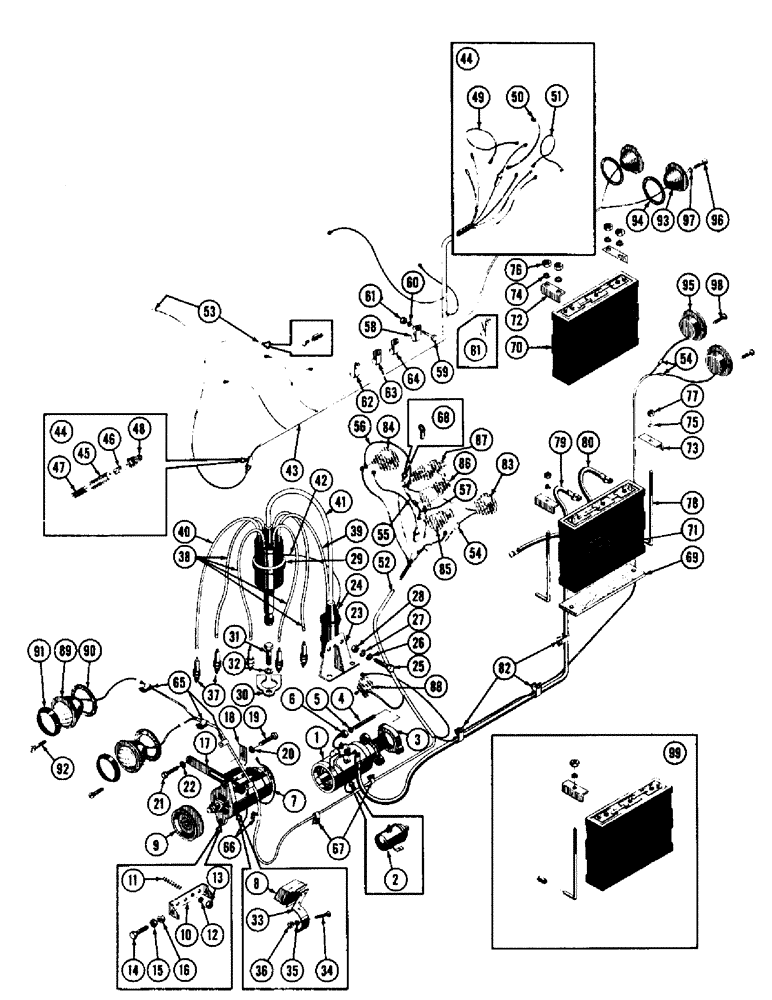

Запчасти Case 600 (038) - ELECTRICAL SYSTEM, STARTER, GENERATOR, BATTERY, LIGHTS, WIRING (06) - ELECTRICAL SYSTEMS

1

11239

PLATE

STARTER & SOLENOID ASSY - (See figure #42 for breakdown)

1шт.

NSS

NOT SOLD SEPARAT

STARTER ASSY

1шт.

2

A25802

SOLENOID

SOLENOID ASSY

1шт.

3

11482

SPACER - starter

1шт.

4

31174

SPARE PART STUD 3/8-16 NC x 2-1/2 (11482 & 11239 mt'g.)

3шт.

5

92-6

LOCK WASHER,3/8"

(48446)

3шт.

6

30438

X

NUT NUT - hex (3/8-16 NC)

3шт.

7

30455

X

GENERATOR ASSY - (Used up to S/N 7060500) (See figure #44 for breakdown)

1шт.

17376

SPARE PART GENERATOR ASSY - (Used from S/N 7060500) (See figure #46 for breakdown)

1шт.

NSS

NOT SOLD SEPARAT

GENERATOR ASSY

1шт.

104449A1R

REMAN-GENERATOR

Remanufactured Generator, 6 volt 35 ampere

1шт.

104449A1C

CORE-GENERATOR

Return Number, Generator, 6 volt 35 ampere

1шт.

8

10019

X

VOLTAGE REGULATOR REGULATOR ASSY - voltage

1шт.

9

30454

PULLEY - generator (Used up to S/N 7060500)

1шт.

17377

PULLEY - generator (Used from S/N 7060500)

1шт.

10

10027

BRACKET - generator

1шт.

11

REF

INSTRUCTION

STUD 3/8-16 NC x 1-1/4 (10027 mt'g.) (See figure #10, ref. #32)

4шт.

12

92-6

LOCK WASHER,3/8"

(48446)

4шт.

13

30438

X

NUT NUT - hex (3/8-16 NC)

4шт.

14

10033

SPARE PART SCREW 5/16-24 NF x 1-1/8 (Generator mt'g.)

2шт.

15

48161

SPARE PART (5/16-24 NF)

2шт.

16

10220

NUT - pal, 5/16

2шт.

17

10226

STRAP - generator adjusting

1шт.

18

30360

SPARE PART CLIP - gen. adjusting strap

1шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(10226 mtg.) (45031)

1шт.

20

92-6

LOCK WASHER,3/8"

WASHER - heavy sec. lock

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(10226 mt'g.) (45056)

1шт.

22

92-6

LOCK WASHER,3/8"

(48446)

1шт.

23

10034

SUPPORT ASSY - coil

1шт.

24

A7624

X

COIL ASSY

1шт.

25

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(10007 mt'g.) (45002)

2шт.

26

95-4

WASHER,1/4"

(48404)

2шт.

27

92-4

LOCK WASHER,1/4"

(48444)

2шт.

28

47860

NUT - light SF hex (1/4-20 NC)

2шт.

29

10231

SPARE PART ASSY (Auto-Lite #IAD-6002-IG) (See figure #48 for breakdown)

1шт.

30

A10580

TOOL

ARM ASSY - distributor advance

1шт.

31

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

(10580 mt'g.) (45003)

1шт.

32

92-4

LOCK WASHER,1/4"

(10580 mt'g.) (45003)

1шт.

33

1986047C1

CYLINDER,Double Acting, 30mm Rod, 155mm Stroke

BRACKET - voltage regulator (Used up to S/N 11-4-56)

1шт.

34

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

(Voltage reg. mt'g.) (Used up to S/N 11-4-56)

3шт.

35

48502

SHIM

WASHER - lock, Shakeproof (Used up to S/N 11-4-56)

3шт.

36

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

NUT - reg. SF hex (#10-24 NC) (Used up to S/N 11-4-56)

3шт.

37

10008

X

SPARK PLUG SPARK PLUG (AC #84), Serial Range: (Optional-10230)

6шт.

10230

SPARK PLUG (AL #BT8), Serial Range: (Optional-10008)

6шт.

38

10040

CABLE ASSY - spark, Serial Range: plug-distributor

4шт.

39

11240

LARGE PLATE

PLATE, LARGE CABLE ASSY - spark, Serial Range: plug-distributor

1шт.

40

NLS

NO LONGER SERVICED

CABLE ASSY - spark, Serial Range: plug-distributor

1шт.

41

10100

SCREW

CABLE ASSY -, Serial Range: coil-distributor

1шт.

42

10009

WIRE ASSY -, Serial Range: coil-distributor

1шт.

43

32413

SPARE PART HARNESS ASSY - wiring (Used up to S/N 7060799)

1шт.

NSS

NOT SOLD SEPARAT

HARNESS - wiring

1шт.

44

32532

SEAL

KIT - wiring harness

1шт.

45

32533

SPARE PART BODY - fuse

1шт.

46

32534

FUSE

1шт.

47

32535

SPARE PART SPRING - fuse

1шт.

48

32536

SPARE PART CONTACT - fuse

1шт.

49

32537

SPARE PART WIRE - jumper

1шт.

50

32538

BUMPER

WIRE - jumper

1шт.

51

32539

SPARE PART WIRE - jumper

1шт.

52

39154

HARNESS ASSY - wiring (Used from S/N 7060799)

1шт.

53

32395

SEAL ASSY.

BULLET - wiring (Used up to S/N 7060799)

2шт.

54

32395

SEAL ASSY.

BULLET - wiring (Used from S/N 7060799)

5шт.

55

33709

WIRE - jumper (Used from S/N 7060799)

1шт.

56

33706

WIRE - jumper (Used from S/N 7060799)

1шт.

57

NLS

NO LONGER SERVICED

WIRE Jumper (Used from S/N 7060799)

1шт.

58

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

Wiring (Used up to S/N 7060799)

4шт.

59

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(Used up to S/N 7060799)

1шт.

60

92-5

LOCK WASHER,5/16"

(Used up to S/N 7060799)

1шт.

61

25-115

NUT,5/16"-24, G5

Reg. SF hex (Used up to S/N 7060799)

1шт.

62

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Wiring (Used up to S/N 7060799)

2шт.

63

49837

CLAMP

Wiring (Used up to S/N 7060799)

1шт.

64

49876

BUMPER

CLAMP - wiring (Used up to S/N 7060799)

6шт.

65

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

Wiring (Used from S/N 7060799)

3шт.

66

F43611

CLIP

Wiring (Used from S/N 7060799)

2шт.

67

49876

BUMPER

CLAMP - wiring (Used from S/N 7060799)

2шт.

68

54772R2

TERMINAL CONNECTOR

TERMINAL - wiring (Hour meter)

1шт.

69

31466

HOSE

BOARD - battery bottom

1шт.

70

34295

BATTERY (Dry type) (Used up to S/N 7060674)

1шт.

A-8325

BATTERY (Dry type) (Optional to 34295) (Used up to S/N 7060674)

1шт.

O8934AB

BATTERY (Dry type) (Optional to 34295) (Used up to S/N 7060674)

1шт.

71

39721

SPARE PART BATTERY (Dry type) (Used from S/N 7060674)

1шт.

72

31468

HOSE

ANGLE - battery hold-down (Used up to S/N 7060674)

2шт.

73

39720

SPARE PART ANGLE - battery hold-down (Used from S/N 7060674)

2шт.

74

95-6

WASHER,3/8"

(Used up to S/N 7060674) (48406)

4шт.

75

95-5

WASHER,3/8" x 7/8" x .083"

(Used from S/N 7060674) (48405)

2шт.

76

25-102

WASHER

NUT - reg. SF hex (3/8-16 NC) (Used up to S/N 7060674)

4шт.

77

9635082

NUT,5/16" - 18, Gr 5

Reg. SF hex (Used from S/N 7060674)

2шт.

78

33574

SPARE PART BOLT - angle (Used from S/N 7060674)

2шт.

79

32375

CABLE

SPARE PART Battery (Hot)

1шт.

80

60776

CABLE - battery (Ground)

1шт.

81

49836

CLAMP

Battery cable (Used up to S/N 7060799)

3шт.

82

49838

CLAMP

Battery cable (Used from S/N 7060799)

3шт.

83

REF

INSTRUCTION

METER ASSY - hour (See figure #52, ref. #6)

1шт.

84

REF

INSTRUCTION

AMMETER ASSY - (See figure #52, ref. #5)

1шт.

85

REF

INSTRUCTION

SWITCH ASSY - light (See figure #52, ref. #13)

1шт.

86

REF

INSTRUCTION

SWITCH ASSY - push button starter (See figure #52, ref. #15)

1шт.

87

REF

INSTRUCTION

SWITCH ASSY - ignition lock (See figure #52, ref. #14)

1шт.

88

REF

INSTRUCTION

SWITCH ASSY - pressure (See figure #52, ref. #12)

1шт.

89

NLS

NO LONGER SERVICED

LIGHT ASSY - head (Used up to S/N 7060799) (See figure #50 for breakdown) (Order #37898)

2шт.

37898

DRIVE BUSHING

LIGHT ASSY - head (Used from S/N 7060799) (See figure #50 for breakdown)

2шт.

90

NLS

NO LONGER SERVICED

Head light

2шт.

91

31136

SPARE PART RING - headlight mt'g

2шт.

92

73-424

BOLT (MACHINE)

cts'k. head, 1/4-20 NC x 1-1/2 (46922)

8шт.

93

30736

ENGINE

LIGHT ASSY - tail (See figure #50 for breakdown) (Used up to S/N 10-11-56)

2шт.

94

NLS

NO LONGER SERVICED

Tail light (Used up to S/N 10-11-56)

2шт.

95

35567

SPARE PART LIGHT ASSY - tail (See figure #50 for breakdown) (Used from S/N 10-11-56)

2шт.

96

76-48

BOLT (MACHINE)

1/4-28 NF x 1/2 (30736 mt'g.) (Used up to S/N 10-11-56)

8шт.

97

48524

GAUGE

WASHER - lock, Shakeproof (Used up to S/N 10-11-56)

8шт.

98

47736

SEALING RING COLLAR

SCREW -S/N x 3/8 (35567 mt'g.) (Used from S/N 7060915)

6шт.

R-10886

SCREW - self tapping, #8-32 NC x 5/8 (35567 mt'g.) (Used from S/N 7060915)

6шт.

99

19326

X

CONVERSION KIT - for changing from 34295 type battery to 39721 type heavy duty battery

1шт.
