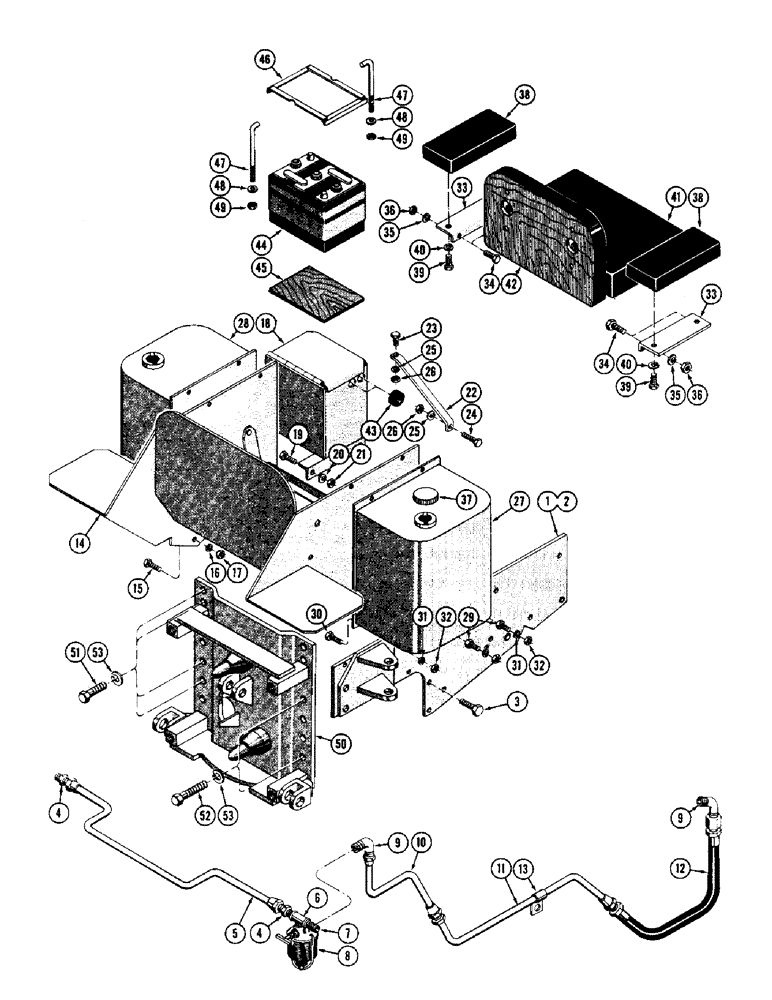

Запчасти Case 600 (252) - TRACTOR MODIFICATION PARTS FOR BACKHOE, FUEL TANK, FENDERS, MTG. PARTS (05) - UPPERSTRUCTURE CHASSIS

1

35305

SIDE PLATE ASS'Y. - fender, R.H.

1шт.

2

35306

SIDE PLATE ASS'Y. - fender, L.H.

1шт.

3

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(35305 & 35306 mt'g.) (45759) Hex, 5/8"-18 x 1 3/4", G5

6шт.

4

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - male, 3/8 NP to 1/2 JIC (Used up to serial #7060799)

2шт.

222-815

CONNECTOR - male, 3/8 NP to 1/2 SAE (Used from serial #7060799)

2шт.

5

35075

TUBE ASS'Y. - fuel line (Used up to serial #7060799)

1шт.

39937

O-RING

TUBE ASS'Y. - fuel line (Used from serial #7060799)

1шт.

6

221-423

TEE,3/8" NPT

- pipe, 3/8 NP (41582)

1шт.

7

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - pipe, 3/8 NP x 1-1/2 (41417)

1шт.

8

41934

X

STRAINER ASS'Y. - fuel

1шт.

9

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree male, 1/8 NP to 3/8 JIC (Used up to serial #7060799)

2шт.

222-767

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/8" NPT

- 90 degree male, 1/8 NP to 3/8 SAE (Used from serial #7060799)

2шт.

10

35386

SHIM

TUBE ASS'Y. - fuel line (Used up to serial #7060799)

1шт.

39939

SHAFT SEAL

TUBE ASS'Y. - fuel line (Used from serial #7060799)

1шт.

11

36604

GEAR

TUBE ASS'Y. - fuel line (Used up to serial #7060799)

1шт.

39933

SHIM

TUBE ASS'Y. - fuel line (Used from serial #7060799)

1шт.

12

36606

PIPE

HOSE ASS'Y. - fuel line (Used up to serial #7060799)

1шт.

51045

HOSE ASS'Y. - fuel line (Used from serial #7060799)

1шт.

13

33700

CLAMP - tube (Used up to serial #7060799)

1шт.

49837

CLAMP

- tube (Used from serial #7060799)

1шт.

14

NLS

NO LONGER SERVICED

SEAT ASS'Y.

1шт.

15

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (34846 mt'g.) (45707)

3шт.

16

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

17

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

3шт.

18

34958

BOX ASS'Y. - battery (Used up to serial #7060141)

1шт.

R37577

BOX ASS'Y. - battery (Used from serial #7060141 and up to serial #7060716)

1шт.

19

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (Battery box mt'g.) (45708)

2шт.

20

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

21

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

22

35670

O-RING,37.85mm ID x 5.28mm Width

BRACE - battery box

1шт.

23

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (35670 mt'g.) (45656)

1шт.

24

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS 3/8-24 NF x 1-1/4 (35670 mt'g.) (45657)

1шт.

25

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

26

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.

27

34806

GUIDE

TANK ASS'Y. - fuel, R.H.

1шт.

28

34807

TANK ASS'Y. - fuel, L.H.

1шт.

29

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(34806 & 34807 mt'g.) (45654) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

30

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS 3/8-24 NF x 7/8 (34806 & 34807 mt'g.) (45655)

2шт.

31

92-6

LOCK WASHER,3/8"

(48446) 3/8"

6шт.

32

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

6шт.

33

35358

BRACKET - arm rest

2шт.

34

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (34806, 34807, 35358 mt'g.) (45656)

4шт.

35

92-6

LOCK WASHER,3/8"

(48446) 3/8"

4шт.

36

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

4шт.

37

CASE10731

FILLER CAP

CAP - fuel

2шт.

38

34072

BEARING ASSY,1.5005" ID x 2.845" OD x 0.8125"

CUSHION - arm rest

2шт.

39

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(34072 mt'g.) (45004) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

4шт.

41

D36612

CUSHION

CUSHION - seat

1шт.

42

33529

BUSHING

CUSHION - seat back

1шт.

43

49567

GROMMET

- rubber

2шт.

44

30743

BRACKET

BATTERY (Used up to serial #7060716)

1шт.

39520

BATTERY (Used from serial #7060716)

1шт.

45

39573

BOARD - battery bottom (Used from serial #7060716)

1шт.

46

60782

BRACKET ASS'Y. - battery hold-down (Used up to serial #7060141)

1шт.

37554

ARM

BRACKET ASS'Y. - battery hold-down (Used from serial #7060141 and up to serial #7060716)

1шт.

39562

RIGID TUBE

BRACKET ASS'Y. - battery hold-down (Used from serial #7060716)

1шт.

47

33547

BOLT - angle (Used up to serial #7060716)

2шт.

39565

BOLT - angle (Used from serial #7060716)

2шт.

48

95-5

WASHER,3/8" x 7/8" x .083"

- plain (48405)

2шт.

49

9635082

NUT,5/16" - 18, Gr 5

- reg. SF hex (5/16-18 NC) (47801)

2шт.

50

34753

PLATE ASS'Y. - backhoe mt'g.

1шт.

51

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(34753 mt'g.) (45758) Hex, 5/8"-18 x 1 1/2", G5

8шт.

52

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(34753 mt'g.) (45760) Hex, 5/8"-18 x 2", G5

4шт.

53

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

12шт.
