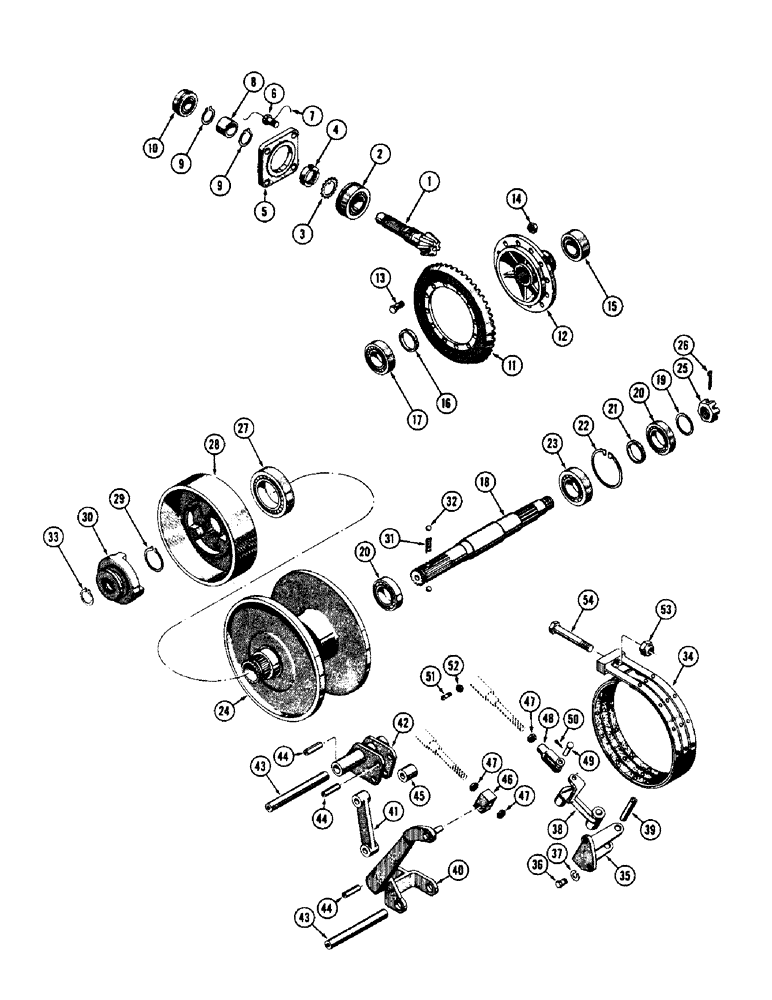

Запчасти Case 600 (246) - WINCH INSTALLATION, BEVEL GEAR AND PINION GROUP - DRUM AND BRAKE GROUP (05) - UPPERSTRUCTURE CHASSIS

R36301

WINCH ASS'Y. - complete (Continued)

1шт.

1

F36222

PINION - spiral drive, bevel gear and pinion group

1шт.

2

45309W

BEARING - ball, bevel gear and pinion group

1шт.

3

W-09

WASHER - lock, bearing, bevel gear and pinion group

1шт.

4

N-09

NUT - lock, bearing, bevel gear and pinion group

1шт.

5

X31333

RING - bevel pinion retaining, bevel gear and pinion group

1шт.

6

46947

HHCS 1/2-20 NF x 1-1/4 (Drilled), bevel gear and pinion group

4шт.

7

391-626

WIRE - lock, bevel gear and pinion group

1шт.

8

Y36238

SPACER, bevel gear and pinion group

1шт.

9

5100-162

RING - snap, bevel gear and pinion group

2шт.

10

307-SZZ-G

BEARING - ball, bevel gear and pinion group

1шт.

11

F30664

GEAR - spiral drive, bevel gear and pinion group

1шт.

12

F30741

HUB - bevel gear, bevel gear and pinion group

1шт.

13

Y34464

SCREW - special, bevel gear and pinion group

12шт.

14

59E-070

NUT - special (7/16-20 NF), bevel gear and pinion group

12шт.

15

5209

BOLT

BEARING - ball, bevel gear and pinion group

1шт.

16

Y30720

SPACER - bearing, bevel gear and pinion group

1шт.

17

211-S

BEARING - ball, bevel gear and pinion group

1шт.

18

F36232

SHAFT - drum, cable drum and brakd group

1шт.

19

Y30723

SPACER - bearing, cable drum and brakd group

1шт.

20

211-SZZ

BEARING - ball, cable drum and brakd group

2шт.

21

Y30720

SPACER - bearing, cable drum and brakd group

1шт.

22

5000-475

RING - snap, cable drum and brakd group

1шт.

23

311-SZZ

BEARING - ball, cable drum and brakd group

1шт.

24

D30747

DRUM - cable, cable drum and brakd group

1шт.

25

Y743-7

NUT - slotted hex, cable drum and brakd group

1шт.

26

39338

BRACKET

PIN - cotter, 3/8 dia. x 1-1/4, cable drum and brakd group

1шт.

27

217-SZZ

BEARING - ball, cable drum and brakd group

1шт.

28

D36217

ROD ASSY.

DRUM - brake, cable drum and brakd group

1шт.

29

5100-325

RING - snap, cable drum and brakd group

1шт.

30

F36228

CLUTCH, cable drum and brakd group

1шт.

31

X28698-18

SPRING - compression, cable drum and brakd group

1шт.

32

211-13

BALL,1/2" Dia

- steel, cable drum and brakd group 1/2" Dia

2шт.

33

5100-215

RING - snap, cable drum and brakd group

1шт.

34

F36221

BELT

Band Assembly, Brake Group and Cable Drum

1шт.

35

F36229

BRACKET - shift lever, cable drum and brakd group

1шт.

36

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (45706), cable drum and brakd group

2шт.

37

92-8

LOCK WASHER,1/2"

(48448), cable drum and brake group 1/2"

2шт.

38

F36230

LEVER - shift, cable drum and brakd group

1шт.

39

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, , Cable drum and brake group 1/2" x 2 1/2", Slotted

1шт.

40

D36219

LEVER - brake, cable drum and brakd group

1шт.

41

Y36241

LINK - brake, cable drum and brakd group

1шт.

42

F36220

JAM NUT

LEVER - brake roller, cable drum and brakd group

1шт.

43

Y30718

PIN - brake, cable drum and brakd group

2шт.

44

138-206

LOCK PIN,1/2" x 2", Slotted

Pin, , cable drum and brake group 1/2" x 2", Slotted

3шт.

45

Y36237

ROLLER - brake, cable drum and brakd group

1шт.

46

Y36244

BLOCK, cable drum and brakd group

1шт.

47

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex jam (3/8-24 NF) (48192), cable drum and brakd group

3шт.

48

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), cable drum and brakd group

1шт.

49

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Cable drum and brake group 3/8" x 1.060"

1шт.

50

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), cable drum and brake group

1шт.

51

181-647

SCREW - sq. head set, 3/8-16 NC x 1, cable drum and brakd group

2шт.

52

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam (3/8-16 NC) (47892), cable drum and brakd group

2шт.

53

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, , Safety, cable drum and brake group 3/4"-10, GB

1шт.

54

Y36272

HHCS - special, cable drum and brakd group

1шт.
