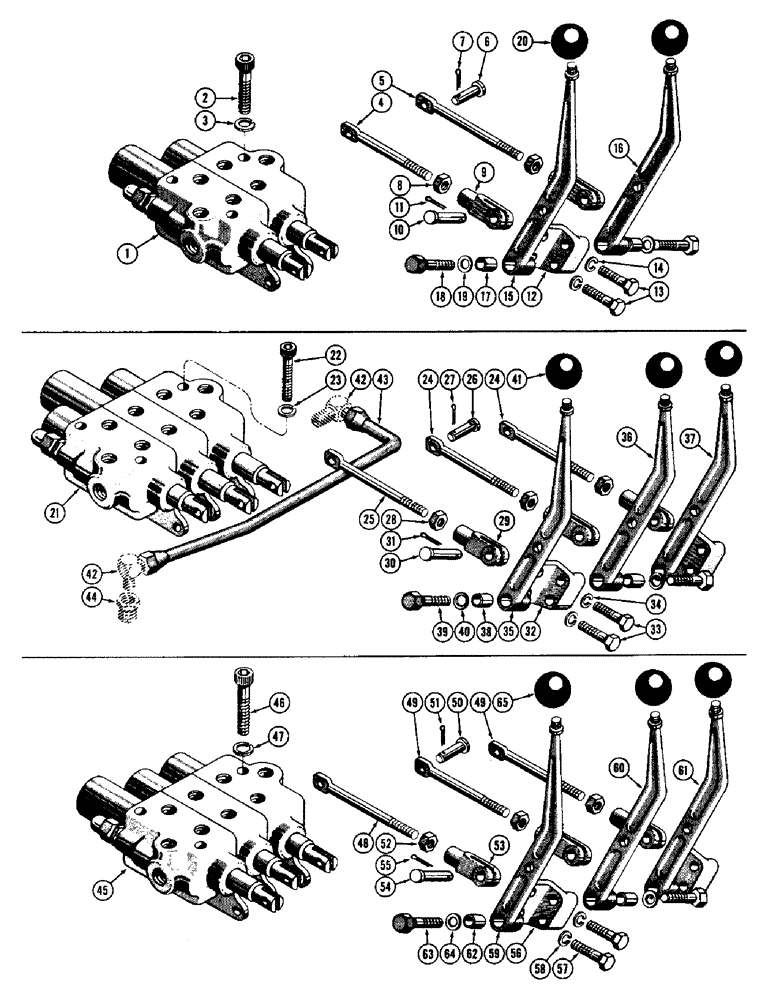

Запчасти Case 600 (228) - DUAL AND PULL-BEHIND INSTALLATION, VALVE SYSTEMS FOR PULL-BEHIND COMBINATION (FROM S/N 7060799) (05) - UPPERSTRUCTURE CHASSIS

1

74503

VALVE ASS'Y. - hydraulic control (See figure #294 for b'down), single pull-behind - mechanical dozer combination

1шт.

2

62-864

SHCS 1/2-20 NF x 4 (74503 mt'g.) (47570), single pull-behind - mechanical dozer combination

3шт.

3

92-8

LOCK WASHER,1/2"

(48448), single pull-behind - mechanical dozer combination 1/2"

3шт.

4

32361

SNAP RING

LINK - valve control, single pull-behind - mechanical dozer combination

1шт.

5

35620

SHIM

LINK - valve control, single pull-behind - mechanical dozer combination

1шт.

6

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), single pull-behind - mechanical dozer combination

2шт.

7

132-2

SPLIT PIN/SAFETY PIN

PIN - cotter, 1/16 dia. x 1/2 (48672), single pull-behind - mechanical dozer combination

2шт.

8

25-166

NUT,3/8"-16, G5, Hvy

- reg. SF hex (3/8-24 NF) (48102), single pull-behind - mechanical dozer combination

2шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), single pull-behind - mechanical dozer combination

2шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Single pull-behind - mechanical dozer combination 3/8" x 1.060"

2шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), single pull-behind - mechanical dozer combination

2шт.

12

32322

BRACKET - control lever, single pull-behind - mechanical dozer combination

1шт.

13

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mt'g.) (45654), single pull-behind - mechanical dozer combination Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

(48446), single pull-behind - mechanical dozer combination 3/8"

2шт.

15

38864

LEVER - valve control, single pull-behind - mechanical dozer combination

1шт.

16

38865

LEVER - valve control, single pull-behind - mechanical dozer combination

1шт.

17

NLS

NO LONGER SERVICED

BUSHING - spacer, single pull-behind - mechanical dozer combination

2шт.

18

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (38864 & 5 mt'g.) (45709), single pull-behind - mechanical dozer combination

2шт.

19

195-33

WASHER,1/2"

-plain (48428), single pull-behind - mechanical dozer combination

2шт.

20

CASCAS31375

BALL - grip, single pull-behind - mechanical dozer combination

2шт.

21

74547

VALVE ASS'Y. - hydraulic control (See figure #294 for b'down), single pull-behind - hydraulic dozer combination

1шт.

22

62-864

SHCS 1/2-20 NF x 4 (74547 mt'g.) (47570), single pull-behind - hydraulic dozer combination

3шт.

23

92-8

LOCK WASHER,1/2"

(48448), single pull-behind - hydraulic dozer combination 1/2"

3шт.

24

32361

SNAP RING

LINK - valve control, single pull-behind - hydraulic dozer combination

2шт.

25

35620

SHIM

LINK - valve control, single pull-behind - hydraulic dozer combination

1шт.

26

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), single pull-behind - hydraulic dozer combination

3шт.

27

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672), Single pull-behind - hydraulic dozer combination 1/16" x 1/2"

3шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), single pull-behind - hydraulic dozer combination

3шт.

29

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), single pull-behind - hydraulic dozer combination

3шт.

30

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Single pull-behind - hydraulic dozer combination 3/8" x 1.060"

3шт.

31

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), single pull-behind - hydraulic dozer combination

3шт.

32

32322

BRACKET - control lever, single pull-behind - hydraulic dozer combination

2шт.

33

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mt'g.) (45654), single pull-behind - hydraulic dozer combination Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

34

92-6

LOCK WASHER,3/8"

(48446), single pull-behind - hydraulic dozer combination 3/8"

4шт.

35

38864

LEVER - valve control, single pull-behind - hydraulic dozer combination

1шт.

36

38865

LEVER - valve control, single pull-behind - hydraulic dozer combination

1шт.

37

38866

LEVER - valve control, single pull-behind - hydraulic dozer combination

1шт.

38

NLS

NO LONGER SERVICED

BUSHING - spacer, single pull-behind - hydraulic dozer combination

3шт.

39

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (Lever mt'g.) (45709), single pull-behind - hydraulic dozer combination

3шт.

40

195-33

WASHER,1/2"

- plain (48428), single pull-behind - hydraulic dozer combination

3шт.

41

CAS31375

KNOB

BALL - grip, single pull-behind - hydraulic dozer combination

3шт.

42

REF

INSTRUCTION

ELBOW - 90 degree male, 3/4 JIC to 3/4 NP (See figure #216, ref. #32), single pull-behind - hydraulic dozer combination

2шт.

43

R10977

TUBE ASS'Y. - valve to tank, single pull-behind - hydraulic dozer combination

1шт.

44

REF

INSTRUCTION

BUSHING - pipe, 3/4 NP to 1-1/4 NP, single pull-behind - hydraulic dozer combination

1шт.

45

74502

LID

VALVE ASS'Y. - hydraulic control (See figure #294 for b'down), dual pull-behind - mechanical dozer combination

1шт.

46

62-864

SHCS 1/2-20 NF x 4 (74502 mt'g.) (47570), dual pull-behind - mechanical dozer combination

3шт.

47

92-8

LOCK WASHER,1/2"

(48448), dual pull-behind - mechanical dozer combination 1/2"

3шт.

48

32361

SNAP RING

LINK - valve control, dual pull-behind - mechanical dozer combination

1шт.

49

35620

SHIM

LINK - valve control, dual pull-behind - mechanical dozer combination

2шт.

50

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), dual pull-behind - mechanical dozer combination

3шт.

51

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672), Dual pull-behind - mechanical dozer combination 1/16" x 1/2"

3шт.

52

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), dual pull-behind - mechanical dozer combination

3шт.

53

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), dual pull-behind - mechanical dozer combination

3шт.

54

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Dual pull-behind - mechanical dozer combination 3/8" x 1.060"

3шт.

55

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), dual pull-behind - mechanical dozer combination

3шт.

56

32322

BRACKET - control lever, dual pull-behind - mechanical dozer combination

2шт.

57

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mt'g.) (45654), dual pull-behind - mechanical dozer combination Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

58

92-6

LOCK WASHER,3/8"

(48446), dual pull-behind - mechanical dozer combination 3/8"

4шт.

59

38864

LEVER - valve control, dual pull-behind - mechanical dozer combination

1шт.

60

38865

LEVER - valve control, dual pull-behind - mechanical dozer combination

1шт.

61

38866

LEVER - valve control, dual pull-behind - mechanical dozer combination

1шт.

62

NLS

NO LONGER SERVICED

BUSHING - spacer, dual pull-behind - mechanical dozer combination

3шт.

63

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (Lever mt'g.) (45709), dual pull-behind - mechanical dozer combination

3шт.

64

195-33

WASHER,1/2"

- plain (48428), dual pull-behind - mechanical dozer combination

3шт.

65

CAS31375

KNOB

BALL - grip, dual pull-behind - mechanical dozer combination

3шт.
