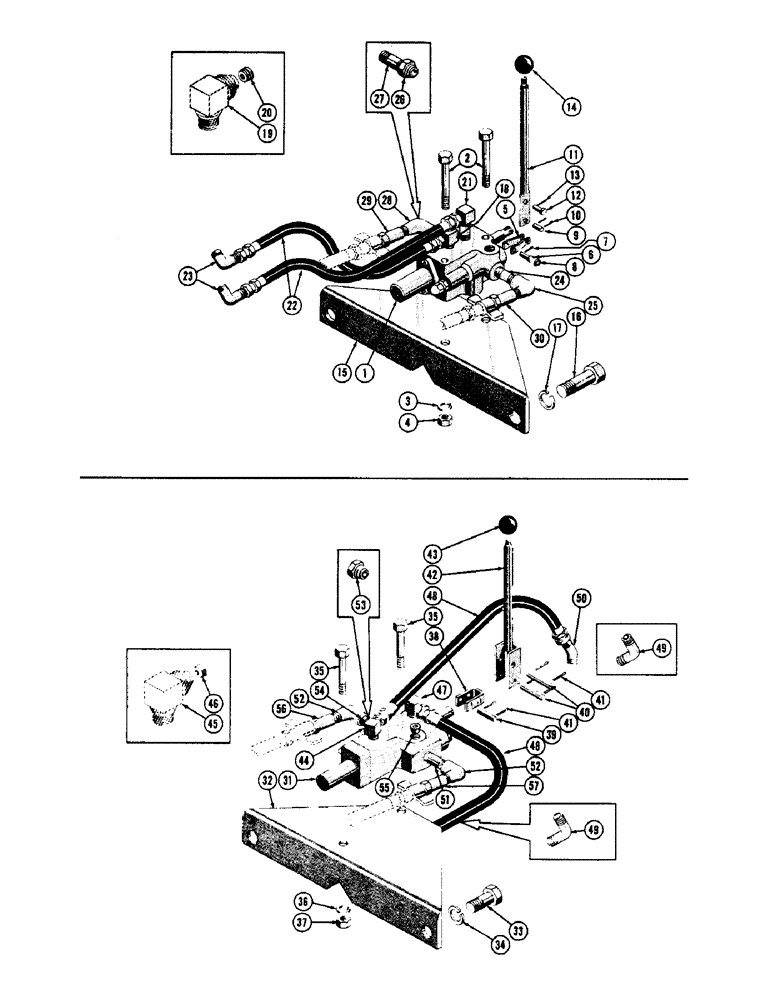

Запчасти Case 600 (206) - SCARIFIER HYD. WHEN USED WITH BACKHOE, VALVE, LEVERS, TUBES, HOSES, FITTINGS, (UP TO S/N 7060799) (05) - UPPERSTRUCTURE CHASSIS

1

16130

TUBE

VALVE ASS'Y. - hydraulic control (See figure #300 for breakdown)

1шт.

2

14-872

X,Hex, 1/2" - 20 x 4 1/2", Gr 5

HHCS 1/2-20 NF x 4-1/2 (16130 mt'g.) (45719)

2шт.

3

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

4

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

5

35467

SPROCKET

LINK - valve control

2шт.

6

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661)

1шт.

7

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672) 1/16" x 1/2"

1шт.

8

195-18

WASHER,1/4"

- plain (48424)

1шт.

9

35466

LOCK PIN

PIN (35467 mt'g.)

1шт.

10

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672) 1/16" x 1/2"

2шт.

11

35468

BUSHING

LEVER - valve control

1шт.

12

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661)

1шт.

13

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48672) 1/16" x 1/2"

1шт.

14

CAS31375

KNOB

BALL - grip

1шт.

15

35469

IDLER WHEEL

BRACKET - valve support

1шт.

16

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS 1-14 NF x 2-1/2 (35469 mt'g.) (45837)

2шт.

17

92-16

LOCK WASHER,1"

WASHER, LOCK, (48456) 1"

2шт.

18

35310

RESTRICTOR ASS'Y. - flow

1шт.

19

NSS

NOT SOLD SEPARAT

RESTRICTOR - flow

1шт.

20

35309

SUPPORT

PLUG - pipe, special

1шт.

21

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (50571) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

22

35543

HOSE

ASS'Y. -, Serial Range: valve-cylinder

2шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

2шт.

24

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe, 3/4 NP x 3 (41442)

1шт.

25

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street (41674) 90º, 3/4"-14, NPT

1шт.

26

221-60

TUBE

BUSHING - pipe, 1/2 NP to 3/4 NP (41643)

1шт.

27

221-192

PIPE,Nipple, 1/2" NPT x 3"

NIPPLE - pipe, 1/2 NP x 3 (41434)

1шт.

28

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street, 1/2 NP (41673)

1шт.

29

36262

PLUG - quick disconnect, male

1шт.

30

36263

SOCKET - quick disconnect, female

1шт.

31

36875

VALVE ASS'Y. - hyd. control (See figure #302 for breakdown), used from serial number 7060799

1шт.

32

39622

CAP COVER

BRACKET - valve support, used from serial number 7060799

1шт.

33

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS 1/1-4 NF x 2-1/2 (39622 mt'g.) (45837), used from serial number 7060799

2шт.

34

92-16

LOCK WASHER,1"

WASHER, LOCK, (48456), Used from S/N 7060799 1"

2шт.

35

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

HHCS 1/2-20 NF x 3-1/2 (36875 mt'g.) (45716), used from serial number 7060799

2шт.

36

92-8

LOCK WASHER,1/2"

(48448), used from serial number 7060799 1/2"

2шт.

37

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104), used from serial number 7060799

2шт.

38

35161

LINK - valve lever, used from serial number 7060799

1шт.

39

35172

PIN ( 35161 mt'g.), used from serial number 7060799

1шт.

40

35173

PIN

(39623 mt'g.), used from serial number 7060799

2шт.

41

132-8

X

PIN - cotter, 1/16 x 7/8 (48675), used from serial number 7060799

6шт.

42

39623

HANDLE ASS'Y. - valve control, used from serial number 7060799

1шт.

43

70213

KNOB

BALL - grip, used from serial number 7060799

1шт.

44

35310

RESTRICTOR ASS'Y. - flow, used from serial number 7060799

1шт.

45

NSS

NOT SOLD SEPARAT

RESTRICTOR - flow, used from serial number 7060799

1шт.

46

35309

SUPPORT

PLUG - pipe, special, used from serial number 7060799

1шт.

47

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), used from serial number 7060799

1шт.

48

35543

HOSE

ASS'Y. - valve to cylinder (Used up to serial #4-20-58), used from serial number 7060799

2шт.

19178

HOSE

ASS'Y. - valve to cylinder (Used from serial #4-20-58), used from serial number 7060799

2шт.

49

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (Used up to serial #4-20-58), used from serial number 7060799

2шт.

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (Used from serial #4-4058), used from serial number 7060799

1шт.

50

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male, 5/8 JIC to 1/2 NP (Used from serial #4-2058), used from serial number 7060799

1шт.

51

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe, 3/4 NP x 3 (41442), used from serial number 7060799

1шт.

52

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, used from S/N 7060799 90º, 3/4"-14, NPT

1шт.

53

221-604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, 1 NP to 3/4 NP (41664), used from serial number 7060799

1шт.

54

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe, 3/4 NP x 3 (41442), used from serial number 7060799

1шт.

55

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, ctsk. hd., 3/4 NP (41839), used from serial number 7060799

2шт.

56

36262

PLUG - quick disconnect, male, used from serial number 7060799

1шт.

57

36263

SOCKET - quick disconnect, female, used from serial number 7060799

1шт.
