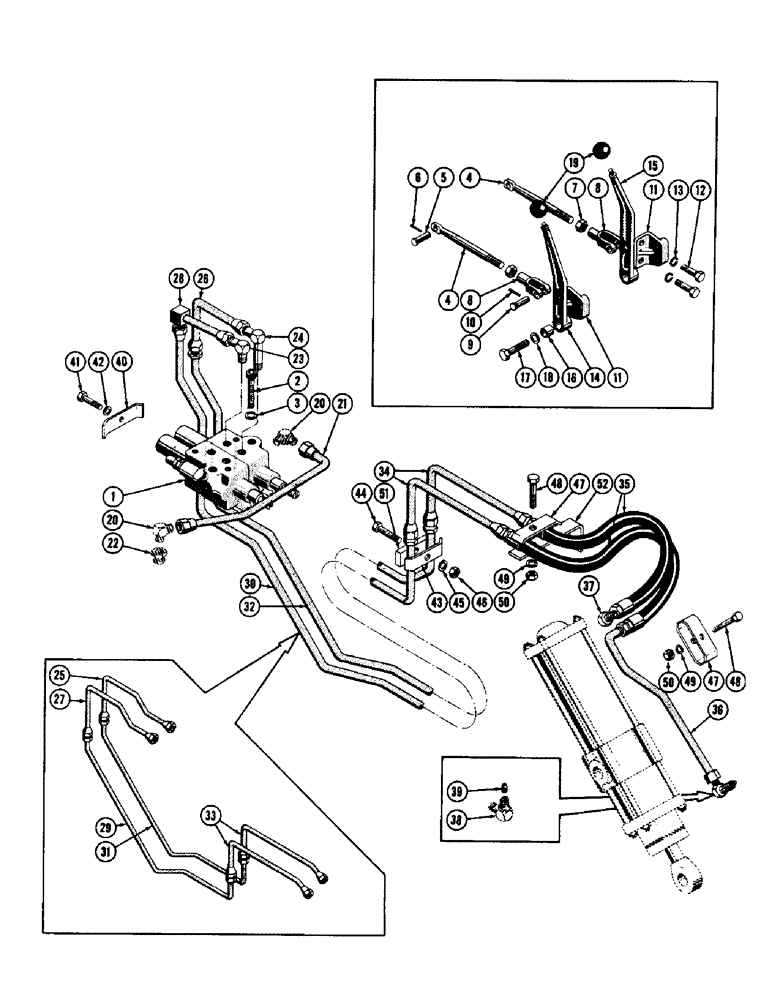

Запчасти Case 600 (204) - SCARIFIER HYD. WHEN USED W/ MECHANICAL DOZERS, VALVE, TUBES, HOSES, FITTINGS (USED S/N 7060799) (05) - UPPERSTRUCTURE CHASSIS

1

39069

VALVE ASSY - hydraulic control (See figure #294 for breakdown)

1шт.

2

62-864

SPARE PART SHCS 1/2-20 NF x 4 (39069 mt'g.) (47570)

3шт.

3

92-8

LOCK WASHER,1/2"

(48448)

3шт.

4

32361

SNAP RING

SPARE PART LINK - valve control

2шт.

5

141-2

CLEVIS PIN,1/4" x .770"

Yoke (48661)

2шт.

6

132-5

COTTER PIN,1/16" x 1/2"

(48672)

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

(48102)

2шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

2шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

(48663)

2шт.

10

132-26

COTTER PIN

1/16 dia. x 3/4 (48683)

1шт.

11

32322

BRACKET - control lever

2шт.

12

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mt'g.) (45654)

4шт.

13

92-6

LOCK WASHER,3/8"

(48446)

4шт.

14

38864

LEVER - valve control

1шт.

15

38866

LEVER - valve control

1шт.

16

32362

WASHER

Spacer

2шт.

17

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

(38864 & 38866 mt'g.) (45709)

2шт.

18

195-33

WASHER,1/2"

Plain (48428)

2шт.

19

31375

WASHER

BALL - grip

2шт.

20

REF

INSTRUCTION

ELBOW - 90 degree male, 3/4 JIC to 3/4 NP (See figure #170, ref. #32)

2шт.

21

R10977

TUBE ASSY -, Serial Range: valve-tank

1шт.

22

REF

INSTRUCTION

BUSHING - pipe, 3/4 NP to 1-1/4 NP (See figure #170, ref. #34)

1шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Male, 5/8 JIC to 1/2 NP (50114)

1шт.

24

218-498

SPARE PART Extra long male, 5/8 JIC to 1/2 NP (50571) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

25

38400

TUBE ASSY - valve to cylinder (Used up to S/N 7060938)

1шт.

26

R11004

TUBE ASSY - valve to cylinder (Used from S/N 7060938)

1шт.

27

38402

TUBE ASSY - valve to cylinder (Used up to S/N 7060938)

1шт.

28

R11002

TUBE ASSY - valve to cylinder (Used from S/N 7060938)

1шт.

29

39498

SPINDLE

TUBE ASSY - valve to cylinder (Used up to S/N 7060938)

1шт.

30

74929

TUBE ASSY - valve to cylinder (Used from S/N 7060938)

1шт.

31

39496

SPINDLE

TUBE ASSY - valve to cylinder (Used up to S/N 7060938)

1шт.

32

74925

TUBE ASSY - valve to cylinder (Used from S/N 7060938)

1шт.

33

35599

GASKET

SPARE PART TUBE ASSY - valve to cylinder (Used up to S/N 7060938)

2шт.

34

74921

TUBE ASSY - valve to cylinder (Used from S/N 7060938)

2шт.

35

36547

HOSE

ASSY -, Serial Range: valve-cylinder

2шт.

36

37700

TUBE ASSY - cylinder bottom port

1шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Male, 5/8 JIC to 1/2 NP (50114)

1шт.

35310

SPARE PART RESTRICTOR ASSY - flow

1шт.

38

NSS

NOT SOLD SEPARAT

RESTRICTOR - flow

1шт.

39

35309

SUPPORT

SPARE PART PLUG - pipe, special

1шт.

40

32978

PLATE ASSY.

CLAMP - tube (74925 & 74929 mt'g.)

1шт.

41

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(32978 mtg.) (45632)

1шт.

42

92-5

LOCK WASHER,5/16"

(48445)

1шт.

43

31665

COLLAR CLAMP

Tube (74925 & 74929 mt'g.)

1шт.

44

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

(31665 mt'g.) (45635)

1шт.

45

92-5

LOCK WASHER,5/16"

(48445)

1шт.

46

25-115

NUT,5/16"-24, G5

(48101)

1шт.

47

31665

COLLAR CLAMP

Hose (36547 mt'g.)

3шт.

48

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mt'g.) (45634)

2шт.

49

92-5

LOCK WASHER,5/16"

(48445)

2шт.

50

25-115

NUT,5/16"-24, G5

(48101)

2шт.

51

71603

SPACER - clamp (Used from S/N 7060938)

1шт.

52

33422

BRACKET - tube support

1шт.
