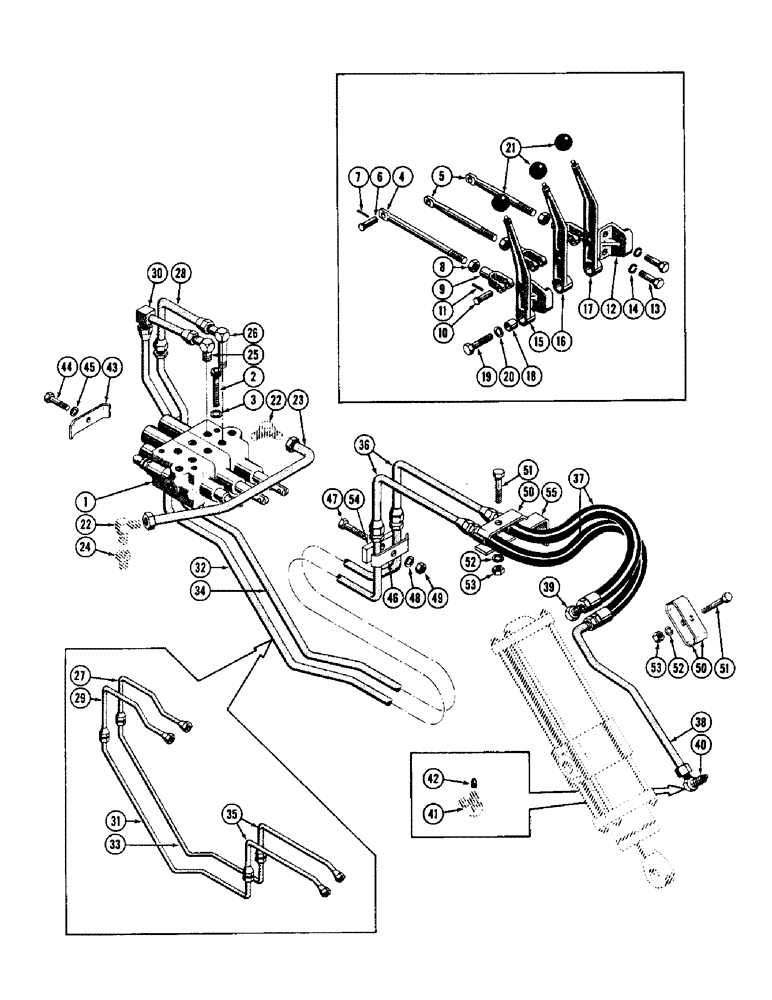

Запчасти Case 600 (202) - SCARIFIER HYD. WHEN USED W/ LOADER OR HYD. DOZERS VALVE, TUBES, HOSES, FITTINGS (USED S/N 7060799) (05) - UPPERSTRUCTURE CHASSIS

1

38876

VALVE ASSY - hyd. control (See figure #294 for breakdown)

1шт.

2

62-864

SPARE PART SHCS 1/2-20 NF x 4 (38876 mt'g.) (47570)

3шт.

3

92-8

LOCK WASHER,1/2"

(48448)

3шт.

4

35620

SHIM

SPARE PART LINK - valve control

1шт.

5

32361

SNAP RING

SPARE PART LINK - valve control

2шт.

6

141-2

CLEVIS PIN,1/4" x .770"

Yoke (48661)

3шт.

7

132-5

COTTER PIN,1/16" x 1/2"

(48672)

3шт.

8

25-116

NUT,Hex, 3/8"-24, G5

(48102)

3шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

3шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

(48663)

3шт.

11

132-26

COTTER PIN

3/32" x 3/4" (48683)

3шт.

12

32322

BRACKET - control lever

2шт.

13

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mt'g.) (45654)

4шт.

14

92-6

LOCK WASHER,3/8"

(48446)

4шт.

15

38864

LEVER - valve control

1шт.

16

38865

LEVER - valve control

1шт.

17

38866

LEVER - valve control

1шт.

18

NLS

NO LONGER SERVICED

Spacer

3шт.

19

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

(Lever mt'g.) (45709)

3шт.

20

195-33

WASHER,1/2"

(48428)

3шт.

21

CAS31375

KNOB

BALL - grip

3шт.

22

REF

INSTRUCTION

ELBOW - 90 degree, 3/4 JIC to 3/4 NP (See figure #152, ref. #58)

2шт.

23

R10977

TUBE ASSY -, Serial Range: valve-tank

1шт.

24

REF

INSTRUCTION

BUSHING - pipe, 3/4 NP to 1-1/4 NP (See figure #152, ref. #60)

1шт.

25

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Male, 5/8 JIC to 1/2 NP (50114)

1шт.

26

218-498

SPARE PART ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (50571) 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

27

38400

TUBE ASSY - valve to cylinder (Used up to S/N 7060938)

1шт.

28

R11004

TUBE ASSY - valve to cylinder (Used from S/N 7060938)

1шт.

29

38402

TUBE ASSY - valve to cylinder (Used up to S/N 37060938)

1шт.

30

R11002

TUBE ASSY - valve to cylinder (Used from S/N 7060938)

1шт.

31

39498

SPINDLE

TUBE ASSY - valve to cylinder (Used up to S/N 7060938)

1шт.

32

74929

TUBE ASSY - valve to cylinder (Used from S/N 7060938)

1шт.

33

39496

SPINDLE

TUBE ASSY - valve to cylinder (Used up to S/N 7060938)

1шт.

34

74925

TUBE ASSY - valve to cylinder (Used from S/N 7060938)

1шт.

35

35599

GASKET

SPARE PART TUBE ASSY - valve to cylinder (Used up to S/N 7060938)

2шт.

36

74921

TUBE ASSY - valve to cylinder (Used from S/N 7060938)

2шт.

37

36547

HOSE

ASSY -, Serial Range: valve-cylinder

2шт.

38

37700

TUBE ASSY - cylinder bottom, port

1шт.

39

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Male, 5/8 JIC to 1/2 NP (50114)

1шт.

40

35310

SPARE PART RESTRICTOR ASSY - flow

1шт.

41

NSS

NOT SOLD SEPARAT

RESTRICTOR - flow

1шт.

42

35309

SUPPORT

SPARE PART PLUG - pipe, special

1шт.

43

32978

PLATE ASSY.

CLAMP - tube (74925 & 74929 mt'g.)

1шт.

44

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(32978 mtg.) (45632)

1шт.

45

92-5

LOCK WASHER,5/16"

(48445)

1шт.

46

31665

COLLAR CLAMP

Tube (74925 & 74929 mt'g.)

1шт.

47

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

(31665 mt'g.) (45635)

1шт.

48

92-5

LOCK WASHER,5/16"

(48445)

1шт.

49

25-115

NUT,5/16"-24, G5

(48101)

1шт.

50

31665

COLLAR CLAMP

Hose (36547 mt'g.)

3шт.

51

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mt'g.) (45634)

2шт.

52

92-5

LOCK WASHER,5/16"

(48445)

2шт.

53

25-115

NUT,5/16"-24, G5

(48101)

2шт.

54

71603

SPACER - clamp (Used from S/N 7060938)

1шт.

55

33422

BRACKET - tube support

1шт.
