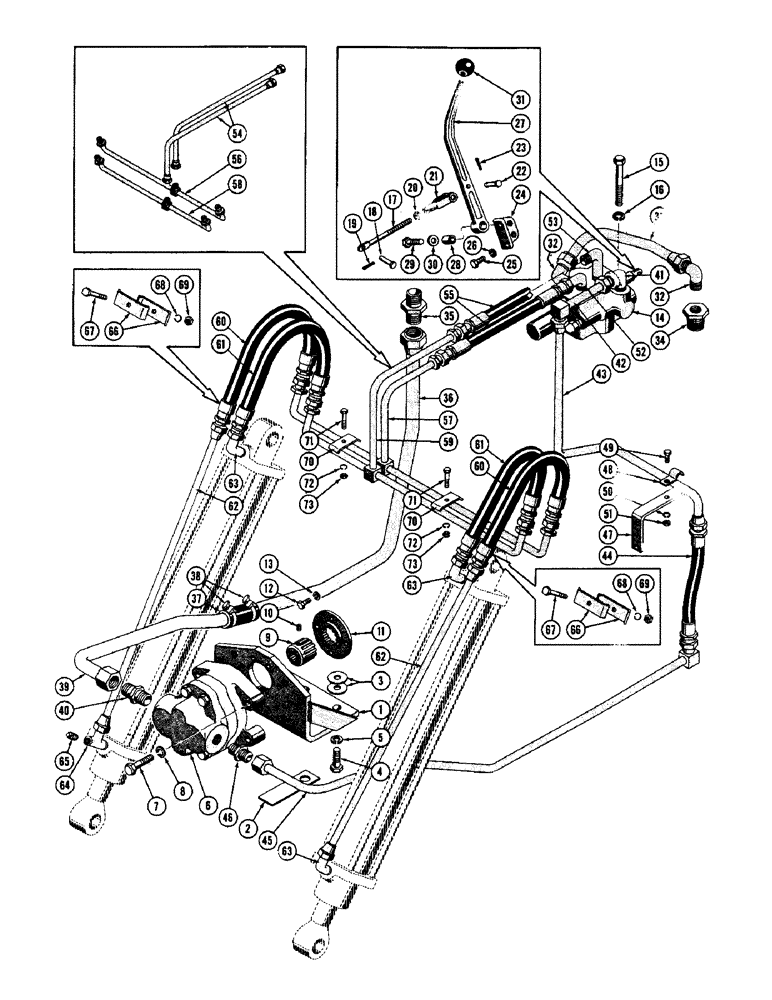

Запчасти Case 600 (170) - MECHANICAL ANGLE BULLDOZER OR CROWN AND TILT, DOZER HYDRAULIC INSTALLATION (05) - UPPERSTRUCTURE CHASSIS

1

30640

BRACKET - hydraulic pump mounting system

1шт.

2

33394

SHIM - front engine mounting, hydraulic pump system

1шт.

3

33496

BRAKE LINING

SHIM - .010 thick, hydraulic pump system

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(30640 mt'g.) (45158), hydraulic pump system Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450), Hydraulic pump system 5/8"

2шт.

6

31614

PUMP ASS'Y. - hydraulic (See figure #282 for breakdown) system

1шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(31614 mt'g.) (45110), hydraulic pump system Hex, 1/2"-13 x 2", G5

4шт.

8

92-8

LOCK WASHER,1/2"

(48448), hydraulic pump system 1/2"

4шт.

9

30480

X

COUPLING - male, hydraulic pump system

1шт.

10

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mt'g.) (47306), hydraulic pump system

1шт.

11

10493

COUPLING FLANGE

COUPLING - female, hydraulic pump system

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mt'g.) (45029), hydraulic pump system Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

(48445), hydraulic pump system 5/16"

4шт.

14

16130

TUBE

VALVE ASS'Y. - hydraulic control (See figure #300 for breakdown), lever system

1шт.

15

14-864

CAPSCREW,Hex, 1/2" - 20 x 4", Gr 5

HHCS 1/2-20 NF x 4 (16130 mt'g.) (45718), lever and valve system

2шт.

16

92-8

LOCK WASHER,1/2"

(48448), lever and valve system 1/2"

2шт.

17

32361

SNAP RING

LINK - valve control, lever system

1шт.

18

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke (48661), lever and valve system

1шт.

19

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), (48674), Lever and valve system 1/16" x 3/4"

1шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever and valve system

1шт.

21

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever and valve system

1шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Lever and valve system 3/8" x 1.060"

1шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683), lever and valve system

1шт.

24

32322

BRACKET - control, lever and valve system

1шт.

25

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(32322 mt'g.) (45654), lever and valve system Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

(48446), lever and valve system 3/8"

2шт.

27

38865

LEVER - valve control system

1шт.

28

32362

WASHER

- spacer, lever and valve system

1шт.

29

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (38865 mt'g.) (45709), lever and valve system

1шт.

30

195-33

WASHER,1/2"

- plain (48428), lever and valve system

1шт.

31

31375

WASHER

BALL - grip, lever and valve system

1шт.

32

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 JIC to 3/4 NP (50116), primary hydraulic system

2шт.

33

R10979

TUBE ASS'Y. - valve to tank, primary hydraulic system

1шт.

34

221-69

BUSHING

- pipe, 3/4 NP to 1-1/4 NP (41659), primary hydraulic system

1шт.

35

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 1" JIC to 3/4 NP (50030), primary hydraulic system

1шт.

36

39239

TUBE ASS'Y. - tank to pump, primary hydraulic system

1шт.

37

32798

HOSE

- low pressure, primary hydraulic system

1шт.

38

49766

AUGER

CLAMP - hose, primary hydraulic system

2шт.

39

33401

TUBE ASS'Y. - tank to pump, primary hydraulic system

1шт.

40

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (50029), primary hydraulic system

1шт.

41

221-563

ELBOW - 90 degree street, 3/4 NP to 1/2 NP, primary hydraulic system

1шт.

42

R10975

TUBE ASS'Y. - valve inlet, primary hydraulic system

1шт.

43

R10834

TUBE ASS'Y. - valve to pump, primary hydraulic system

1шт.

44

R10853

HOSE ASS'Y. - valve to pump, primary hydraulic system

1шт.

45

35962

SUPPORT

TUBE ASS'Y. - valve to pump, primary hydraulic system

1шт.

46

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 3/4 NP (50026), primary hydraulic system

1шт.

47

33925

BRACKET, primary hydraulic system

1шт.

48

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube (R-10834 mt'g.), primary hydraulic system

1шт.

49

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49858 mt'g.) (45629), primary hydraulic system Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

50

92-5

LOCK WASHER,5/16"

(48445), primary hydraulic system 5/16"

1шт.

51

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), primary hydraulic system

1шт.

52

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), lift cylinder hydraulic system

1шт.

53

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (50571), lift cylinder hydraulic system 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

54

39231

PIN

TUBE ASS'Y. - valve to manifold (Used up to serial #7060804), lift cylinder hydraulic system

2шт.

55

19259

HOSE ASS'Y. - valve to manifold (Used from serial #7060804), lift cylinder hydraulic system

2шт.

56

39236

TUBE ASS'Y. - manifold (Used up to serial #7060804), lift cylinder hydraulic system

1шт.

57

74823

TUBE ASS'Y. - manifold (Used from serial #7060804), lift cylinder hydraulic system

1шт.

58

39233

SPACER

TUBE ASS'Y. - manifold (Used up to serial #7060804), lift cylinder hydraulic system

1шт.

59

74824

TUBE ASS'Y. - manifold (Used from to serial #7060804), lift cylinder hydraulic system

1шт.

60

35646

HOSE

ASS'Y. - manifold to lift cylinders hydraulic system

2шт.

61

18950

HOSE ASS'Y. - manifold to lift cylinders hydraulic system

2шт.

62

35972

HYD TUBE,24.812 mm Length

TUBE ASS'Y. - manifold to lift cylinders hydraulic system

2шт.

63

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), lift cylinder hydraulic system

3шт.

64

33888

ELBOW - 90 degree special, lift cylinder hydraulic system

1шт.

65

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. head. 1/8 NP (41820), lift cylinder hydraulic system

1шт.

66

31665

COLLAR CLAMP

CLAMP - hose (35646 & 18950 mt'g.), lift cylinder hydraulic system

4шт.

67

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(31665 mtg.) (45634), Lift cylinder hydraulic system Hex, 5/16"-24 x 1 3/4", G5

2шт.

68

92-5

LOCK WASHER,5/16"

(48445), lift cylinder hydraulic system 5/16"

2шт.

69

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), lift cylinder hydraulic system

2шт.

70

32978

PLATE ASSY.

CLAMP - tube (74823 & 74824 mt'g.), lift cylinder hydraulic system

2шт.

71

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (32978 mt'g.) (45633), lift cylinder hydraulic system

2шт.

72

92-5

LOCK WASHER,5/16"

(48445), lift cylinder hydraulic system 5/16"

2шт.

73

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), lift cylinder hydraulic system

2шт.
