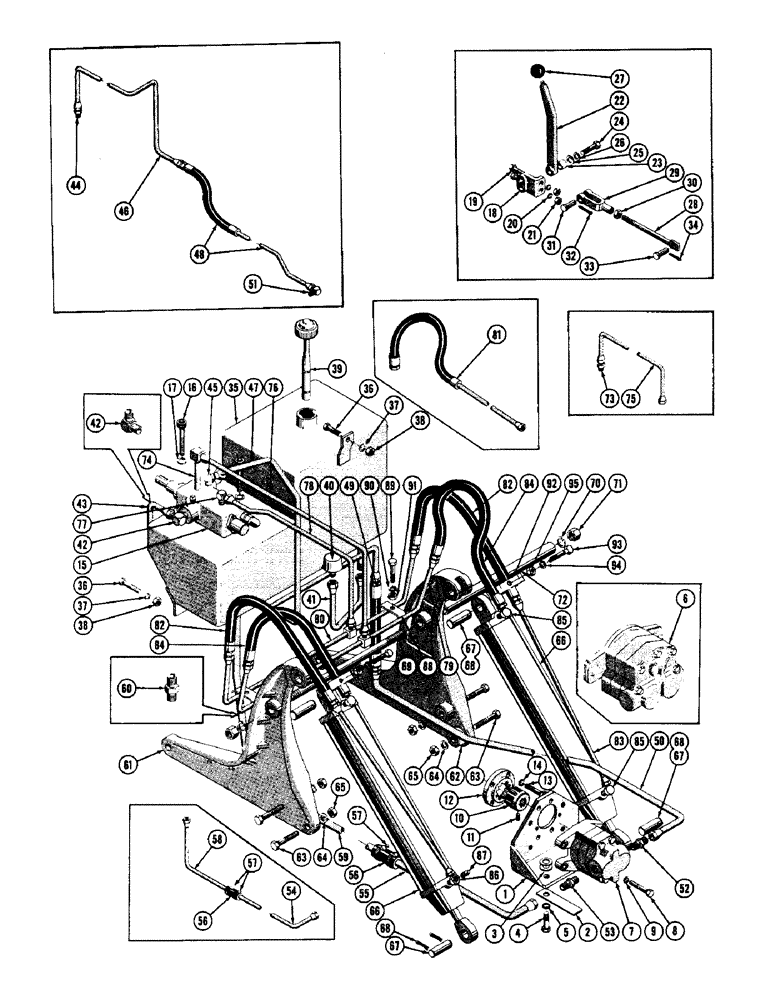

Запчасти Case 600 (162) - STRAIGHT OR ANGLE DOZER HYD. SYSTEM, VALVE, LEVERS, PUMP, CYL., TUBES, HOSED (UP TO S/N 7060799) (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
30640
BRACKET ASS'Y. - pump hydraulic system
1шт.
2
33394
SHIM - front engine mounting, hydraulic pump system
1шт.
3
NLS
NO LONGER SERVICED
SHIM - .010 thick, hydraulic pump system
1шт.
4
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
(30640 mt'g.) (45158), hydraulic pump system Hex, 5/8"-11 x 1 1/2", G5, Full Thd
2шт.
6
31615
CAP
PUMP ASS'Y - hydraulic (Used up to serial #4-27-56) (See figure #284 for breakdown), pump system
1шт.
7
31614
PUMP ASS'Y. - hydraulic (Used from serial #4-27-56) (See figure #282 for breakdown), pump system
1шт.
8
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
(31615 mt'g.) (Used up to S/N 4-27-56) (45056), hydraulic pump system Hex, 3/8"-16 x 1", G5, Full Thd
4шт.
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
(31614 mt'g.) (Used from S/N 4-27-56) (45110), hydraulic pump system Hex, 1/2"-13 x 2", G5
4шт.
9
92-6
LOCK WASHER,3/8"
(Used up to serial #4-27-56), hydraulic pump system 3/8"
4шт.
92-8
LOCK WASHER,1/2"
(Used from serial #4-27-56), hydraulic pump system 1/2"
4шт.
10
30480
X
COUPLING - male, hydraulic pump system
1шт.
11
83-58
SET SCREW,Hex Soc, 5/16"-18 x 1/2"
SCREW - set, 5/16-18 NC x 1/2 (30480 mt'g.) (47306), hydraulic pump system
1шт.
12
10493
COUPLING FLANGE
COUPLING - female, hydraulic pump system
1шт.
13
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
(10493 mt'g.) (45029), hydraulic pump system Hex, 5/16"-18 x 3/4", G5, Full Thd
4шт.
14
92-5
LOCK WASHER,5/16"
(48445), hydarulic pump system 5/16"
4шт.
15
16130
TUBE
VALVE ASS'Y. - hydraulic control (See figure #300 for breakdown), lever system
1шт.
16
62-864
SHCS 1/2-20 NF x 4 (16130 mt'g.) (47570), lever and valve system
2шт.
17
92-8
LOCK WASHER,1/2"
(48448), lever and valve system 1/2"
2шт.
18
32322
BRACKET - control lever and valve system
1шт.
19
14-616
BOLT,Hex, 3/8" - 24 x 1", Gr 5
HHCS 3/8-24 NF x 1 (32322 mt'g.) (45656), lever and valve system
2шт.
20
92-6
LOCK WASHER,3/8"
(48446), lever and valve system 3/8"
2шт.
21
25-116
NUT,Hex, 3/8"-24, G5
- reg. SF hex (3/8-24 NF) (48102), lever and valve system
2шт.
22
33446
LEVER - valve control system
1шт.
23
NLS
NO LONGER SERVICED
BUSHING - spacer, lever and valve system
1шт.
24
14-836
BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5
HHCS 1/2-20 NF x 2-1/4 (33446 mt'g.) (45711), lever and valve system
1шт.
25
195-33
WASHER,1/2"
- plain (48428), lever and valve system
1шт.
26
92-8
LOCK WASHER,1/2"
(48448), lever and valve system 1/2"
1шт.
27
31375
WASHER
BALL - grip, lever and valve system
1шт.
28
32361
SNAP RING
LINK - valve control, lever system
1шт.
29
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - adjustable (48603), lever and valve system
1шт.
30
25-116
NUT,Hex, 3/8"-24, G5
- reg. SF hex (3/8-24 NF) (48102), lever and valve system
1шт.
31
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, (48663), Lever and valve system 3/8" x 1.060"
1шт.
32
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4" (48683), lever and valve system
1шт.
33
141-2
CLEVIS PIN,1/4" x .770"
PIN - yoke (48661), lever and valve system
1шт.
34
132-7
COTTER PIN,1/16" x 3/4"
Pin, Split (Cotter), (48674), Lever and valve system 1/16" x 3/4"
1шт.
35
33364
TANK ASS'Y. - hydraulic, primary system
1шт.
36
14-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd
(33364 mt'g.) (45654), primary hydraulic system Hex, 3/8"-24 x 3/4", G5, Full Thd
3шт.
37
92-6
LOCK WASHER,3/8"
(48446), primary hydraulic system 3/8"
3шт.
38
25-116
NUT,Hex, 3/8"-24, G5
- reg. SF hex (3/8-24 NF) (48102), primary hydraulic system
3шт.
39
35072
FILLER CAP & GAUGE STICK ASS'Y., primary hydraulic system
1шт.
40
31543
BREATHER
- filter, primary hydraulic system
1шт.
41
19235
TUBE ASS'Y. - breather filter, primary hydraulic system
1шт.
42
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
- 90 degree male, 3/4 JIC to 3/4 NP (50116), primary hydraulic system
2шт.
43
19243
TUBE ASS'Y. - valve to tank, primary hydraulic system
1шт.
44
218-458
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF
CONNECTOR - male, 3/4 JIC to 1/2 NP (Used up to serial #10-28-56) (50027), primary hydraulic system
1шт.
45
218-546
ELBOW,45 Degree, 1 1/16-12" 37 Degree x 1/2"-14, NPTF
- 45 degree male, 3/4 JIC to 1/2 NP (Used from serial #10-28-56), primary hydraulic system
1шт.
46
19151
X
TUBE ASS'Y. - valve to pump (Used up to serial #12-26-55), primary hydraulic system
1шт.
47
33404
TUBE ASS'Y. - valve to pump (Used from serial #12-26-55) (Order with ref. #45 for models prior to serial #10-28-56), primary hydraulic system
1шт.
48
19150
HOSE & TUBE ASS'Y. - valve to pump (Used up to serial #12-26-56), primary hydraulic system
1шт.
33403
BRAKE LINING
HOSE & TUBE ASS'Y. - valve to pump (Used from serial #12-26-55 and up to #7060110), primary hydraulic system
1шт.
49
35964
HOSE ASS'Y. - valve to pump (Used from serial #7060110), primary hydraulic system
1шт.
50
35962
SUPPORT
TUBE ASS'Y. - valve to pump (Used from serial #7060110), primary hydraulic system
1шт.
51
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
- 90 degree male, 3/4 JIC to 3/4 NP (Used up to serial #12-26-55) (50116), primary hydraulic system
1шт.
52
218-446
HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
CONNECTOR - male, 3/4 JIC to 3/4 NP (Used from serial #12-26-55) (50026), primary hydraulic system
1шт.
53
218-459
HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF
CONNECTOR - male, 1" JIC to 3/4 NP (Used up to serial #4-27-56) (50030), primary hydrulic system
1шт.
218-448
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF
CONNECTOR - male, 1" JIC to 1" NP (Used from serial #4-27-56) (50029), primary hydraulic system
1шт.
54
19159
TUBE ASS'Y. - tank to pump (Used up to serial #12-26-55), primary hydraulic system
1шт.
55
33401
TUBE ASS'Y. - tank to pump (Used from serial #12-26-55), primary hydraulic system
1шт.
56
32798
HOSE
- low pressure, primary hydraulic system
1шт.
57
214-1420
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, primary hydraulic system
2шт.
58
19160
HYDRAULIC MOTOR
TUBE ASS'Y. - tank to pump (Used up to serial #12-26-55), primary hydraulic system
1шт.
59
39239
TUBE ASS'Y. - tank to pump (Used from serial #12-26-55), primary hydraulic system
1шт.
60
218-448
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF
CONNECTOR - male, 1" JIC to 1" NP (50029), primary hydraulic system
1шт.
61
31910
CHAIN
BRACKET - cylinder, R.H., lift hydraulic system
1шт.
62
31911
BRACKET - cylinder, L.H., lift hydraulic system
1шт.
63
14-1040
BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5
HHCS 5/8-18 NF x 2-1/2 (31910 & 31911 mt'g.) (45762), lift cylinder hydraulic system
4шт.
65
25-1110
NUT,5/8"-18, G5
- reg. SF hex (5/8-18 NF) (48106), lift cylinder hydraulic system
4шт.
66
32500
CYLINDER ASS'Y. - hydraulic (See figure 266 for breakdown), lift system
2шт.
67
16888
PIN (32500 mt'g.), lift cylinder hydraulic system
4шт.
68
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), (48739), Lift cylinder hydraulic system 1/4" x 2"
8шт.
69
38170
SUPPORT
BAR ASS'Y. - tie, lift cylinder hydraulic system
1шт.
70
92-12
LOCK WASHER,3/4"
WASHER, LOCK, (48452), Lift cylinder hydraulic system 3/4"
2шт.
71
25-1112
NUT,3/4"-16, G5
- reg. SF hex (3/4-16 NF) (48107), lift cylinder hydraulic system
2шт.
72
33457
SPACER ASS'Y., lift cylinder hydraulic system
1шт.
73
218-445
HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
CONNECTOR - male, 5/8 JIC to 1/2 NP (Used up to serial #7060361) (50024), lift cylinder hydraulic system
1шт.
74
218-498
ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP (Used from serial #7060361) (50024), lift cylinder hydraulic system 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG
1шт.
75
19253
BUSHING
TUBE ASS'Y. - valve to manifold (Used up to serial #7060361), lift cylinder hydraulic system
1шт.
76
38559
TUBE ASS'Y. - valve to manifold (Used from serial #7060361), lift cylinder hydraulic system
1шт.
77
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- 90 degree male, 5/8 JIC to 1/2 NP (50114), lift cylinder hydraulic system
1шт.
78
19250
TUBE ASS'Y. - valve to manifold, lift cylinder hydraulic system
1шт.
79
19254
BUSHING
TUBE ASS'Y. - manifold, lift cylinder hydraulic system
1шт.
80
19251
TUBE ASS'Y. - manifold, lift cylinder hydraulic system
1шт.
81
19252
X
HOSE & TUBE ASS'Y. - (Manifold to lift cylinder) (Used up to serial #7060110), lift cylinder hydraulic system
2шт.
82
35646
HOSE
ASS'Y. - manifold to lift cylinder (Used from serial #7060110) hydraulic system
2шт.
83
35972
HYD TUBE,24.812 mm Length
TUBE ASS'Y. - manifold to lift cylinder (Used from serial #7060110), hydraulic system
2шт.
84
18950
HOSE ASS'Y. - manifold to lift cylinder hydraulic system
2шт.
85
218-485
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
- 90 degree male, 5/8 JIC to 1/2 NP (50114), lift cylinder hydraulic system
3шт.
86
33888
ELBOW - 90 degree special, lift cylinder hydraulic system
1шт.
87
221-11
PLUG,Sq Hd, 1/8"-27
- pipe, ext. sq. head, 1/8 NP (41820), lift cylinder hydraulic system
1шт.
89
32978
PLATE ASSY.
CLAMP - tube (Manifold mt'g.), lift cylinder hydraulic system
2шт.
89
14-524
BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5
HHCS 5/16-24 NF x 1-1/2 (32978 mt'g.) (45633), lift cylinder hydraulic system
2шт.
90
92-5
LOCK WASHER,5/16"
(48445), lift cylinder hydraulic system 5/16"
2шт.
91
25-115
NUT,5/16"-24, G5
- reg. SF hex (5/16"-24 NF) (48101), lift cylinder hydraulic system
2шт.
92
32978
PLATE ASSY.
CLAMP - hose, lift cylinder hydraulic system
4шт.
93
14-520
BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5
(32978 mtg.) (45632), Lift cylinder hydraulic system Hex, 5/16"-24 x 1 1/4", G5
2шт.
94
92-5
LOCK WASHER,5/16"
(48445), lift cylinder hydraulic system 5/16"
2шт.
95
25-115
NUT,5/16"-24, G5
- reg. SF hex (5/16"-24 NF) (48101), lift cylinder hydraulic system
2шт.
Выбрано товаров: 99
