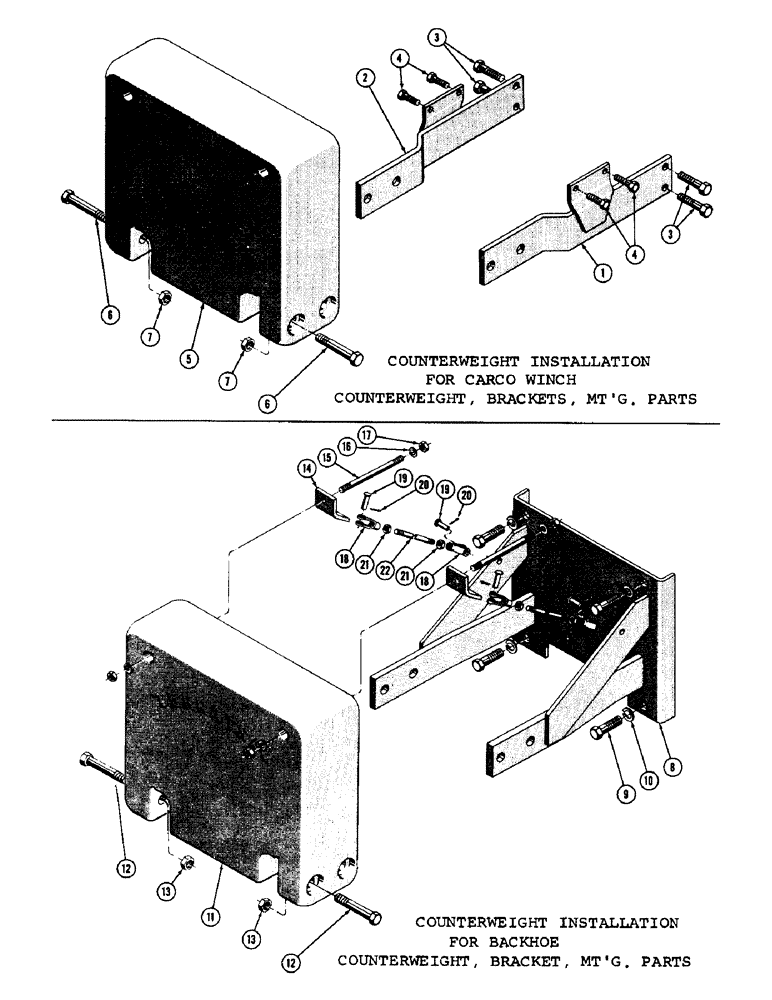

Запчасти Case 600 (140) - COUNTERWEIGHT INSTALLATION FOR CARCO WINCH, COUNTERWEIGHT, BRACKETS, MTG. PARTS (05) - UPPERSTRUCTURE CHASSIS

COUNTERWEIGHT INSTALLATION

1шт.

1

33752

SUPPORT ASS'Y. - counterweight, R.H.

1шт.

2

33753

ENGINE FLYWHEEL

SUPPORT ASS'Y. - counterweight, L.H.

1шт.

3

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

HHCS 3/4-16 NF x 3-1/4 (33752 & 33753 mt'g.) (45790)

2шт.

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS 3/4-16 NF x 2-1/2 (33752 & 33753 mt'g.) (45787)

2шт.

4

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (33752 & 33753 mt'g.) (45709)

4шт.

5

31112

O-RING

COUNTERWEIGHT

1шт.

6

14-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 5

HHCS 1"-14 NF x 5-1/2 (31112 mt'g.) (45846)

4шт.

7

131-300

NUT - lock (1"-14 NF) (17585)

4шт.

7511

SCREW,1/2" - 20 x 2.25"

COUNTERWEIGHT INSTALLATION FOR BACKHOE, counterweight, bracket, MT'G. parts

1шт.

8

35220

BRACKET ASS'Y. - counterweight attaching, installation for backhoe, bracket, MT'G. parts

1шт.

9

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS 1"-14 NF x 2-1/2 (35220 mt'g.) (45837), counterweight installation for backhoe, counterweight, bracket, MT'G. parts

4шт.

10

92-16

LOCK WASHER,1"

WASHER, LOCK, (48456), Counterweight installation for backhoe, counterweight, bracket, mounting parts 1"

4шт.

11

31112

O-RING

COUNTERWEIGHT INSTALLATION FOR BACKHOE, counterweight, bracket, MT'G. parts

1шт.

12

14-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 5

HHCS 1"-14 NF x 5-1/2 (31112 mt'g.) (45846), counterweight installation for backhoe, counterweight, bracket, MT'G. parts

4шт.

13

131-300

NUT - lock (1"-14 NF) (17585), counterweight installation for backhoe, counterweight, bracket, MT'G. parts

4шт.

14

32167

STRAP - attaching, counterweight installation for backhoe, counterweight, bracket, MT'G. parts

2шт.

15

32169

GEAR

ROD - tie, counterweight installation for backhoe, counterweight, bracket, MT'G. parts

2шт.

16

92-8

LOCK WASHER,1/2"

(48448), counterweight installation for backhoe, counterweight, bracket, MT'G. parts 1/2"

4шт.

17

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104), counterweight installation for backhoe, counterweight, bracket, MT'G. parts

4шт.

18

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable (48605), counterweight installation for backhoe, counterweight, bracket, MT'G. parts

4шт.

19

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke (48665), counterweight installation for backhoe, counterweight, bracket, MT'G. parts

4шт.

20

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695), counterweight installation for backhoe, counterweight, bracket, MT'G. parts 1/8" x 1"

4шт.

21

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104), counterweight installation for backhoe, counterweight, bracket, MT'G. parts

4шт.

22

33274

HOUSING

ROD - tie, counterweight installation for backhoe, counterweight, bracket, MT'G. parts

2шт.
