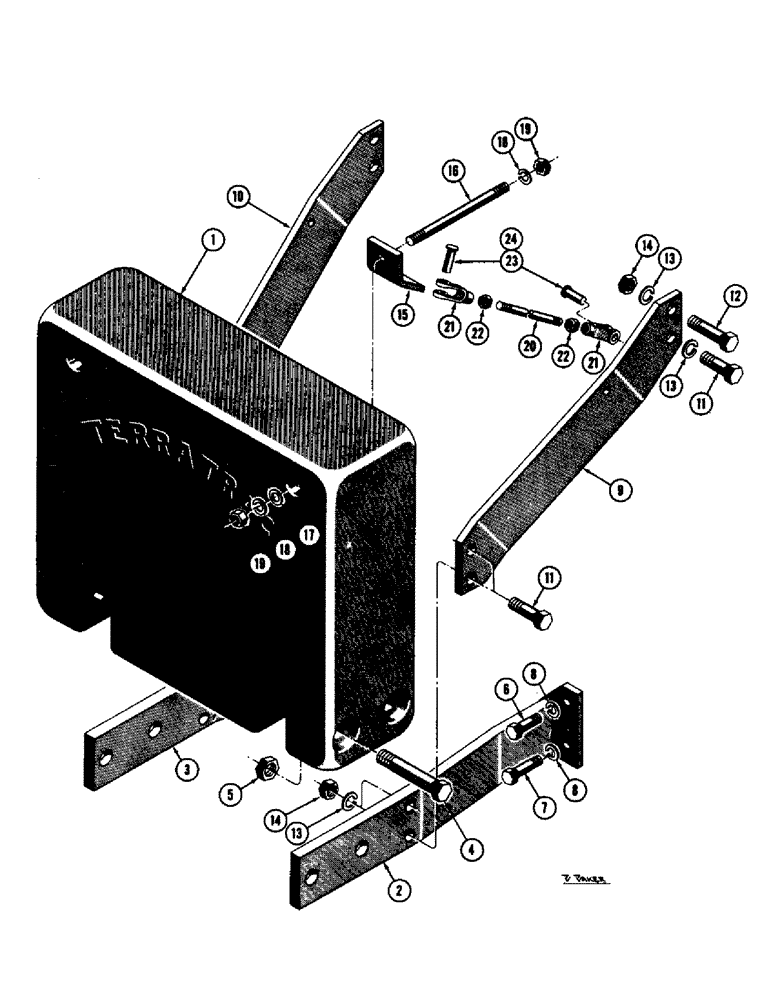

Запчасти Case 600 (138) - COUNTERWEIGHT INSTALLATION (REAR) (05) - UPPERSTRUCTURE CHASSIS

5885

CHECK VALVE

COUNTERWEIGHT INSTALLATION

1шт.

1

31112

O-RING

COUNTERWEIGHT

1шт.

2

33269

NEEDLE BEARING

SUPPORT ASS'Y. - R.H.

1шт.

3

33270

SUPPORT ASS'Y. - L.H.

1шт.

4

14-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 5

HHCS 1"-14 NF x 5-1/2 (31112 mt'g.) (45846)

4шт.

5

131-370

LOCK NUT

NUT - elastic stop (1"-14 NF) (48378)

4шт.

6

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(33269 & 33270 mt'g.) (45760) Hex, 5/8"-18 x 2", G5

2шт.

7

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS 5/8-18 NF x 2-1/2 (33269 & 33270 mt'g.) (45762)

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

4шт.

9

33301

BUSHING

PLATE - R.H.

1шт.

10

33302

PLATE - L.H.

1шт.

11

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS 3/4-16 NF x 2-1/2 (33301 & 33302 mt'g.) (45787)

6шт.

12

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

HHCS 3/4-16 NF x 3-1/4 (33301 & 33302 mt'g.) (25790)

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

8шт.

14

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

6шт.

15

32167

STRAP - attaching

2шт.

16

32169

GEAR

ROD - holding

2шт.

17

95-8

WASHER,1/2"

- plain (48408) 1/2"

2шт.

18

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

19

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

20

33274

HOUSING

ROD

2шт.

21

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable (48605)

4шт.

22

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

23

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke (48665)

4шт.

24

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

4шт.
