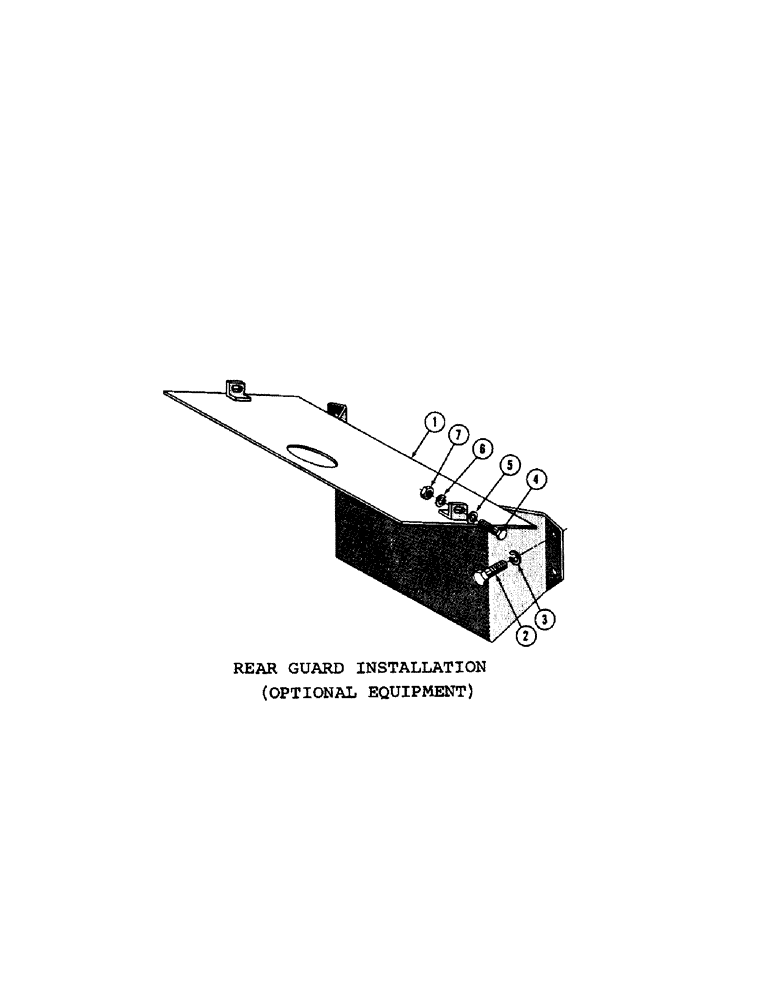

Запчасти Case 600 (136[1]) - TOOLS AND EQUIPMENT, REAR GUARD INSTALLATION (OPTIONAL EQUIPMENT) (05) - UPPERSTRUCTURE CHASSIS

7863

SHANK

GUARD INSTALLATION - rear

1шт.

1

38004

WASHER

GUARD ASS'Y. - rear

1шт.

2

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4 (38004 mt'g.) (45757)

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

4шт.

4

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (3800 mt'g.) (45656)

2шт.

5

95-6

WASHER,3/8"

(48406) 3/8"

2шт.

6

92-6

LOCK WASHER,3/8"

(48446) 3/8"

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

2шт.
