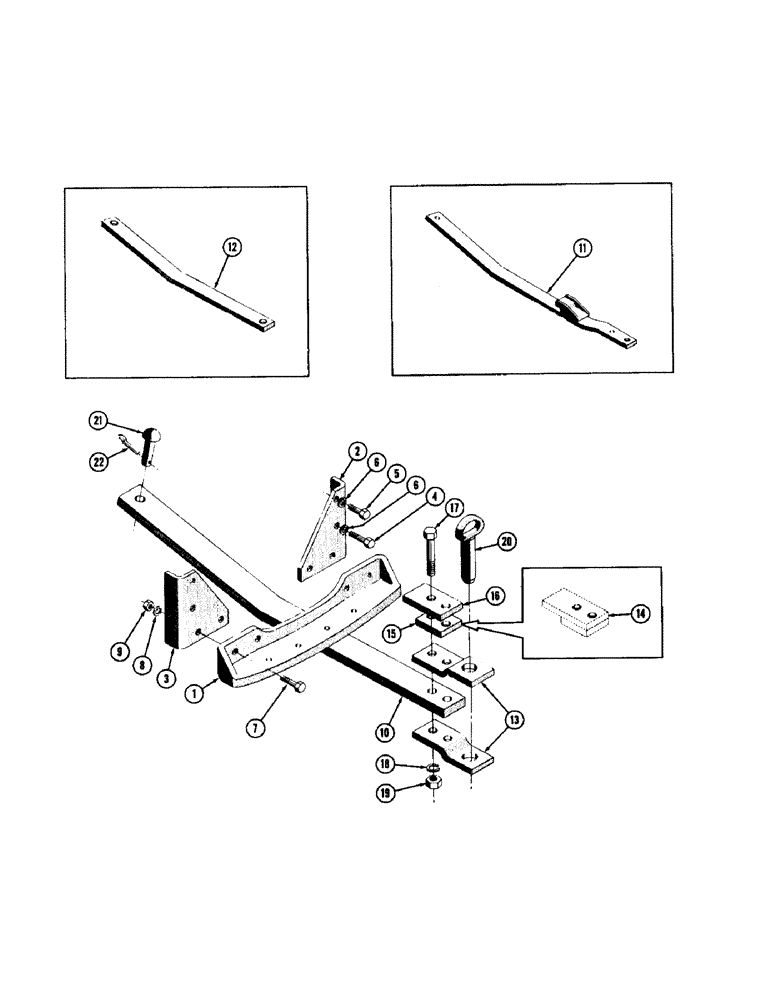

Запчасти Case 600 (132) - DRAWBAR INSTALLATION - STANDARD (INDUSTRIAL), DRAWBAR, GUIDE, MTG. PARTS (05) - UPPERSTRUCTURE CHASSIS

1

13103

GUIDE - drawbar

1шт.

2

32330

BEVEL PINION

BRACKET - R.H.

1шт.

3

32331

BRACKET - L.H.

1шт.

4

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(32330 & 32331 mt'g.) (45760) Hex, 5/8"-18 x 2", G5

2шт.

5

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(32330 & 32331 mt'g.) (45758) Hex, 5/8"-18 x 1 1/2", G5

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

4шт.

7

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(13103 mt'g.) (45760) Hex, 5/8"-18 x 2", G5

4шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

4шт.

9

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (458106)

4шт.

10

32337

DRAWBAR - industrial

1шт.

11

33817

ANGLE

DRAWBAR - agricultural, Serial Range: (Optional-32337)

1шт.

12

37721

HUB

DRAWBAR - for scarifier, Serial Range: (Optional-32337)

1шт.

13

13043

BUSHING

HITCH - drawbar

2шт.

14

NSS

NOT SOLD SEPARAT

HOOK-OVER ASS'Y. - drawbar (Used up to serial #6-18-56) (Order ref. #15 & 16)

1шт.

15

NLS

NO LONGER SERVICED

SPACER - hook-over (Used from serial #6-18-56)

1шт.

16

NLS

NO LONGER SERVICED

STRAP - hook-over (Used from serial #6-18-56)

1шт.

17

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS 3/4-16 NF x 4-1/2 (13043, 13107 & 13108 mt'g.) (45794)

2шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

19

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

2шт.

20

13073

AXLE PIN

PIN ASS'Y. - hitch

1шт.

21

13044

NUT

PIN - (32337 mt'g.)

1шт.

22

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), (48739) 1/4" x 2"

1шт.
