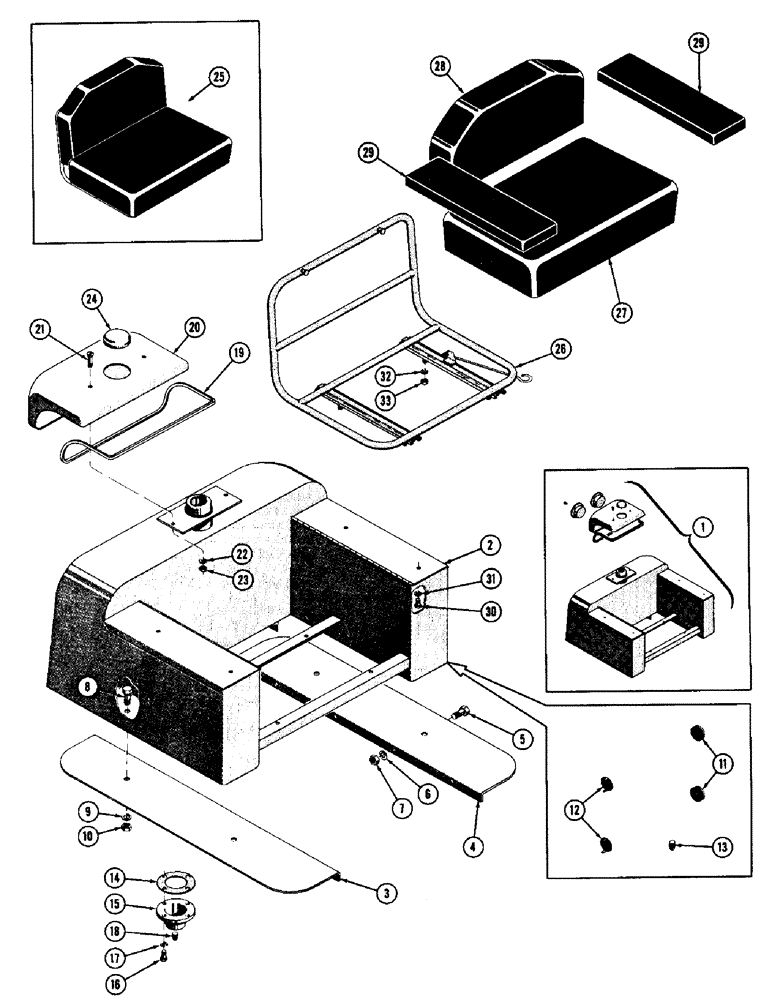

Запчасти Case 600 (126) - BODY INSTALLATION, SEAT AND TANK, SEAT FRAME, CUSHIONS, MTG. PARTS (05) - UPPERSTRUCTURE CHASSIS

1

R2247

TANK

KIT - seat & tank (Used up to serial #6-22-56)

1шт.

2

34563

SEAT & TANK ASS'Y. - (Used from serial #6-22-56)

1шт.

3

31437

FENDER - R.H.

1шт.

4

31438

FENDER - L.H.

1шт.

5

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (31437 & 31438 mt'g.) (45708)

10шт.

6

92-8

LOCK WASHER,1/2"

(48448) 1/2"

10шт.

7

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

10шт.

8

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (Seat & tank mt'g.) (45707)

4шт.

9

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

10

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

11

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

2шт.

12

49860

WASHER

BUTTON - plug

2шт.

13

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, ext. sq. hd., 3/8 NP (Used from serial #6-22-56)

1шт.

14

35621

GASKET

- drain cover (Used from serial #6-22-56)

1шт.

15

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain (Used from serial #6-22-56)

1шт.

16

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (34574 mt'g.) (Used from serial #6-22-56)

4шт.

17

92-6

LOCK WASHER,3/8"

(Used from serial #6-22-56) 3/8"

4шт.

18

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, ext. sq. hd. 1/8 NP (Used from serial #6-22-56)

1шт.

19

70214

CHANNEL

- rubber (Used from serial #6-22-56 and up to serial #10-4-56)

1шт.

35571

CHANNEL - rubber (Used from serial #10-4-56)

1шт.

20

70217

HOUSING - rear light (Used from serial #6-22-56 and up to serial #10-4-56)

1шт.

35572

ARM

HOUSING - rear light (Used from serial #10-4-56)

1шт.

21

74-620

FHMS 3/8-24 NF x 1-1/4 (70217 or 35572 mt'g.) (Used from serial #6-22-56)

2шт.

22

195-25

WASHER,3/8"

- plain (Used from serial #6-22-56) (48426)

2шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (Used from serial #6-22-56) (48102)

2шт.

24

CASE10731

FILLER CAP

CAP - fuel (Used up to serial #6-22-56)

1шт.

70901

X

CAP - fuel (Used from serial #6-22-56)

1шт.

25

34966

KIT - adjustable seat (Used up to serial #7-13-56)

1шт.

26

34869

RACK ASS'Y. - adjustable seat (Used from serial #7-13-56)

1шт.

27

33265

HUB

CUSHION - seat (Used from serial #7-13-56)

1шт.

28

34585

CUSHION - seat back (Used from serial #7-13-56)

1шт.

29

31644

CUSHION - arm rest

2шт.

30

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(31644 mt'g.) (45004) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

4шт.

32

92-5

LOCK WASHER,5/16"

(34966 or 34869 mt'g.) (48445) 5/16"

4шт.

33

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (34966 or 34869 mt'g.) (48101)

4шт.
