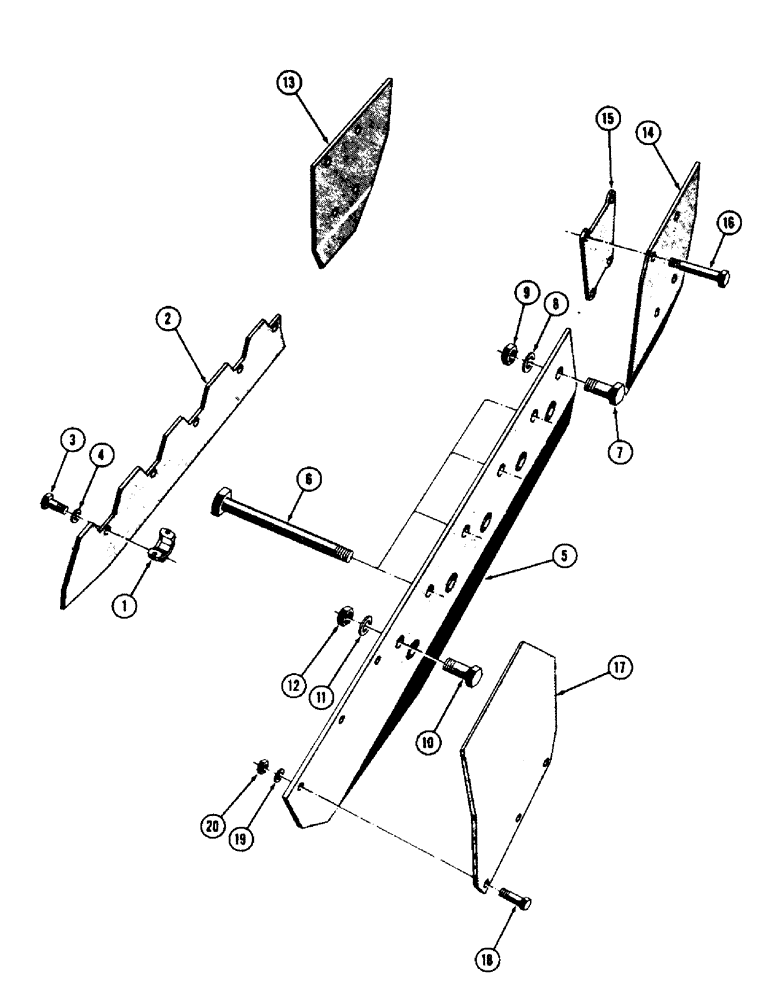

Запчасти Case 600 (122) - TRACK INSTALLATION, SPROCKET GUARDS, ROCK GUARDS, MUD GUARDS (USED FDROM S/N 3-23-56) (04) - UNDERCARRIAGE

6124

JACK

GUARD INSTALLATION - rock (Optional equipment)

1шт.

1

34131

GUARD - rock, R.H. inner

1шт.

34132

CONE PINION

GUARD - rock, L.H. inner

1шт.

2

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (34131 & 34132 mt'g.) (45707)

10шт.

3

92-8

LOCK WASHER,1/2"

(48448) 1/2"

10шт.

4

95-8

WASHER,1/2"

- plain (48408) 1/2"

10шт.

5

34133

GUARD - rock, R.H. outer

1шт.

34134

GUARD - rock, L.H. outer

1шт.

6

16-12192

BOLT (MACHINE)

HHMB 3/4-16 NF x 12 (34133 & 34134 mt'g.) (46494)

8шт.

7

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS 3/4-16 NF x 2-1/2 (34133 & 34134 mt'g.) (45787)

2шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

9

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

2шт.

10

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (34133 & 34134 mt'g.) (45708)

2шт.

11

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

12

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

13

33738

PLATE

2шт.

14

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (33738 mt'g.) (45708)

6шт.

15

92-8

LOCK WASHER,1/2"

(48448) 1/2"

6шт.

16

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

6шт.

17

34135

GUARD - idler, R.H. inner

1шт.

34136

GUARD - idler, L.H. inner

1шт.

18

34129

GUARD - idler, R.H. outer

1шт.

34130

GEARBOX

GUARD - idler, L.H. outer

1шт.

19

14-864

CAPSCREW,Hex, 1/2" - 20 x 4", Gr 5

HHCS 1/2-20 NF x 4 (34129 & 34130 mt'g.) (45718)

8шт.

20

195-33

WASHER,1/2"

- plain (48428)

8шт.

21

92-8

LOCK WASHER,1/2"

(48448) 1/2"

8шт.

22

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

8шт.
