Запчасти Case 600 (120) - TRACK INSTALLATION, SPROCKET GUARDS, ROCK GUARDS, MUD GUARDS (USED UP TO S/N 3-23-56) (04) - UNDERCARRIAGE

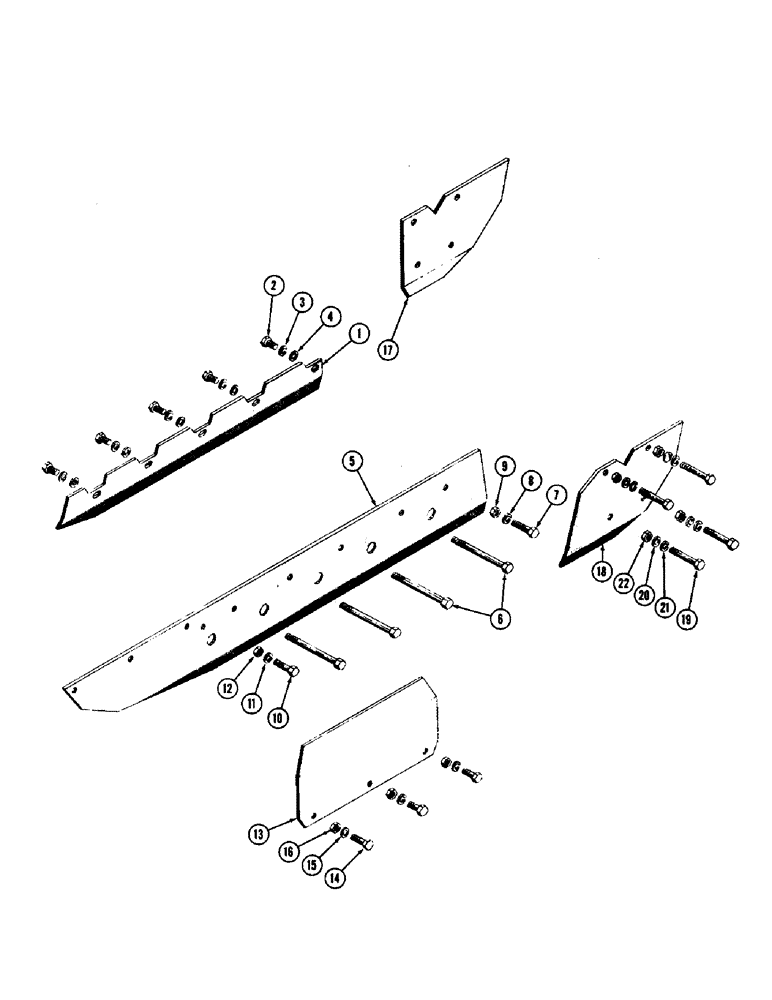

Схема запчастей Case 600 - (120) - TRACK INSTALLATION, SPROCKET GUARDS, ROCK GUARDS, MUD GUARDS (USED UP TO S/N 3-23-56) (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

6081

GUARD INSTALLATION - rock (Optional equipment)

1шт.

1

51200225

CAP

BOX - track roller, special

10шт.

2

33736

GUARD - rock, R.H. inner

1шт.

33737

GUARD - rock, L.H. inner

1шт.

3

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (33736 & 33737 mt'g.) (45708)

10шт.

4

92-8

LOCK WASHER,1/2"

(48448) 1/2"

10шт.

5

33742

GUARD - rock, R.H. outer

1шт.

33743

GUARD - rock, L.H. outer

1шт.

6

46495

SHIFTING UNIT

HHMB 3/4-16 NF x 11-5/8 (33742 & 33743 mt'g.)

8шт.

7

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS 3/4-16 NF x 1-3/4 (33742 & 33743 mt'g.) (45784)

2шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

9

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (48107)

2шт.

10

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (33742 & 33743 mt'g.) (45708)

2шт.

11

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

12

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

13

33740

PLATE - R.H. inner

1шт.

33741

PLATE - L.H. inner

1шт.

14

33733

PLATE - R.H. outer

1шт.

33743

PLATE - L.H. outer

1шт.

15

33730

PLATE - box

2шт.

16

14-872

X,Hex, 1/2" - 20 x 4 1/2", Gr 5

HHCS 1/2-20 NF x 4-1/2 (33740-1, 33733-4 & 33730 mt'g.)

8шт.

17

33738

PLATE

2шт.

18

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (33738 mt'g.) (45708)

6шт.

19

92-8

LOCK WASHER,1/2"

(48448) 1/2"

6шт.

20

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

6шт.

Выбрано товаров: 25
