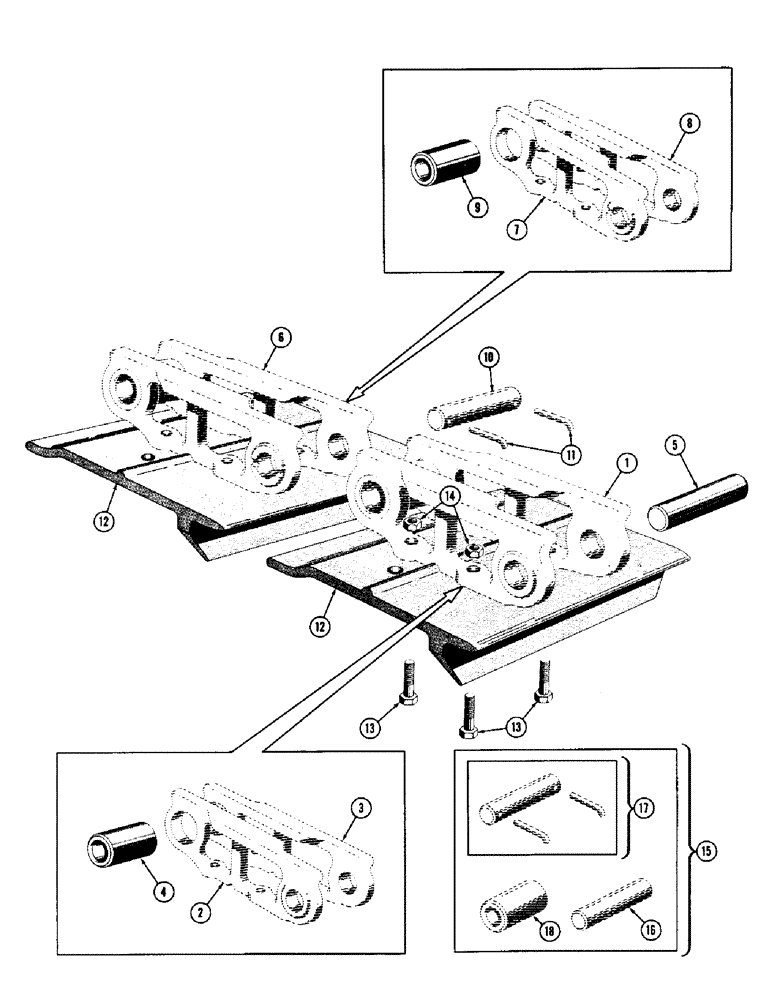

Запчасти Case 600 (116) - TRACK INSTALLATION, TRACK CHAIN, LINKS, PINS, SHOES, MTG. PARTS (USED FROM S/N 2-4-56) (04) - UNDERCARRIAGE

5483

CHAIN (AG)

ASSY, track

4шт.

R2217

KIT

Track unit

16шт.

1

NSS

NOT SOLD SEPARAT

UNIT ASSY, track chain

1шт.

2

NSS

NOT SOLD SEPARAT

LINK - track, RH

1шт.

3

NSS

NOT SOLD SEPARAT

LINK - track, LH

1шт.

4

33800

X

BUSHING - track

1шт.

5

33803

HARNESS

SPARE PART PIN - track

1шт.

R2218

KIT

Track master unit

1шт.

6

NSS

NOT SOLD SEPARAT

UNIT ASSY, track chain master

1шт.

7

NSS

NOT SOLD SEPARAT

LINK - track master, RH

1шт.

8

NSS

NOT SOLD SEPARAT

LINK - track master, LH

1шт.

9

33800

X

BUSHING - track

1шт.

R2213

PIN

KIT - track master

4шт.

10

NSS

NOT SOLD SEPARAT

PIN - track master

1шт.

11

NSS

NOT SOLD SEPARAT

LOCK - master pin

2шт.

12

31888

SPARE PART PLATE - grouser, 14"

68шт.

13

47704

WASHER,35.7mm ID x 50.8mm OD x 5mm Thk

HHCS - special, 7/16-20 NF x 1-5/8 (Used up to S/N 3-11-56)

272шт.

46944

BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8

HHCS - special, 7/16-20 NF x 1-1/2 (Used from S/N 3-11-56)

272шт.

14

11931

O-RING

NUT - lock (7/16-20 NF) (Used up to S/N 3-11-56)

272шт.

25-277

SPARE PART NUT - lock (7/16-20 NF) (Used from S/N 3-11-56)

272шт.

15

R2190

SCREW

KIT - pin & bushing

1шт.

16

REF

INSTRUCTION

PIN - track (See ref. #5)

64шт.

17

REF

INSTRUCTION

KIT - track master pin (See ref. #10 & 11)

4шт.

18

REF

INSTRUCTION

BUSHING - track (See ref. #4 & 9)

68шт.
