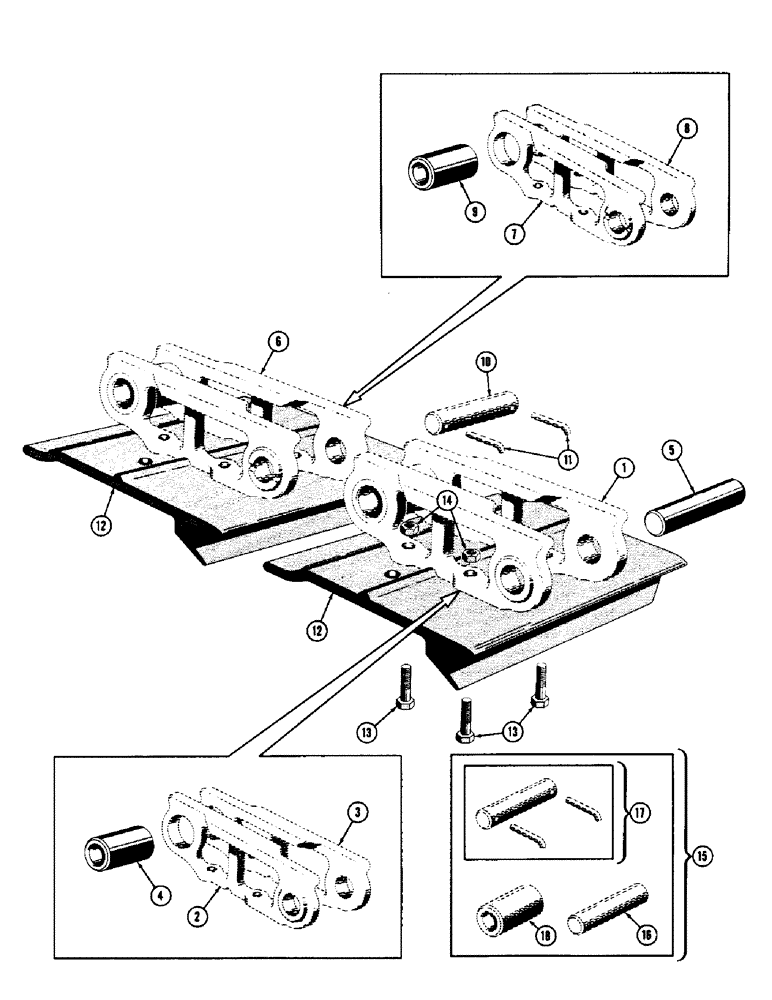

Запчасти Case 600 (114) - TRACK INSTALLATION, TRACK CHAIN, LINKS, PINS, SHOES, MTG. PARTS (USED UP TO S/N 2-4-56) (04) - UNDERCARRIAGE

R2239

SPARE PART CHAIN ASSY, track

4шт.

R2240

SPARE PART KIT - track unit

16шт.

1

NSS

NOT SOLD SEPARAT

UNIT ASSY, track chain

1шт.

2

NSS

NOT SOLD SEPARAT

LINK - track, RH

1шт.

3

NSS

NOT SOLD SEPARAT

LINK - track, LH

1шт.

4

NLS

NO LONGER SERVICED

Track, ID 1.003/1.008 O.D. 1.495/1.500

1шт.

5

32831

PIN

Track, O.D. .991/.994

1шт.

D21013

KIT

Track master unit

1шт.

6

NSS

NOT SOLD SEPARAT

UNIT ASSY, track chain master

1шт.

7

NSS

NOT SOLD SEPARAT

LINK - track master, RH

1шт.

8

NSS

NOT SOLD SEPARAT

LINK - track master, LH

1шт.

9

32830

BUSHING

Track

1шт.

D21014

KIT

Track master pin

4шт.

10

NSS

NOT SOLD SEPARAT

PIN - track master

1шт.

11

NSS

NOT SOLD SEPARAT

LOCK - master pin

2шт.

12

31888

SPARE PART PLATE - grouser, 14"

68шт.

13

47704

WASHER,35.7mm ID x 50.8mm OD x 5mm Thk

HHCS - special, 7/16-20 NF x 1-5/8

272шт.

14

11931

O-RING

NUT - lock (7/16-20 NF)

272шт.

15

D21015

SPARE PART Pin & bushing

1шт.

16

REF

INSTRUCTION

PIN - track (See ref. #15)

64шт.

17

REF

INSTRUCTION

KIT - track master pin (See ref. #10 & 11)

4шт.

18

REF

INSTRUCTION

BUSHING - track (See ref. #4 & 9)

68шт.
