Запчасти Case 600 (090) - TRANSMISSION CONTROL SYSTEM, CONTROL TOWER, LEVERS, SHAFTS, LINKAGE (03) - TRANSMISSION

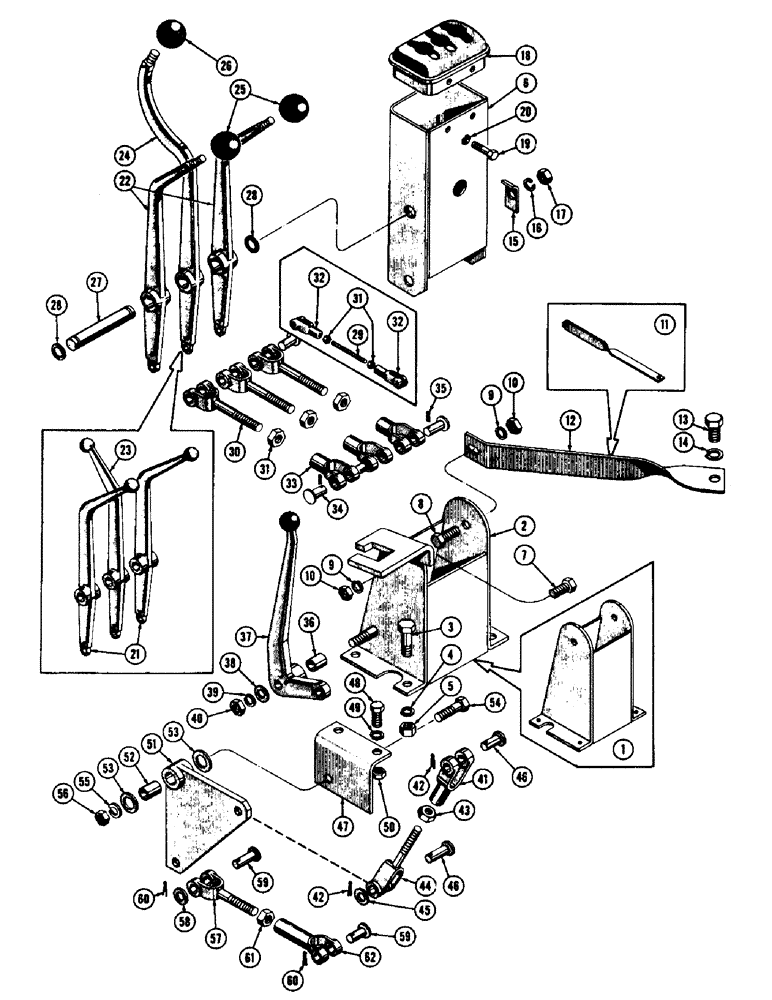

Схема запчастей Case 600 - (090) - TRANSMISSION CONTROL SYSTEM, CONTROL TOWER, LEVERS, SHAFTS, LINKAGE (03) - TRANSMISSION

Артикул

Название

Примечание

Количество

1

31995

BASE ASS'Y. - control tower (Used up to serial #10-2-56)

1шт.

2

35483

SCREW

BASE ASS'Y. - control tower (Used from serial #10-2-56)

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (35483 or 31995 mt'g.) (45707)

4шт.

4

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

5

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

6

31994

TOWER ASS'Y. - control tower (Used up to serial #3-17-56)

1шт.

34083

TOWER ASS'Y. - control tower (Used from serial #3-17-56)

1шт.

7

46934

DISC

SCREW - special, 1/2-20 NF x 1 (34083 mt'g.)

1шт.

8

46934

DISC

SCREW - special, 1/2-20 NF x 1 (34083 mt'g.)

1шт.

9

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

10

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

11

32223

STRAP - tie (Used up to serial #7060674)

1шт.

12

74522

STRAP - tie (Used from serial #7060674)

1шт.

13

14-1016

BOLT,Hex, 5/8" - 18 x 1"

HHCS 5/8-18 NF x 1 (74522 mt'g.) (Used from serial #7060674)

1шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (Used from S/N 7060674) (48450) 5/8"

1шт.

15

33182

CLAMP ASS'Y. - tower

1шт.

16

92-6

LOCK WASHER,3/8"

(48446) 3/8"

1шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

1шт.

18

31909

COVER - control tower

1шт.

19

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

(31909 mt'g.) (45003) Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

4шт.

21

NLS

NO LONGER SERVICED

LEVER - motion control (Used up to serial #3-17-56)

2шт.

22

34080

HUB

LEVER - motion control (Used up to serial #3-17-56)

2шт.

23

31930

X

LEVER - direction control (Used up to serial #3-17-56)

1шт.

24

34081

BRAKE LINING

LEVER - direction control (Used from serial #3-17-56)

1шт.

25

31375

WASHER

BALL - grip (Used from serial #3-17-56)

2шт.

26

NLS

NO LONGER SERVICED

BALL - grip (Used from serial #3-17-56)

1шт.

27

31997

SHAFT - lever pivot

1шт.

28

31996

RING - retaining

2шт.

29

32324

SNAP RING,2.44", Int, #244

LINK - trans. valve to control tower (Used up to serial #7060674)

3шт.

30

G10928

YOKE

CLEVIS - trans. valve to control tower (Used from serial #7060674)

3шт.

31

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used up to serial #7060674)

6шт.

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from serial #7060674)

3шт.

32

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable (Used up to serial #7060674) (48602)

6шт.

33

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable (Used from serial #7060674) (48602)

3шт.

34

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke (48662) 5/16" x .940"

6шт.

35

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

6шт.

36

32197

COVER PLATE

BUSHING - range control lever

1шт.

37

31962

LINE

LEVER - range control

1шт.

38

95-8

WASHER,1/2"

- plain (48408) 1/2"

1шт.

39

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

40

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

1шт.

41

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable (48605)

1шт.

42

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

2шт.

43

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

1шт.

44

48627

X

YOKE - male

1шт.

45

195-33

WASHER,1/2"

- plain (48428)

1шт.

46

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke (48665)

2шт.

47

31968

SOCKET

BRACKET - mounting range control

1шт.

48

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (31968 mt'g.) (45707)

2шт.

49

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

49

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

50

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

51

31964

DECAL

BELLCRANK - range control

1шт.

52

32430

LOCTITE

SPACER - bellcrank

1шт.

53

95-8

WASHER,1/2"

- plain (48408) 1/2"

2шт.

54

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS 1/2-20 NF x 2-1/2 (31964 mt'g.) (45712)

1шт.

55

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.

56

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

1шт.

57

48626

YOKE - male

1шт.

58

195-33

WASHER,1/2"

- plain (48428)

1шт.

59

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke (48665)

2шт.

60

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

2шт.

61

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

1шт.

62

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable (48605)

1шт.

Выбрано товаров: 65
