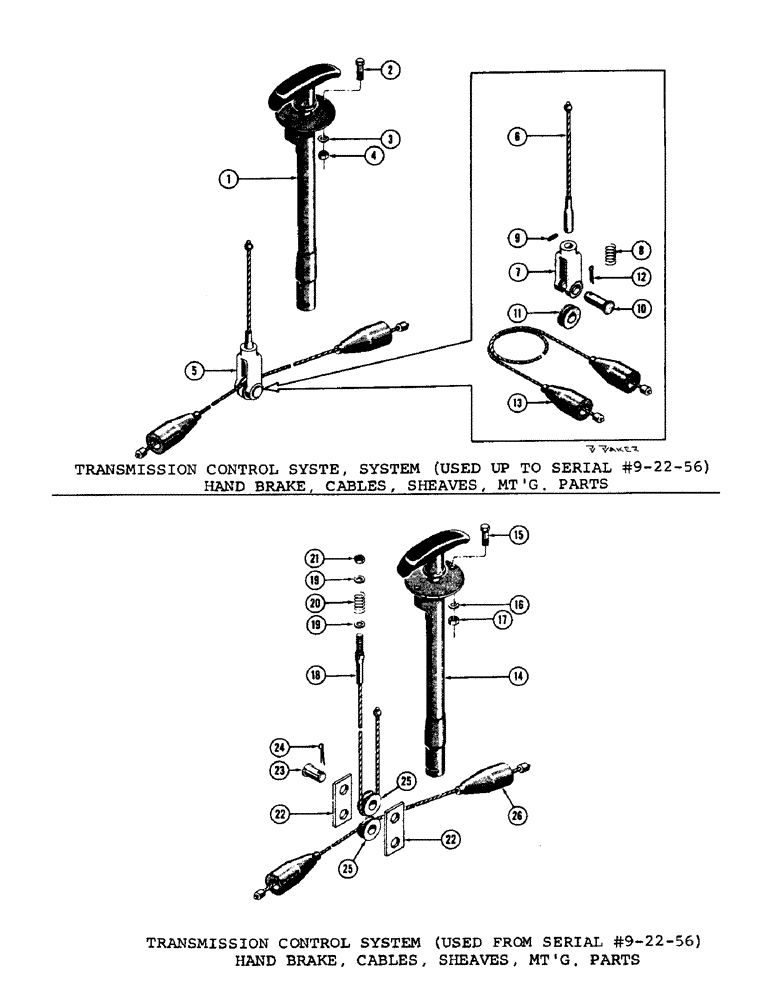

Запчасти Case 600 (088) - TRANSMISSION CONTROL SYSTEM, HAND BRAKE, CABLES, SHEAVES, MTG. PARTS (USED FROM S/N 10-2-56) (03) - TRANSMISSION

1

32212

LOCK PIN,M4 x 20, Slotted

ROD ASS'Y. - pull, hand brake

1шт.

2

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS 1/4-28 NF x 3/4 (33212 mt'g.) (45604)

2шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

2шт.

4

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100)

2шт.

5

33284

SUPPORT

YOKE ASS'Y. - hand brake

1шт.

6

33279

DISC

CABLE - hand brake

1шт.

7

33280

YOKE - end

1шт.

8

33281

SPACER

SPRING

1шт.

9

33282

BEARING HOUSING

PIN - roll

1шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

1шт.

11

32364

SPACER

ROLLER

1шт.

12

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

1шт.

13

32597

FORK

STRAND ASS'Y. - hand brake

1шт.

14

32212

LOCK PIN,M4 x 20, Slotted

ROD ASS'Y. - pull, hand brake

1шт.

15

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS 1/4-28 NF x 3/4 (33212 mt'g.) (45604)

2шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

2шт.

17

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (48100)

2шт.

18

35480

SPRING CUP

CABLE ASS'Y. - hand brake

1шт.

19

195-18

WASHER,1/4"

- plain (48424)

2шт.

20

34140

SPRING

1шт.

21

48376

NUT - lock (1/4-28 NF)

1шт.

22

35481

LOCK

PLATE - cable block

2шт.

23

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

24

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

2шт.

25

32364

SPACER

ROLLER - hand brake

2шт.

26

32597

FORK

STRAND ASS'Y. - hand brake

1шт.
