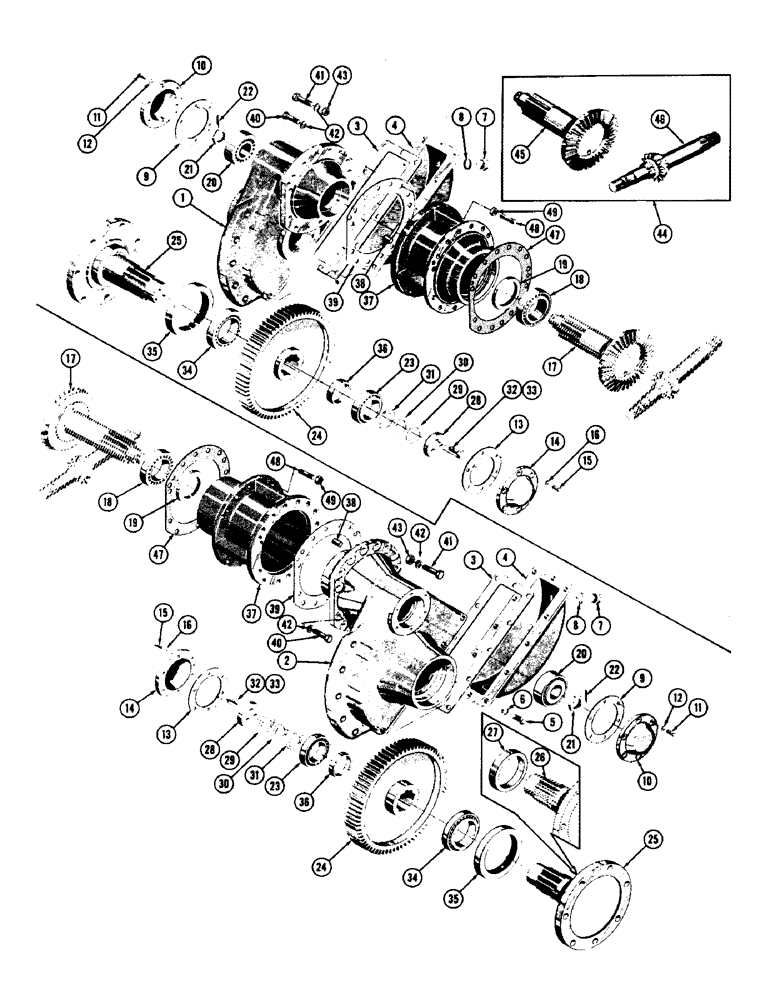

Запчасти Case 600 (084) - TRANSMISSION INSTALLATION (60" GUAGE), FINAL DRIVE & MTG. PARTS (USED FROM S/N 656-471) (03) - TRANSMISSION

39987

CONNECTING LINK

TRANSMISSION & FINAL DRIVE ASS'Y. - cont'd (60" gauge)

1шт.

39986

FINAL DRIVE ASSY. - RH

1шт.

39985

FINAL DRIVE ASSY. - LH

1шт.

1

34168

HOUSING - RH extension

1шт.

2

34169

HOUSING - LH extension

1шт.

3

32504

SPARE PART Extension housing cover

1шт.

4

38074

SPARE PART COVER - extension housing

1шт.

5

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

(Cover mt'g.) (45656)

12шт.

6

92-6

LOCK WASHER,3/8"

(48446)

12шт.

7

NLS

NO LONGER SERVICED

PLUG - filler

2шт.

8

A58613

SEALING WASHER

Special

2шт.

9

34424

SPARE PART Extension housing cover

1шт.

10

34170

BELT

SPARE PART COVER - extension housing

1шт.

11

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

(34170 mt'g.) (45657)

6шт.

12

92-6

LOCK WASHER,3/8"

(48446)

6шт.

13

34424

SPARE PART Extension housing cover

1шт.

14

34170

BELT

SPARE PART COVER - extension housing

1шт.

15

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

(34170 mt'g.) (45656)

6шт.

16

92-6

LOCK WASHER,3/8"

(48446)

6шт.

17

REF

INSTRUCTION

GEAR & SHAFT - bevel (See ref. #38)

1шт.

18

40429

SPARE PART

1шт.

O8162HT

CUP

Bearing

1шт.

19

86982914

OIL SEAL

1шт.

20

40431

SPARE PART

1шт.

A7876

GASKET

CUP - bearing

1шт.

21

32510

SPARE PART Slotted (Thin)

1шт.

22

132-59

PIN

Cotter, 1/8 dia. x 2-1/2

1шт.

23

40428

SPARE PART

1шт.

O3755AB

X

CUP - bearing

1шт.

24

33717

SPARE PART GEAR - output

1шт.

25

35674

SPRING

SHAFT ASSY. - output

1шт.

26

NSS

NOT SOLD SEPARAT

SHAFT - output

1шт.

27

34421

SCREW

SLEEVE - output shaft

1шт.

28

74541

SPARE PART Lock

1шт.

29

40587

SHIM

(.005)

1шт.

30

40588

SPARE PART (.007)

1шт.

31

40589

SPARE PART (.020)

1шт.

32

46947

SPARE PART 1/2-20 NF x 1-1/4 (Drilled)

3шт.

33

R10831

ELECTRICAL WIRE

WIRE Tie

1шт.

34

O7069AB

X

CUP - bearing

1шт.

O7327AB

X

CONE - bearing

1шт.

35

40641

GROOVED PIN

SEAL - oil

1шт.

36

34422

CHAIN

SPACER - f/d

1шт.

37

33810

CUTTING EDGE

SPACER - f/d housing

1шт.

38

70205

PIN

Dowel

2шт.

39

NLS

NO LONGER SERVICED

SHIM

1шт.

40

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

(33810 mt'g.) (45709)

2шт.

41

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

(33810 mt'g.) (45710)

13шт.

42

92-8

LOCK WASHER,1/2"

(48448)

15шт.

43

25-118

NUT,1/2"-20, G5

Ref. SF hex (48104)

13шт.

44

R2258

SPARE PART KIT - bevel gear & pinion

1шт.

45

NSS

NOT SOLD SEPARAT

GEAR & SHAFT - bevel

1шт.

46

NSS

NOT SOLD SEPARAT

PINION & SHAFT - bevel

1шт.

47

NLS

NO LONGER SERVICED

SHIM - extension housing

1шт.

48

46520

BOLT AND NUT,Hex, 1/4" - 20 x 1 1/2"

STUD 1/2-20 NF x 2-1/8 (f/d mt'g.)

29шт.

49

230-4618

LOCK NUT,1/2"-20, GA

(17586)

29шт.
