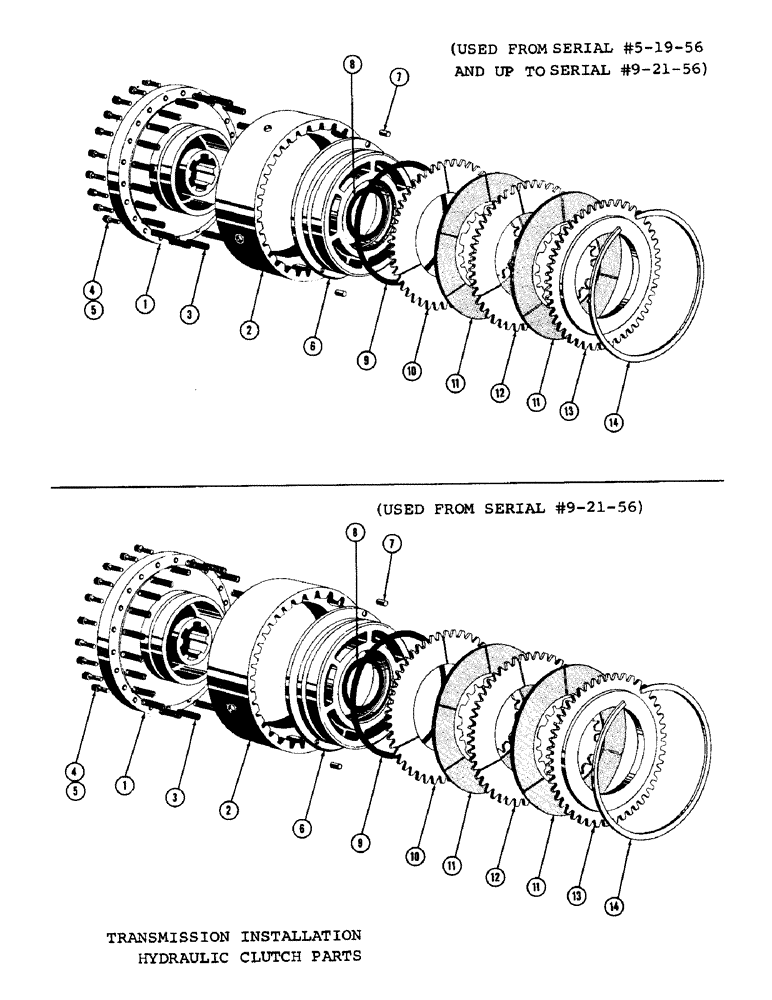

Запчасти Case 600 (072) - TRANSMISSION INSTALLATION, HYDRAULIC CLUTCH PARTS (03) - TRANSMISSION

34368

CLUTCH ASS'Y. - hydraulic (Used from serial #5-19-56 and up to serial #9-21-56)

4шт.

1

34373

BEARING ASSY

CUP - clutch

1шт.

2

34372

CARRIER - clutch cup

1шт.

3

34376

SPRING - clutch

24шт.

4

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

SCREW - Allen head 1/4-28 NF x 7/8 (34377)

24шт.

5

32642

X

WIRE - tie

1шт.

6

86900099

WASHER

PISTON - clutch

1шт.

7

34379

ANCHOR

PIN - dowel 1/4 dia. 3/4

2шт.

8

48389

SEAL - "O" ring

1шт.

9

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

10

34375

PLATE - pressure

1шт.

11

30787

DISC - clutch

2шт.

12

30784

X

PLATE - clutch

1шт.

13

34374

CLIP

PLATE - backing

1шт.

14

30785

RING

- snap

1шт.

35144

CAB GLASS ASSY

CLUTCH ASS'Y. - hydraulic (Used from serial #9-21-56)

4шт.

1

34991

ARM

CUP - clutch

1шт.

2

34732

BALL JOINT HEAD

CARRIER - clutch cup

1шт.

3

35047

ROLL PIN

SPRING - clutch

46шт.

4

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

SCREW - Allen head 1/4-28 NF x 7/8 (34377)

24шт.

5

32642

X

WIRE - tie

1шт.

6

86900099

WASHER

PISTON - cltuch

1шт.

7

34992

PIN - dowel 1/4 dia. x 27/32

2шт.

8

49389

O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

9

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

10

34375

PLATE - pressure

1шт.

11

30787

DISC - clutch

2шт.

12

30784

X

PLATE - clutch

1шт.

13

34374

CLIP

PLATE - backing

1шт.

14

30785

RING

- snap

1шт.
