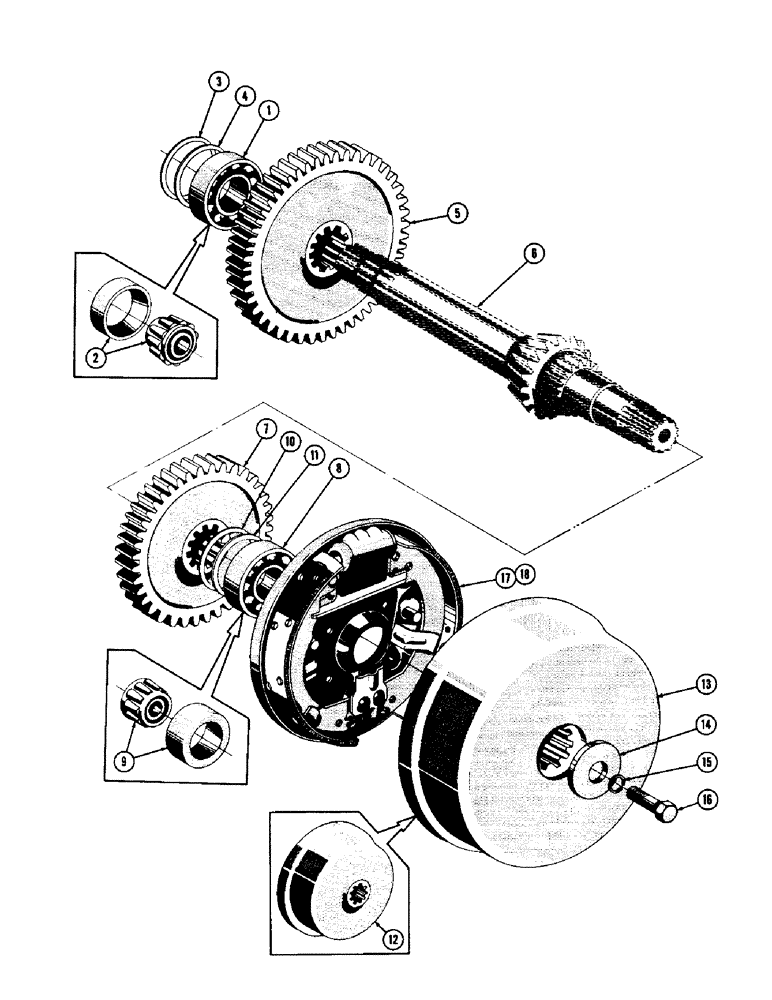

Запчасти Case 600 (070) - TRANSMISSION INSTALLATION, BRAKE SHAFT PARTS (03) - TRANSMISSION

73698

CONTROL

SPARE PART TRANSMISSION & FINAL DRIVE ASSY - cont'd. (Used up to S/N 656-471)

1шт.

74405

SPARE PART TRANSMISSION & FINAL DRIVE ASSY - (49" gauge) (Used from S/N 656-471)

1шт.

39987

CONNECTING LINK

TANSMISSION & FINAL DRIVE ASSY - (60" gauge) (Used from S/N 656-471)

1шт.

1

O1720AB

BEARING

Ball (Used up to S/N 5-19-56)

2шт.

2

148723C91

ROLLER BEARING,1.3775" ID x 2.8351" OD x 0.6704"

CONE - bearing (Used from S/N 5-19-56)

2шт.

40427

BEARING CUP

Bearing (Used from S/N 5-19-56)

2шт.

3

40594

X

SHIM - bearing (Used from S/N 9-21-56)

1шт.

4

40595

SPARE PART SHIM - bearing (Used from S/N 9-21-56)

1шт.

5

32513

GEAR - drive, low

2шт.

6

REF

INSTRUCTION

SHAFT - bevel pinion (See figure #82, ref. #37)

2шт.

7

31952

SPARE PART GEAR - drive, high

2шт.

8

O7286AB

SPARE PART BEARING - ball (Used up to S/N 5-19-56)

2шт.

9

40420

DEFLECTOR,1.5748" ID x 0.882"

CONE - bearing (Used from S/N 5-19-56)

2шт.

40421

BEARING CUP

CUP (Used from S/N 5-19-56)

2шт.

10

40592

SHIM

SPARE PART Bearing (Used from S/N 9-21-56)

1шт.

11

40593

SPARE PART Bearing (Used from S/N 9-21-56)

1шт.

12

31442

SPARE PART DRUM - brake (Used up to S/N 5-19-56)

2шт.

13

34408

SPARE PART Brake (Used from S/N 5-19-56)

2шт.

14

32506

SPARE PART

2шт.

15

92-8

LOCK WASHER,1/2"

(48448)

2шт.

16

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

(31442 mt'g.) (Used up to S/N 5-19-56)

2шт.

13816

LOCK PIN

HHCS 1/2-13 NC x 1 (34408 mt'g.) (Used from S/N 5-19-56)

2шт.

17

31476

SPARE PART BRAKE & CYLINDER ASSY - hydraulic, RH (See page #78 for breakdown)

1шт.

18

31477

BUSHING

BRAKE & CYLINDER ASSY - hydraulic, LH (See figure #78 for breakdown)

1шт.
