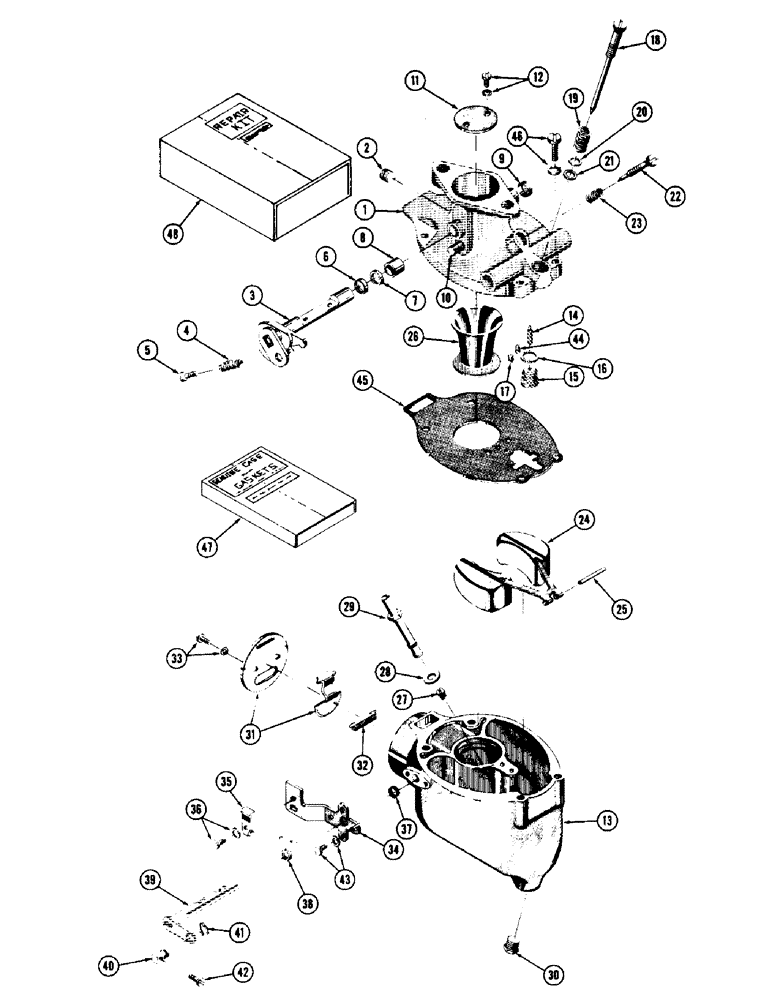

Запчасти Case 600 (034) - 11984 CARBURETOR ASSEMBLY (MARVEL SCHEBLER #10-3976-1) (USED FROM S/N 6-30-56) (02) - FUEL SYSTEM

11984

ADAPTER

CARBURETOR ASS'Y.

1шт.

277-1459

BODY ASS'Y. - throttle

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - throttle

1шт.

2

15-274

PLUG - idle drilling

1шт.

3

13-1197

SHAFT, STOP & LEVER ASS'Y. - throttle

1шт.

4

24-262

SPRING - throttle stop screw

1шт.

5

15-42

SCREW - throttle stop

1шт.

6

55-216

RETAINER - throttle shaft packing

1шт.

7

44-35

PACKING - throttle shaft

1шт.

8

60-260

BUSHING - throttle shaft

2шт.

9

55-214

CUP - throttle shaft

1шт.

10

62-167

PIN - throttle stop

1шт.

11

14-163

SHAFT

FLY - throttle

1шт.

12

15-483

SCREW - throttle fly

2шт.

13

10-3222

BODY ASS'Y. - carburetor

1шт.

233-543

VALVE, SEAT & GASKET ASS'Y. - float

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - float

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT - float valve

1шт.

16

16-4

GASKET - float valve seat

1шт.

17

49-165

JET - idle

1шт.

43-620

NEEDLE ASS'Y. - main adjusting, complete

1шт.

18

43-631

NEEDLE ASS'Y. - main adjusting

1шт.

19

24-A1

SPRING - main adjusting needle

1шт.

20

78-299

WASHER - main adjusting needle

1шт.

21

16-491

GASKET - main adjusting needle

1шт.

22

43-58

NEEDLE - idle adjusting

1шт.

23

24-340

SPRING - idle needle

1шт.

24

30-621

FLOAT & LEVER ASS'Y.

1шт.

25

32-16

SHAFT - float

1шт.

26

46-A9

VENTURI

1шт.

27

49-224

JET - power

1шт.

28

16-492

X

GASKET - nozzle

1шт.

29

47-459

NOZZLE - main

1шт.

30

99-7

PLUG - drain

1шт.

31

27-548

FLY ASS'Y. - choker

1шт.

32

24-292

SPRING - choke fly flapper

1шт.

33

15-483

SCREW - choker fly

2шт.

29-521

BRACKET & CLIP ASS'Y. - choke

1шт.

34

29-95

BRACKET - choke

1шт.

35

29-81

CLIP - choke bracket

1шт.

36

15-A93

SCREW - choke bracket

1шт.

37

44-38

PACKING - choke shaft

1шт.

38

24-213

SPRING - choke return

1шт.

26-667

SHAFT & LEVER ASS'Y. - choke

1шт.

39

NSS

NOT SOLD SEPARAT

SHAFT & LEVER - choke

1шт.

40

28-49

SWIVEL - choke

1шт.

41

82-16

PIN - cotter, choke swivel

1шт.

42

15-285

SCREW - choke swivel

1шт.

43

15-A93

SCREW - choker bracket

1шт.

44

49-193

ECONOMIZER - jet

1шт.

45

16-A12

GASKET -, Serial Range: body-bowl

1шт.

46

15-A85

SCREW -, Serial Range: body-bowl

4шт.

47

16-594

KIT - gasket

1шт.

48

286-1138

KIT - carburetor

1шт.
