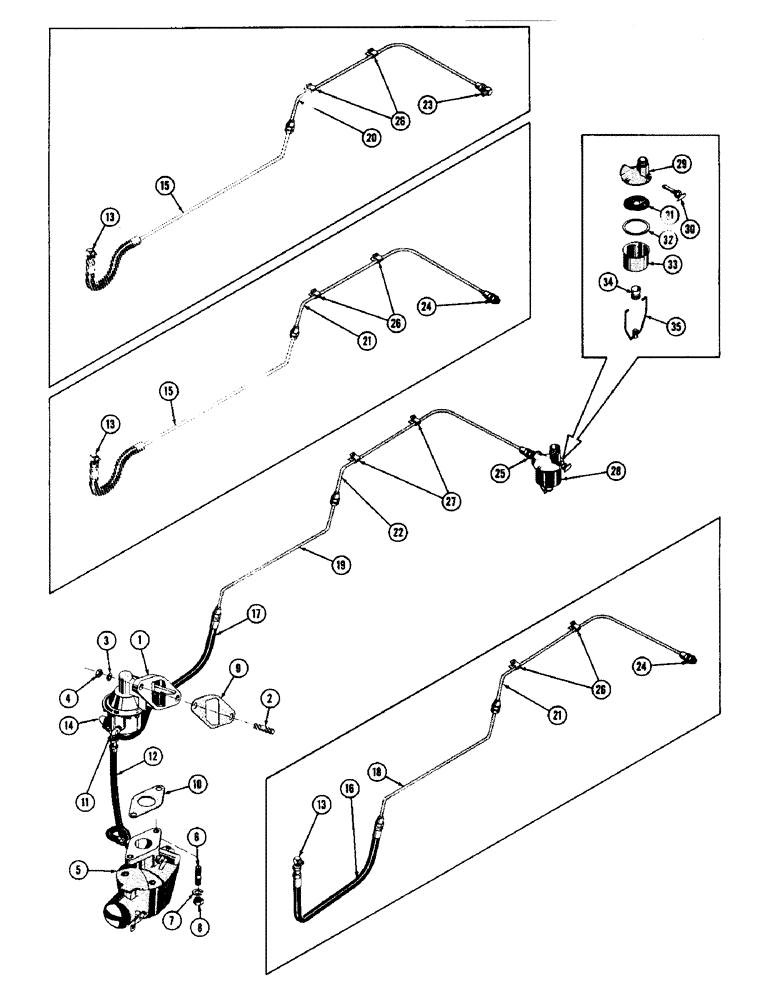

Запчасти Case 600 (030) - ENGINE FUEL SYSTEM, CARBURETOR, FUEL PUMP, STRAINER, LINES, FITTINGS (02) - FUEL SYSTEM

1

10023

PUMP ASSY - fuel

1шт.

2

REF

INSTRUCTION

STUD 5/16-18 NC x 1-1/4 (See figure #10, ref. #25)

2шт.

3

48465

BUSHING

WASHER - heavy sec. lock

2шт.

4

47861

KNOB

NUT - light SF hex (5/16-18 NC)

2шт.

5

11481

SPARE PART CARBURATOR ASSY - (Used up to S/N 6-30-56) (See figure #32 for breakdown)

1шт.

11984

ADAPTER

CARBURETOR ASSY - (Used from S/N 6-3056) (See figure #34 for breakdown)

1шт.

6

10227

STUD 3/8-16 NC x 1-7/16 (Carb. mt'g.)

2шт.

7

92-6

LOCK WASHER,3/8"

(48446)

2шт.

8

30438

X

NUT NUT - hex (3/8-16 NC)

2шт.

9

10123

SPARE PART Fuel pump

1шт.

10

30160

GASKET

, Serial Range: Carburetor-manifold

1шт.

11

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

12

10026

HOSE ASSY - fuel, Serial Range: pump-carb

1шт.

13

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Male, 1/8 NP to 3/8 JIC (Used up to S/N 7060843) (50107)

1шт.

14

222-767

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/8" NPT

Male, 1/8 NP to 3/8 SAE (Used from S/N 7060843)

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE & HOSE ASSY - fuel line (Used up to S/N 12-28-56) (Order ref. #16 and 17)

1шт.

16

36606

PIPE

HOSE ASSY - fuel line (Used from S/N 12-28-56 and up to S/N 7060843)

1шт.

17

51045

HOSE ASSY - fuel line (Used from S/N 7060843)

1шт.

18

36604

GEAR

TUBE ASSY - fuel line (Used from S/N 12-28-56 and up to S/N 7060843)

1шт.

19

39933

SHIM

SPARE PART TUBE ASSY - fuel line (Used from S/N 7060843)

1шт.

20

19238

TUBE ASSY - fuel line (Used up to S/N 2-7-56)

1шт.

21

33418

TUBE ASSY - fuel line (Used from S/N 2-7-56 and up to S/N 7060843)

1шт.

22

NLS

NO LONGER SERVICED

PN 32232; TUBE ASSY - fuel line (Used from S/N 7060843)

1шт.

23

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Male, 1/8 NP to 3/8 JIC (Used up to S/N 7060843)

1шт.

24

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Male, 1/8 NP to 3/8 JIC (Used from S/N 2-7-56 and up to S/N 7060843)

1шт.

25

222-808

CONNECTOR - male, 1/8 NP to 3/8 SAE (Used from S/N 7060843)

1шт.

26

33700

SPARE PART Tube (Used up to S/N 7060843)

2шт.

27

49837

CLAMP

Tube (Used from S/N 7060843)

2шт.

28

03990AB1

STRAINER ASSY - fuel

1шт.

29

75668

STARTER MOTOR

SPARE PART HEAD ASSY - fuel strainer

1шт.

30

A11205

VALVE

Shut off

1шт.

31

A11211

FILTER SCREEN

1шт.

32

A11208

GASKET

Bowl

1шт.

33

A11209

BOWL

Glass, Serial Range: (Optional-A11213)

1шт.

A11213

SPARE PART Meal (Optional A11209)

1шт.

34

A11210

ADJUSTER

CUP & NUT - bail

1шт.

35

A11212

BAIL

Bowl

1шт.
