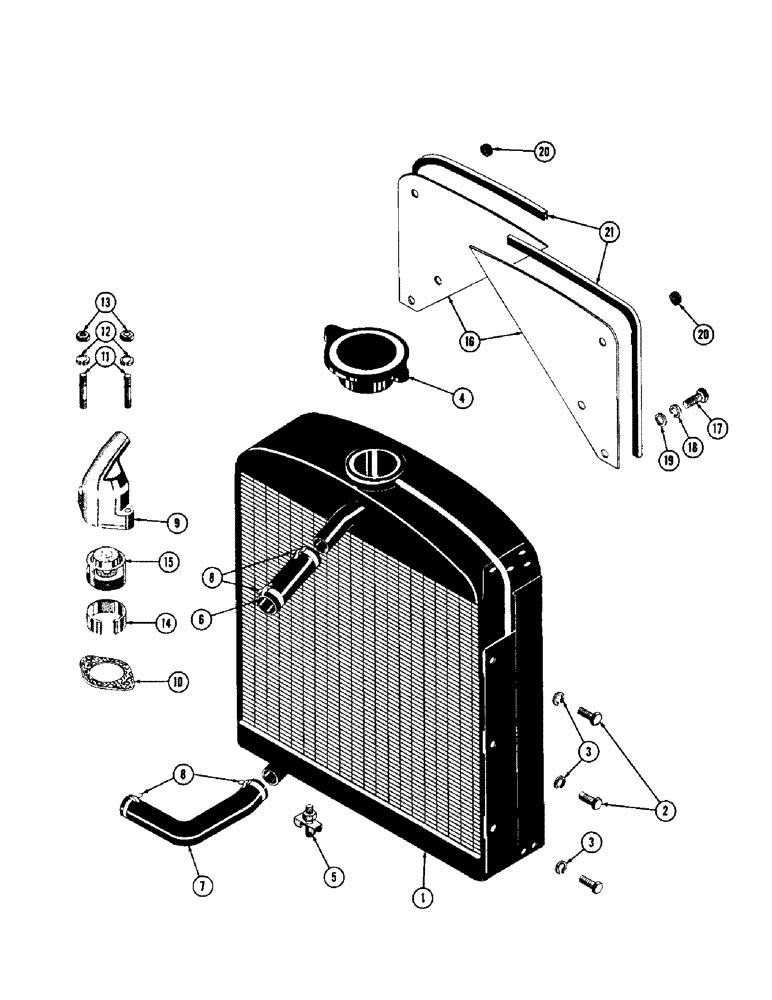

Запчасти Case 600 (036) - ENGINE COOLING SYSTEM, RADIATOR, HOSES, THEROMSTAT, ELBOWS (01) - ENGINE

1

NLS

NO LONGER SERVICED

RADIATOR ASS'Y.

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(34615 mt'g.) (45029) Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

3

92-5

LOCK WASHER,5/16"

(48445) 5/16"

6шт.

4

31988

X

CAP ASS'Y. - radiator pressure

1шт.

5

217-92

COCK

DRAINCOCK - radiator (Used up to serial #7060854)

1шт.

75030

X

DRAINCOCK - radiator (Used from serial #7060854)

1шт.

6

32363

HOSE

- radiator inlet

1шт.

7

NLS

NO LONGER SERVICED

RADIATOR HOSE , Outlet 1.50" ID x 3.75", SAE 20R1

1шт.

8

G10807

CLAMP

- hose

4шт.

9

10550

ASSEMBLY

ELBOW - cylinder water outlet

1шт.

10

10553

GASKET

- outlet elbow

1шт.

11

10082

STUD 5/16-18 NC x 2-1/8 (10550 mt'g.)

2шт.

12

92-6

LOCK WASHER,3/8"

WASHER - heavy sec. lock

2шт.

13

47861

KNOB

NUT - light SF hex (5/16-18 NC)

2шт.

14

NLS

NO LONGER SERVICED

RING - thermostat adapter

1шт.

15

10561

FITTING

THERMOSTAT ASS'Y.

1шт.

16

32391

GUARD

PLATE - air deflector

2шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(32391 mt'g.) (45002) Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

4шт.

19

95-4

WASHER,1/4"

- plain (48404)

4шт.

20

49560

BAR

- rubber (Used up to serial #7060799)

2шт.

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber (Used from serial #7060799)

2шт.

21

32339

CHANNEL - rubber

2шт.
