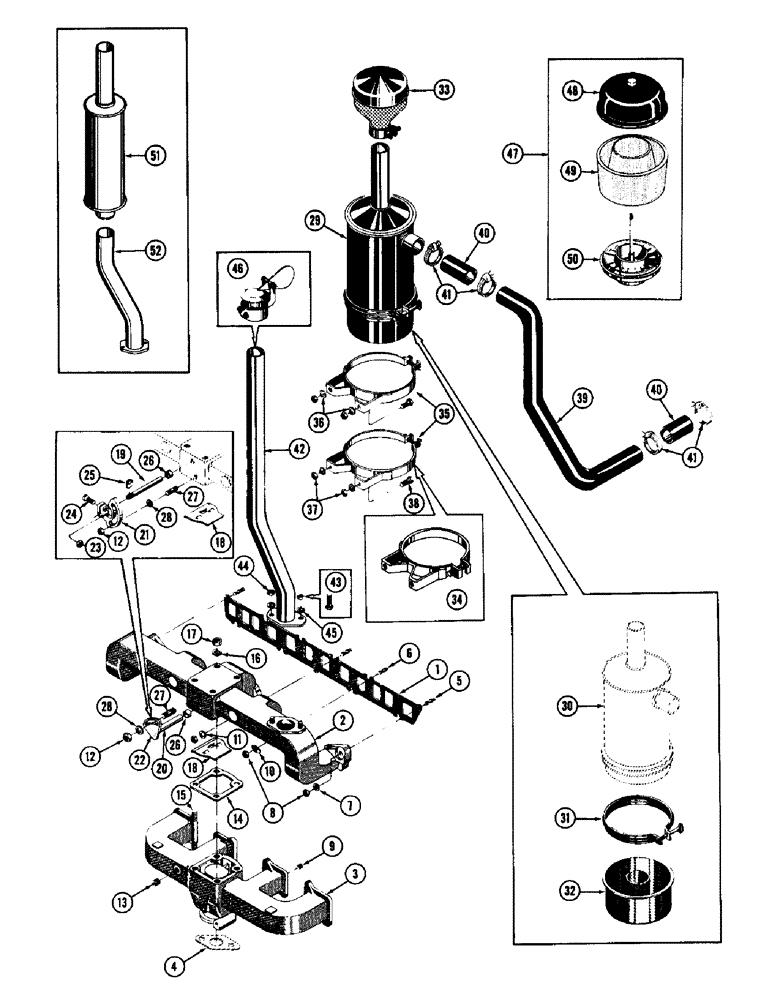

Запчасти Case 600 (028) - ENGINE ACCESSORIES INSTALLATION, MANIFOLD, MUFFLER, AIR CLEANER, MOUNTING PARTS (01) - ENGINE

5716

O-RING

MANIFOLD KIT - intake & exhaust

1шт.

1

10969

ARTICULATION

Manifold

1шт.

2

10780

SPARE PART MANIFOLD - exhaust

1шт.

3

10793

TAB SPRING

MANIFOLD - intake

1шт.

4

REF

INSTRUCTION

GASKET - carb. to manifold (See figure #30, ref. #10)

1шт.

5

REF

INSTRUCTION

STUD 3/8-16 NC x 1-3/4 (10780 mt'g.) (See figure #10, ref. #28)

3шт.

6

REF

INSTRUCTION

STUD 3/8-16 NC x 1-1/2 (Manifold mt'g.) (See figure #10, ref. #27)

8шт.

7

10641

PIPE FITTING

WASHER - plain, copper

2шт.

8

10452

SEALING RING

SEALRING NUT - brass (3/8-16 NC)

11шт.

9

221-11

PLUG,Sq Hd, 1/8"-27

Pipe, 1/8 NP (41820)

2шт.

10

48556

ROD

SPARE PART WASHER -, Serial Range: manifold-c/case

6шт.

11

VT4504

WASHER

3шт.

12

47860

NUT - light SF hex (1/4-20 NC)

1шт.

13

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

Pipe, cts'k. head, 3/8 NP

1шт.

14

NLS

NO LONGER SERVICED

GASKET - manifold

1шт.

15

10964

HOUSING

STUD - 3/8-16 NC x 3-5/16, Serial Range: (10780-10793)

4шт.

16

10096

NUT

WASHER - plain

4шт.

17

10452

SEALING RING

SEALRING NUT - brass (3/8-16 NC)

4шт.

18

10792

WOODRUFF KEY

VALVE - exhaust manifold heat control

1шт.

19

10832

SHAFT - heat control valve (Used up to S/N 9-21-57)

1шт.

20

17497

SPARE PART Heat control valve (Used from S/N 9-21-57)

1шт.

21

10798

TAB SPRING

SECTOR - heat control valve (Used up to S/N 9-21-57)

1шт.

22

17498

ADAPTER

SECTOR - heat control valve (Used from S/N 9-21-57)

1шт.

23

30277

X

NUT - lock (#10-32) (Used up to S/N 9-21-57)

1шт.

24

10836

SCREW #10-32 x 3/4 (Used up to S/N 9-21-57)

1шт.

25

NLS

NO LONGER SERVICED

KEY - heat valve sector (Used up to S/N 9-21-57)

1шт.

26

10787

BUSHING - heat control valve

2шт.

27

10965

ARTICULATION

STUD 1/4-20 NC x 1 (Heat control valve mt'g.)

1шт.

28

95-4

WASHER,1/4"

(48404)

1шт.

29

32399

SPARE PART CLEANER ASSY - air

1шт.

30

NSS

NOT SOLD SEPARAT

BODY ASSY - air cleaner

1шт.

31

A8297

CLAMP

ASSY - oil cup retaining

1шт.

32

32545

SEAL

CUP ASSY - oil

1шт.

33

10194

KNOB

CAP - air cleaner inlet (Used up to S/N 7-20-57)

1шт.

10804

TAB SPRING

Air cleaner inlet (Used from S/N 7-20-57)

1шт.

34

32552

BAND

Air cleaner mt'g. (Used up to S/N 1-11-56)

1шт.

35

32685

GLASS

BAND - air cleaner mt'g. (Used from S/N 1-11-56)

2шт.

36

92-5

LOCK WASHER,5/16"

(48445)

4шт.

37

9635082

NUT,5/16" - 18, Gr 5

Reg. SF hex (32399 mt'g.) (Used up to S/N 7060799)

4шт.

38

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

(32399 mt'g.) (Used from S/N 7060799)

4шт.

39

32249

HOSE CLIP

TUBE - air cleaner (Used up to S/N 7060799)

1шт.

39254

TUBE - air cleaner (Used from S/N 7060799)

1шт.

40

32530

LOCTITE

HOSE - low pressure

2шт.

41

G10807

CLAMP

Hose

4шт.

42

32333

SPARE PART ASSY - exhaust

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(32333 mt'g.) (Used up to S/N 5-16-57)

2шт.

44

25-106

NUT,3/8"-16, G5

Reg. SF hex (32333 mt'g.) (Used from S/N 5-16-57)

2шт.

45

92-6

LOCK WASHER,3/8"

(48446)

2шт.

46

G45048

CAP

ASSY - rain (Optional equipment)

1шт.

47

73188

X

AIR PRE-CLEANER ASSY (Optional equipment)

1шт.

48

73187

COVER

ASSY - pre-cleaner

1шт.

49

NLS

NO LONGER SERVICED

BODY - pre-cleaner

1шт.

50

73189

TUBE

SPARE PART SLEEVE ASSY - pre-cleaner

1шт.

MUFFLER INST. (Optional equipment)

1шт.

51

39141

SPACER

SPARE PART MUFFLER - exhaust

1шт.

52

39140

ROD

EXHAUST - assy

1шт.
