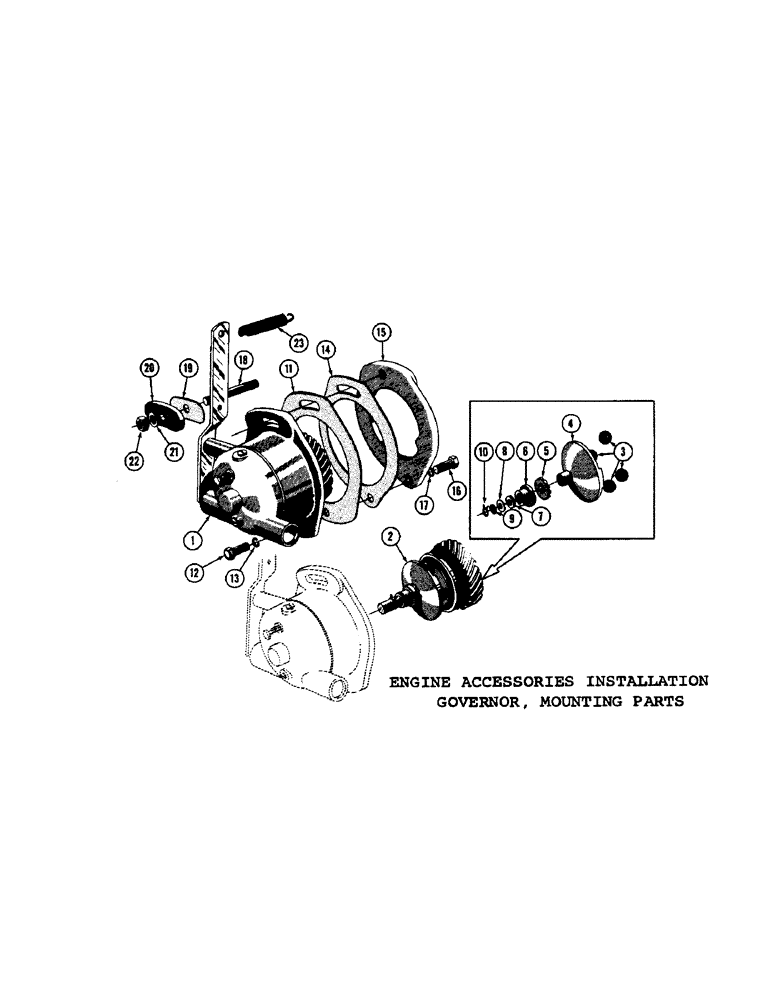

Запчасти Case 600 (026) - ENGINE ACCESSORIES INSTALLATION, GOVERNOR, MTG, PARTS (01) - ENGINE

1

10456

GOVERNOR ASS'Y. - complete

1шт.

NSS

NOT SOLD SEPARAT

BODY ASS'Y. - governor

1шт.

2

10458

SEALING RING

WORK ASS'Y. - governor

1шт.

NSS

NOT SOLD SEPARAT

GEAR & SHAFT ASS'Y. - governor

1шт.

3

VT3268

BALL - governor, 3/4 dia

4шт.

4

10465

SEALING RING COLLAR

RACE - upper, governor

1шт.

5

10466

BEARING - thrust

1шт.

6

10467

SEALING RING COLLAR

BASE - governor lever fork

1шт.

7

10468

WASHER - thrust, lever fork base

1шт.

8

10469

WASHER - thrust, lever fork base

1шт.

9

10472

SEALING RING COLLAR

PLATE - thrust

1шт.

10

10470

CLIP - governor works retaining

1шт.

11

10480

GASKET - governor to gear cover

1шт.

12

10295

BUSHING

SCREW - 3/8-16 NC x 1-18 (10456 mt'g.)

1шт.

13

92-6

LOCK WASHER,3/8"

(48446) 3/8"

1шт.

14

VT3694

X

GASKET - mag. hole cover

1шт.

15

10321

COVER - magneto drive hole

1шт.

16

10323

SCREW 3/8-16 NC x 1-3/8 (10321 mt'g.)

1шт.

17

92-6

LOCK WASHER,3/8"

(48446) 3/8"

1шт.

18

10322

STUD 3/8-16 NC x 3-7/8 (10456 & 10321 mt'g.)

1шт.

19

10482

BUSHING

GASKET - governor flange

1шт.

20

10481

PLATE - governor gasket

1шт.

21

10498

FLANGE

WASHER - copper

1шт.

22

30438

X

NUT - hex (3/8-16 NC)

1шт.

23

10022

SPRING

ASS'Y. - governor

1шт.
