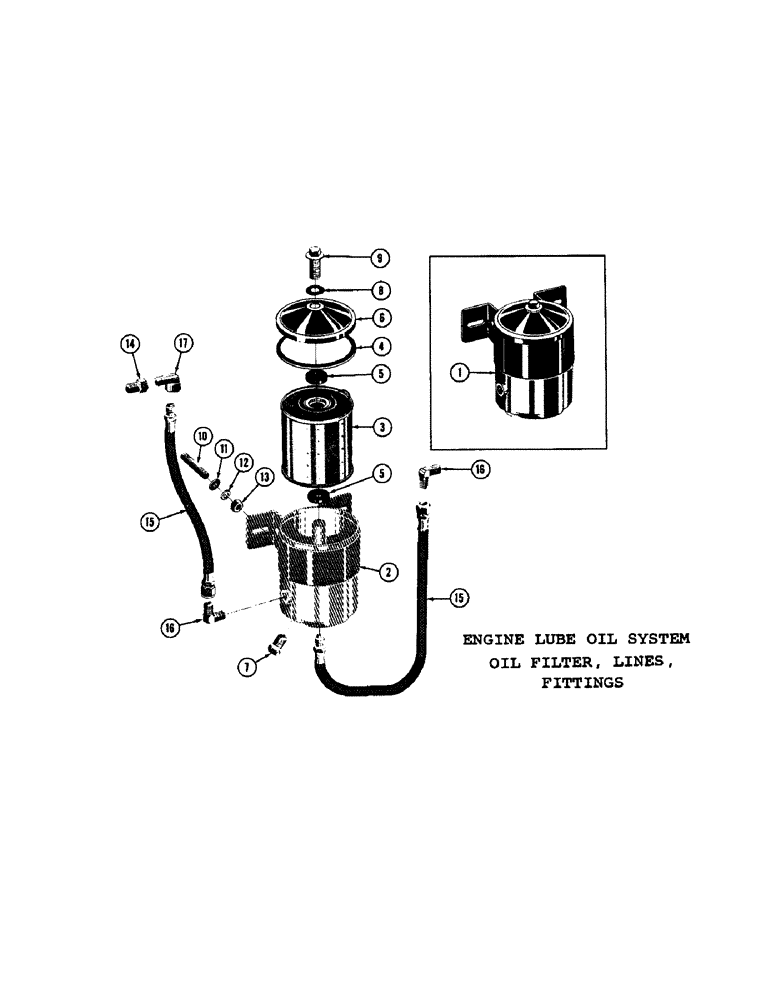

Запчасти Case 600 (026[1]) - ENGINE LUBE OIL SYSTEM, OIL FILTER, LINES, FITTINGS (01) - ENGINE

1

11583

NUT

FILTER ASS'Y. - oil

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - oil filter

1шт.

3

10017

CARTIDGE - oil filter

1шт.

4

10048

GASKET - oil filter cover

1шт.

5

10049

GASKET - oil filter cartridge

1шт.

6

10047

PINION

COVER - oil filter drain

1шт.

7

G46015

PLUG - oil filter drain

1шт.

8

10054

COLLAR

GASKET - oil filter cover screw

1шт.

9

11921

COLLAR

SCREW - oil filter cover

1шт.

10

10619

STUD 5/16-18 NC x 1 (11583 mt'g.)

2шт.

11

10620

FITTING

WASHER - plain

2шт.

12

92-5

LOCK WASHER,5/16"

(48445) 5/16"

2шт.

13

47861

KNOB

NUT - hex (5/16-18 NC)

2шт.

14

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - pipe, 1/4 NC to 1/8 NP (41640)

1шт.

15

10621

HOSE ASS'Y. - flexible oil

2шт.

16

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

to 1/4 JIC 90º, 7/16"-20, 45º Fl x 1/8" NPT

2шт.

17

10663

OLIVE

ELBOW - oil hose, 1/8 NP

1шт.
