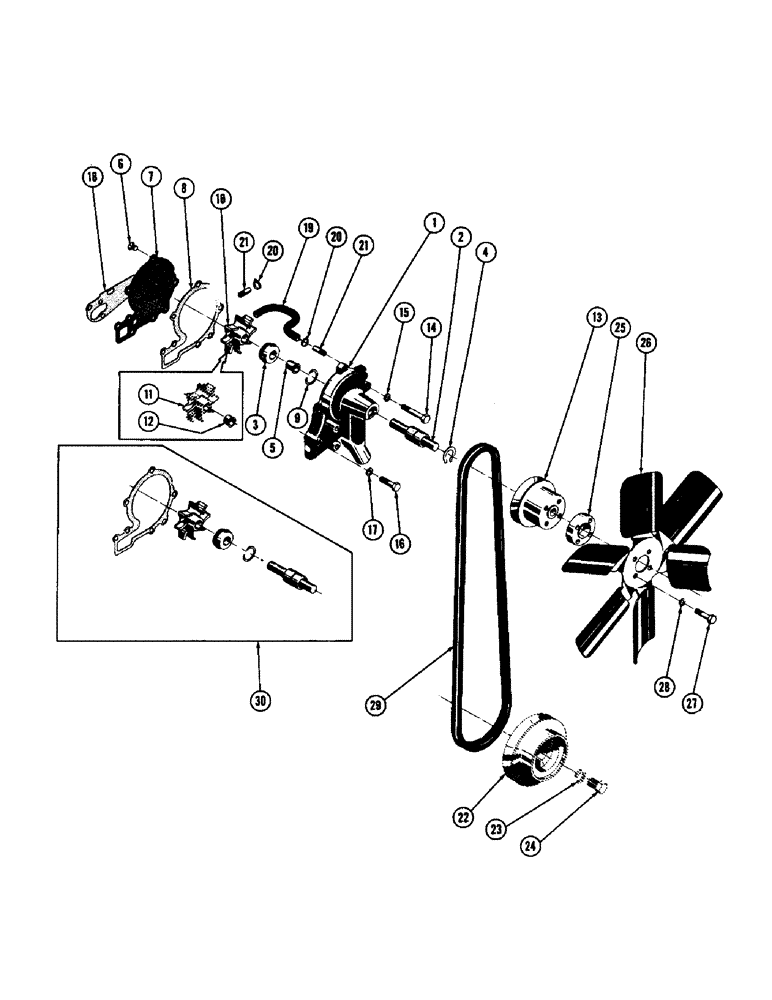

Запчасти Case 600 (024) - ENGINE ACCESSORIES INSTALLATION, WATER PUMP, FAN, FAN DRIVE (01) - ENGINE

31175

SPARE PART PUMP ASSY - water

1шт.

1

32681

BODY - water pump

1шт.

2

NLS

NO LONGER SERVICED

Water pump

1шт.

3

10503

SEAL ASSY.

Water pump

1шт.

4

10504

GASKET

RETAINER - bearing

1шт.

5

10505

SWITCH

SHEDDER - water

1шт.

6

10506

SCREW -, Serial Range: cover-body

4шт.

7

32682

COVER - water pump

1шт.

8

32683

IDLER

GASKET - water pump

1шт.

9

10509

RING, LOCKING

RING, LOCK Bearing seat

1шт.

10

10502

SPARE PART IMPELLER & INSERT ASSY - water pump

1шт.

11

NSS

NOT SOLD SEPARAT

IMPELLER - water pump

1шт.

12

72031

INSERT - impeller

1шт.

13

10592

FITTING

Fan

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(31175 mt'g) (45057)

1шт.

15

10298

COPPER WASHER

Copper

1шт.

16

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(31175 mt'g.) (45061)

2шт.

17

92-6

LOCK WASHER,3/8"

(48446)

2шт.

18

10523

BUSHING

GASKET - water, Serial Range: pump-c/case

1шт.

19

NLS

NO LONGER SERVICED

Water pump to outlet elbow

1шт.

20

10615

OLIVE

CLAMP - hose

2шт.

21

10628

NUT

NIPPLE - pipe, 3/8 NP

2шт.

22

REF

INSTRUCTION

PULLEY - fan drive (See figure #16, ref. #27)

1шт.

23

REF

INSTRUCTION

WASHER - c/shaft pulley retaining nut (See figure #16, ref. #29)

1шт.

24

REF

INSTRUCTION

SCREW - c/shaft pulley retaining (See figure #16, ref. #30)

1шт.

25

34123

SPACER - fan (Used from S/N 3-29-56 and up to S/N 4-29-56)

1шт.

34331

SPARE PART SPACER - fan (Used from S/N 4-29-56)

1шт.

26

34122

SPARE PART BLADE ASSY - fan (Suction) (Standard)

1шт.

34337

PRESSURE PIPE

BLADE ASSY - fan (Pusher) (Loader only) (Used from S/N 4-17-56)

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Fan mt'g.) (Used up to S/N 3-2956)

4шт.

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

(Fan mt'g.) (Used from S/N 3-29-56)

4шт.

28

92-5

LOCK WASHER,5/16"

(48445)

4шт.

29

31170

SPARE PART BELT - fan dive (Used up to S/N 6-11-56)

1шт.

70890

SPARE PART Fan Drive, Used from S/N 6-11-56 and up to S/N 8-30-56 0.75" W

1шт.

11585

COIL

BELT - fan drive (Used from S/N 8-30-56)

1шт.

30

6050

SPARE PART REPAIR KIT - water pump

1шт.
