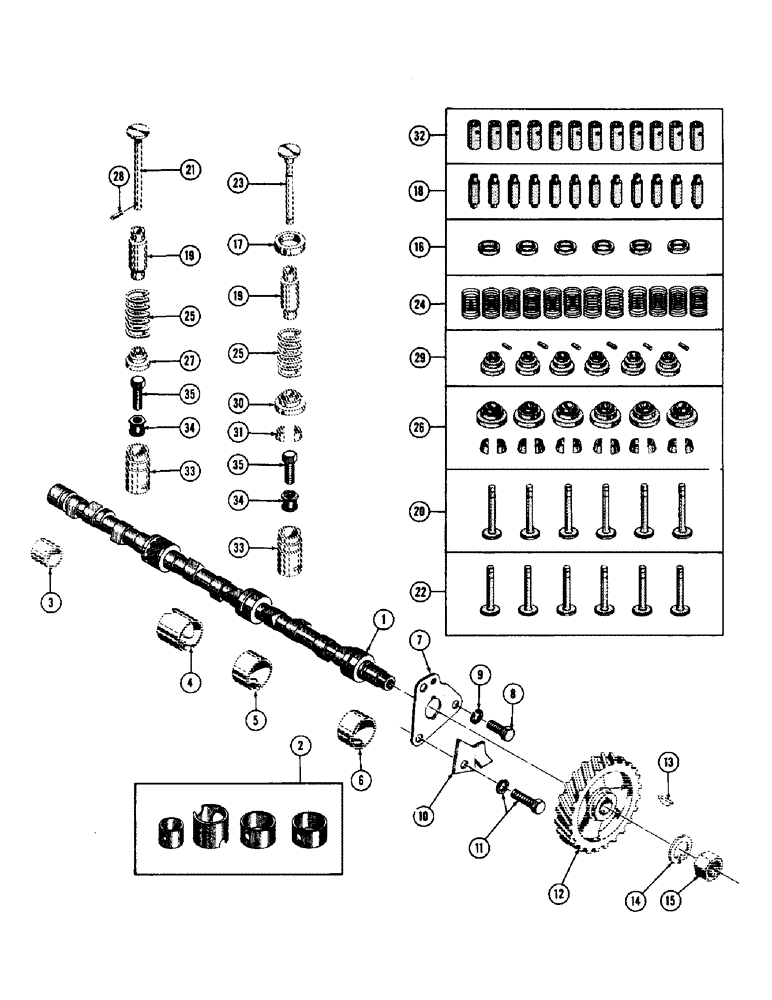

Запчасти Case 600 (020) - GASOLINE ENGINE INSTALLATION, CAMSHAFT, VALVES, SPRINGS GUIDES, RETAINERS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
10799
CAMSHAFT
1шт.
2
6048
ELEC CONNECTOR
KIT - camshaft bushing
1шт.
3
NSS
NOT SOLD SEPARAT
BUSHING
1шт.
4
NSS
NOT SOLD SEPARAT
BUSHING
1шт.
5
NSS
NOT SOLD SEPARAT
BUSHING
1шт.
6
NSS
NOT SOLD SEPARAT
BUSHING
1шт.
7
10262
SPARE PART PLATE - camshaft thrust
1шт.
8
13-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd
(10283 mt'g) (45082)
1шт.
9
92-7
LOCK WASHER,7/16"
(48447)
1шт.
10
AA10283
PLATE - oiler
1шт.
11
10264
SPARE PART HHCS & LOCKWASHER ASSY - 3/8-16 NC x 7/8 (10262 mt'g.)
2шт.
12
REF
INSTRUCTION
GEAR - camshaft timing (See figure #16, ref. #16)
1шт.
13
REF
INSTRUCTION
KEY - #16 Woodruff (See figure #16, ref. #18)
1шт.
14
REF
INSTRUCTION
NUT - lock, camshaft (See figure #16, ref. #19)
1шт.
15
REF
INSTRUCTION
NUT - special hex (7/8-18 thd.) (See figure #16, ref. #20)
1шт.
16
R-2264
INSERT KIT - exhaust valve seat
1шт.
17
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat (.010 oversize)
6шт.
18
19319
NUT
GUIDE KIT - valve
1шт.
19
NSS
NOT SOLD SEPARAT
GUIDE - valve stem
12шт.
20
NLS
NO LONGER SERVICED
VALVE KIT - intake
1шт.
21
NSS
NOT SOLD SEPARAT
VALVE - intake
6шт.
22
19321
VALVE KIT - exhaust (Roto)
1шт.
23
NSS
NOT SOLD SEPARAT
VALVE - exhaust (Roto)
6шт.
24
19322
SPRING KIT - valve
1шт.
25
NSS
NOT SOLD SEPARAT
SPRING - valve
12шт.
26
5694
SPARE PART SEAT & LOCK KIT - valve spring
1шт.
27
NSS
NOT SOLD SEPARAT
SEAT - valve
6шт.
28
NSS
NOT SOLD SEPARAT
PIN - valve seat lock
6шт.
29
R-2263
LOCK & CAP KIT - exhaust valve (Roto)
1шт.
30
NSS
NOT SOLD SEPARAT
CAP ASSY (Roto)
6шт.
31
NSS
NOT SOLD SEPARAT
LOCK - Roto valve spring
12шт.
32
NSS
NOT SOLD SEPARAT
TAPPET KIT - valve
1шт.
10341
TAPPET
ASSY - valve
12шт.
33
NSS
NOT SOLD SEPARAT
TAPPET - valve
1шт.
34
10345
NUT - valve tappet lock
1шт.
35
10344
SPARE PART Valve tappet adjusting
1шт.
Выбрано товаров: 36
