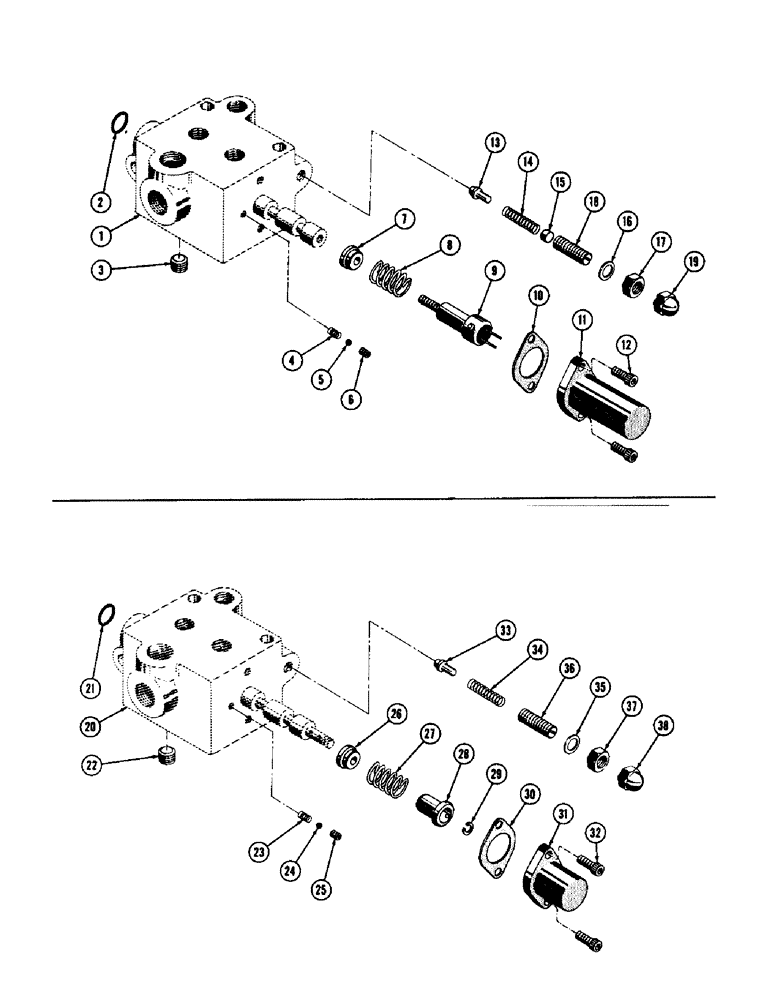

Запчасти Case 600 (300) - HYDRAULIC VALVE ASSEMBLY, BODY, SPOOL, CAP, SEALS, SPRINGS (07) - HYDRAULIC SYSTEM

16130

TUBE

VALVE ASS'Y. - hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING & SPOOL ASS'Y. - valve

1шт.

2

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

1шт.

3

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, socket head, 1/2 NP

1шт.

4

16212

HOSE

SPRING - check valve

1шт.

5

O8635AB

X

BALL - check valve

1шт.

6

16214

HOSE

SEAT - check valve

1шт.

7

16205

RETAINER - spring

1шт.

8

16204

VALVE

SPRING - spool return

1шт.

9

16206

GUIDE ASS'Y. - spring

1шт.

10

16211

HOSE

GASKET - valve cap

1шт.

11

16210

HOSE

CAP - valve, long

1шт.

12

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4 (16210 mt'g.) (48377)

2шт.

13

16227

HOSE

POPPET - relief valve

1шт.

14

NLS

NO LONGER SERVICED

SPRING - relief valve

1шт.

15

16217

BUSHING

SLUG - relief valve

1шт.

16

16219

GASKET

- relief valve

2шт.

17

25-119

NUT,9/16"-18, G5

- reg. SF hex (9/16-18 NF) (48105)

1шт.

18

NLS

NO LONGER SERVICED

SCREW - relief valve adjusting

1шт.

19

48355

NUT - cap (9/16-18 NF)

1шт.

74500

VALVE ASS'Y. - hydraulic, body, spool, cap, seals, springs

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING & SPOOL ASS'Y. - valve hydraulic, body, spool, cap, seals, springs

1шт.

21

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring, hydraulic valve ass'y., body, spool, cap, seals, springs

1шт.

22

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, socket head, 1/2 NP, hydraulic valve ass'y., body, spool, cap, seals, springs

1шт.

23

16212

HOSE

SPRING - check valve, hydraulic ass'y., body, spool, cap, seals

1шт.

24

O8635AB

X

BALL - check valve, hydraulic ass'y., body, spool, cap, seals, springs

1шт.

25

16214

HOSE

SEAT - check valve, hydraulic ass'y., body, spool, cap, seals, springs

1шт.

26

16205

RETAINER - sring, hydraulic valve ass'y., body, spool, cap, seals

1шт.

27

16204

VALVE

SPRING - spool return, hydraulic valve ass'y., body, cap, seals, springs

1шт.

28

16411

HOSE

GUIDE - spring, hydraulic valve ass'y., body, spool, cap, seals

1шт.

29

NLS

NO LONGER SERVICED

- spring guide, hydraulic valve ass'y., body, spool, cap, seals

1шт.

30

16211

HOSE

GASKET - valve cap, hydraulic ass'y., body, spool, seals, springs

1шт.

31

NLS

NO LONGER SERVICED

CAP - valve, short, hydraulic ass'y., body, spool, cap, seals, springs

1шт.

32

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4 (16412 mt'g.) (47377), hydraulic valve ass'y., body, spool, cap, seals, springs

2шт.

33

16227

HOSE

POPPET - relief valve, hydraulic ass'y., body, spool, cap, seals, springs

1шт.

34

16404

SPRING CUP

SPRING - relief valve, hydraulic ass'y., body, spool, cap, seals, springs

1шт.

35

16219

GASKET

- relief valve, hydraulic ass'y., body, spool, cap, seals, springs

2шт.

36

NLS

NO LONGER SERVICED

SCREW - relief valve adjusting, hydraulic ass'y., body, spool, cap, seals, springs

1шт.

37

25-119

NUT,9/16"-18, G5

- reg. SF hex (9/16-18 NF) (48105), hydraulic valve ass'y., body, spool, cap, seals, springs

1шт.

38

48355

NUT - cap (9/16-18 NF), hydraulic valve ass'y., body, spool, cap, seals, springs

1шт.
