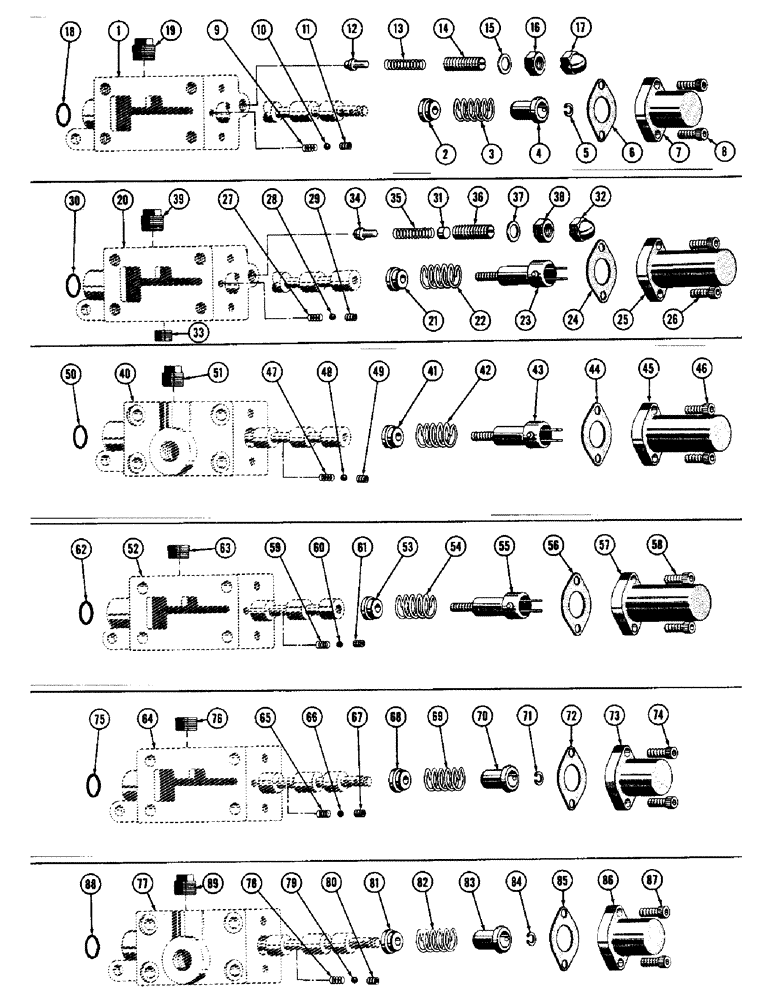

Запчасти Case 600 (296) - HYDRAULIC VALVE SECTIONS, BODIES, END CAPS, SPOOLS, SEALS, GASKETS (07) - HYDRAULIC SYSTEM

16401

SECTION ASS'Y. - end

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING & SPOOL ASS'Y. - valve

1шт.

2

16205

RETAINER - spring

1шт.

3

16204

VALVE

SPRING - spool return

1шт.

4

16411

HOSE

GUIDE - spring

1шт.

5

16413

HOSE

- spring guide

1шт.

6

16211

HOSE

GASKET - valve cap

1шт.

7

NLS

NO LONGER SERVICED

CAP - valve short

1шт.

8

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4 (16412 mt'g.) (47377)

2шт.

9

16212

HOSE

SPRING - check valve

1шт.

10

O8635AB

X

BALL - check valve

1шт.

11

16214

HOSE

SEAT - check valve

1шт.

12

16227

HOSE

POPPET - relief valve

1шт.

13

NLS

NO LONGER SERVICED

SPRING - relief valve

1шт.

14

NLS

NO LONGER SERVICED

SCREW - relief valve

1шт.

15

16219

GASKET

- relief valve

2шт.

16

25-119

NUT,9/16"-18, G5

- reg. SF hex (9/16-18 NF) (48105)

1шт.

17

48355

NUT - cap

1шт.

18

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

1шт.

19

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, ext. sq. head, 1/2 NP (41823)

1шт.

17368

CLEVIS COUPLING

SECTION ASS'Y. - end

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING & SPOOL ASS'Y. - valve

1шт.

21

16205

RETAINER - spring

1шт.

22

16204

VALVE

SPRING - spool return

1шт.

23

16206

GUIDE ASS'Y. - spring

1шт.

24

16211

HOSE

GASKET - valve caps

1шт.

25

16210

HOSE

CAP - valve, long

1шт.

26

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4 (16210 mt'g.) (47377)

2шт.

27

16212

HOSE

SPRING - check valve

1шт.

28

O8635AB

X

BALL - check valve

1шт.

29

16214

HOSE

SEAT - check valve

1шт.

30

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

1шт.

31

16217

BUSHING

SLUG - relief valve

1шт.

32

48355

NUT - cap (9/16-18 NF)

1шт.

33

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, socket hd., (1/2 NP)

1шт.

34

16227

HOSE

POPPET - relief valve

1шт.

35

16404

SPRING CUP

SPRING - relief valve

1шт.

36

NLS

NO LONGER SERVICED

SCREW - relief valve adjusting

1шт.

37

16219

GASKET

- relief valve

1шт.

38

25-119

NUT,9/16"-18, G5

- reg. SF hex (9/16-18 NF) (48105)

1шт.

39

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, ext. sq. hd., 1/2 NP (41823)

1шт.

16402

CYLINDER

SECTION ASS'Y. - end

1шт.

40

NSS

NOT SOLD SEPARAT

HOUSING & SPOOL ASS'Y. - end

1шт.

41

16205

RETAINER - srping

1шт.

42

16204

VALVE

SPRING - spool return

1шт.

43

16206

GUIDE ASS'Y. - spring

1шт.

44

16211

HOSE

GASKET - valve, long

1шт.

45

16210

HOSE

CAP - valve, long

1шт.

46

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4 (16210 mt'g.) (47377)

2шт.

47

16212

HOSE

SPRING - check valve

1шт.

48

O8635AB

X

BALL - check valve

1шт.

49

16214

HOSE

SEAT - check valve

1шт.

50

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

1шт.

51

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, eq. hd., 3/4 NP (41824)

1шт.

38995

SECTION ASS'Y. - center

1шт.

52

NSS

NOT SOLD SEPARAT

HOUSING & SPOOL ASS'Y. - center

1шт.

53

16205

RETAINER - spring

1шт.

54

16204

VALVE

SPRING - spool return

1шт.

55

16206

GUIDE ASS'Y. - spring

1шт.

56

16211

HOSE

GASKET - valve cap

1шт.

57

16210

HOSE

CAP - valve, long

1шт.

58

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4 (16210 mt'g.) (47377)

2шт.

59

16212

HOSE

SPRING - check valve

1шт.

60

211-1005

BALL,3.96mm OD, Gr 24

BALL - check valve

1шт.

61

16214

HOSE

SEAT - check valve

1шт.

62

16202

O-RING,40544" ID x 13" OD x 1"

SEAT - "O" ring

1шт.

63

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, socket head, 1/2 NP

1шт.

R13396

SECTION ASS'Y. - center

1шт.

64

NSS

NOT SOLD SEPARAT

HOUSING & SPOOL ASS'Y. - center

1шт.

65

16212

HOSE

SPRING - check valve

1шт.

66

O8635AB

X

BALL - check valve

1шт.

67

16214

HOSE

SEAT - check valve

1шт.

68

16205

RETAINER - spring

1шт.

69

16204

VALVE

SPRING - spool return

1шт.

70

16411

HOSE

GUIDE - spring

1шт.

71

NLS

NO LONGER SERVICED

- spring guide

1шт.

72

16211

HOSE

GASKET - valve cap

1шт.

73

NLS

NO LONGER SERVICED

CAP - valve short

1шт.

74

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4 (16412 mt'g.) (47377)

2шт.

75

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

1шт.

76

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, socket head, 1/2 NP

1шт.

R13395

SECTION ASS'Y. - end

1шт.

77

NSS

NOT SOLD SEPARAT

HOUSING & SPOOL ASS'Y. - end

1шт.

78

16212

HOSE

SPRING - check valve

1шт.

79

O8635AB

X

BALL - check valve

1шт.

80

16214

HOSE

SEAT - check valve

1шт.

81

16205

RETAINER - spring

1шт.

82

16204

VALVE

SPRING - spool return

1шт.

83

16411

HOSE

GUIDE - spring

1шт.

84

16413

HOSE

- spring guide

1шт.

85

16211

HOSE

GASKET - valve cap

1шт.

86

NLS

NO LONGER SERVICED

CAP - valve, short

1шт.

87

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4 (16412 mt'g.) (47377)

2шт.

88

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

1шт.

89

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, ext. sq. head, 3/4 NP (41824)

1шт.
