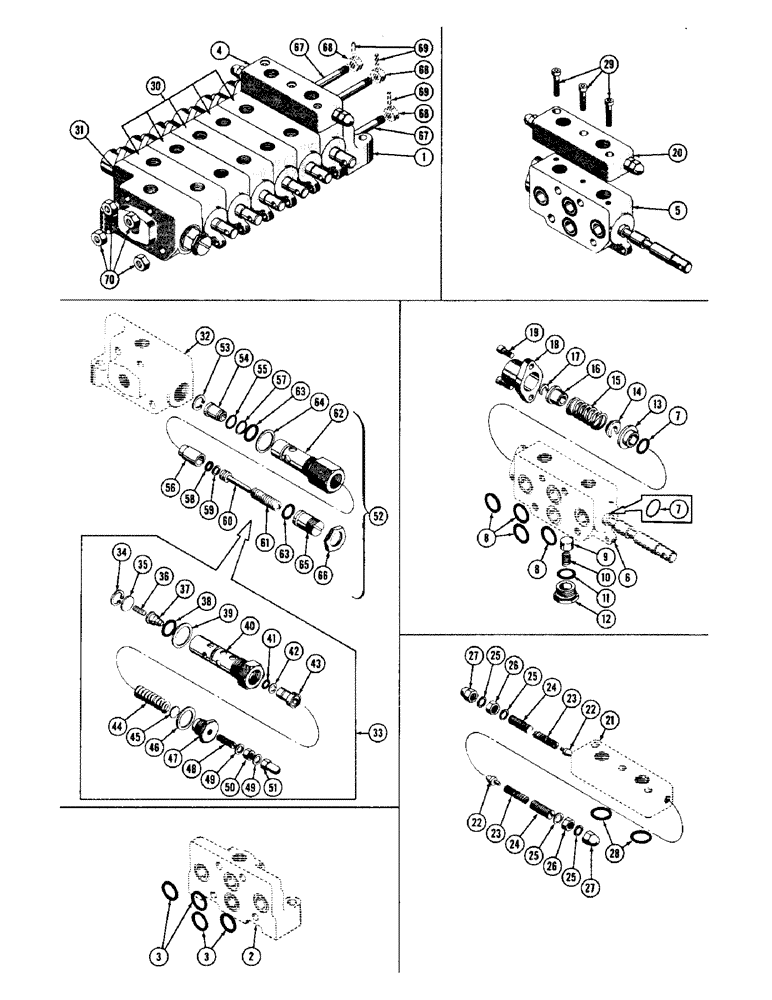

Запчасти Case 600 (292) - HYDRAULIC VALVE ASSEMBLY, HOUSINGS, SPOOLS, SEALS, SPRINGS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
34642
X
VALVE ASSEMBLY - hydraulic
1шт.
1
23103
DECAL
SECTION ASSEMBLY - end
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - valve end section
1шт.
4
23107
HYDRAULIC HOSE
SECTION ASSEMBLY - center
1шт.
5
23108
HYDRAULIC HOSE
VALVE ASSEMBLY - double acting
1шт.
6
NSS
NOT SOLD SEPARAT
BODY & SPOOL ASS'Y. - valve
1шт.
7
16202
O-RING,40544" ID x 13" OD x 1"
SEAL - "O" ring
2шт.
9
23116
HYDRAULIC HOSE
POPPET - check
1шт.
10
23118
HYDRAULIC HOSE
SPRING
1шт.
11
23119
O-RING,0.921" ID x 1.199" OD x 0.139"
SEAL - "O" ring
1шт.
12
23117
HYDRAULIC HOSE
CAP - check valve
1шт.
13
23122
HYDRAULIC HOSE
RETAINER - "O" ring
1шт.
15
23127
SPRING
1шт.
16
23125
HYDRAULIC HOSE
GUIDE - spring
1шт.
17
16413
HOSE
- spring guide
1шт.
18
23115
HYDRAULIC HOSE
CAP - valve
1шт.
19
61-512
HEX SOC SCREW,5/16"-18 x 3/4"
SHCS 5/16-18 NC x 3/4 (47377)
2шт.
20
23109
HYDRAULIC HOSE
VALVE UNIT - special relief
1шт.
21
NSS
NOT SOLD SEPARAT
HOUSING - relief valve
1шт.
22
16227
HOSE
POPPET - relief valve
2шт.
23
16404
SPRING CUP
SPRING
2шт.
24
NLS
NO LONGER SERVICED
SCREW - adjusting
2шт.
25
16219
GASKET
4шт.
26
86637932
JAM NUT,Jam, 5/8"-18, G5
NUT - hex (9/16 NF) (48195)
2шт.
27
48355
NUT - cap (9/16 NF)
2шт.
29
84-624
SHCS 3/8-16 NC x 1-1/2 (46964)
3шт.
30
23112
HYD VALVE SECTION
SECTION ASS'Y. - center
5шт.
6
NSS
NOT SOLD SEPARAT
BODY & SPOOL ASS'Y. - valve
1шт.
7
16202
O-RING,40544" ID x 13" OD x 1"
SEAL - "O" ring
2шт.
8
23105
X
SEAL - "O ring
4шт.
9
23116
HYDRAULIC HOSE
POPPET - check
1шт.
10
23118
HYDRAULIC HOSE
SPRING
1шт.
11
23119
O-RING,0.921" ID x 1.199" OD x 0.139"
SEAL - "O" ring
1шт.
12
23117
HYDRAULIC HOSE
CAP - check valve
1шт.
13
23122
HYDRAULIC HOSE
RETAINER - "O" ring
1шт.
15
23127
SPRING
1шт.
16
23125
HYDRAULIC HOSE
GUIDE - spring
1шт.
17
NLS
NO LONGER SERVICED
- spring guide
1шт.
18
23115
HYDRAULIC HOSE
CAP - valve
1шт.
19
61-512
HEX SOC SCREW,5/16"-18 x 3/4"
SHCS 5/16-18 NC x 3/4 (47377)
2шт.
31
23128
HYDRAULIC HOSE
SECTION ASS'Y. - end
1шт.
32
NSS
NOT SOLD SEPARAT
BODY - end section
1шт.
33
23130
VALVE - relief, sub. ass'y.
1шт.
34
23138
O-RING
RING - snap
1шт.
35
23144
THREADED TIE-ROD
WASHER
1шт.
36
23137
VALVE SPRING
SPRING - relief valve
1шт.
37
23134
HYDRAULIC HOSE
POPPET - relief valve
1шт.
38
O8377AB
X
SEAL - "O" ring
1шт.
39
23146
WASHER
- fibre
1шт.
40
23133
HYDRAULIC HOSE
SHELL - valve cartridge
1шт.
41
VT2983
X
SEAL - "O" ring
1шт.
42
23149
SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"
RING - back up
1шт.
43
23135
HYDRAULIC HOSE
SEAT - valve
1шт.
44
23136
SPRING
- relief valve
1шт.
45
23143
WASHER
- relief valve
1шт.
46
23148
SEAL
WASHER - fibre
1шт.
47
23139
GASKET
CAP - valve
1шт.
48
23140
STUD
SCREW - adjusting
1шт.
49
23150
WASHER
- copper
2шт.
50
25-156
JAM NUT,Jam, 3/8"-24, G5
- jam
1шт.
51
NLS
NO LONGER SERVICED
NUT - cap
1шт.
52
R11048
VALVE - relief, sub ass'y.
1шт.
53
23138
O-RING
RING - snap
1шт.
54
R12511
POPPET
- relief valve
1шт.
55
O8416AB
X
SEAL - "O" ring
1шт.
56
R12510
SEAT
SEAL - floating
1шт.
57
R12512
OIL SEAL
RING - back up
1шт.
58
O9787AB
X
SEAL - "O" ring
1шт.
59
R12509
RING
- back up
1шт.
60
R12508
PLUNGER - displacement
1шт.
61
23136
SPRING
- relief valve
1шт.
62
R12505
SHELL - cartridge
1шт.
63
O8377AB
X
SEAL - "O" ring
2шт.
64
23146
WASHER
- relief valve
1шт.
65
R12506
SCREW - spring adjusting
1шт.
66
R12507
LOCK NUT
- locking
1шт.
38578
SOCKET WRENCH
STUD ASSEMBLY
4шт.
67
38572
STUD- 1/2-20 NF x 16-3/4
1шт.
68
NSS
NOT SOLD SEPARAT
NUT - hex (1/2-20 NF)
1шт.
69
NSS
NOT SOLD SEPARAT
PIN - roll, 3/16 dia. x 3/4
1шт.
70
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - stop (1/2-20 NF)
4шт.
Выбрано товаров: 86
