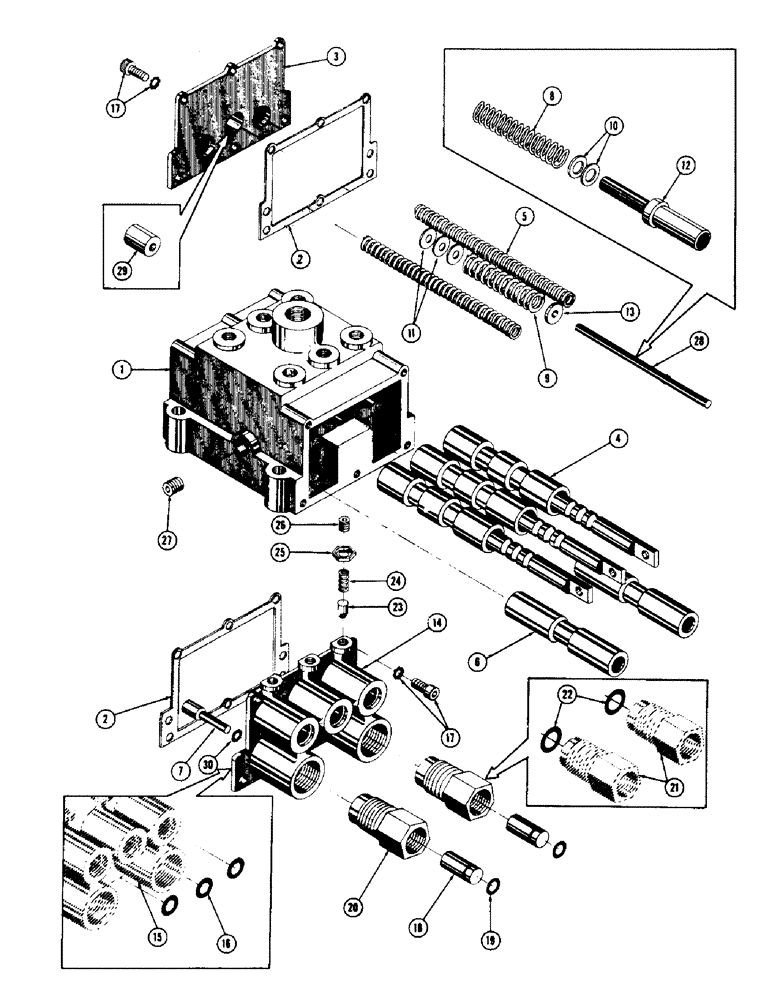

Запчасти Case 600 (290) - TRANSMISSION CONTROL VALVE ASSEMBLY, HOUSING, COVERS, SPOOLS, SPRINGS, SEALS (07) - HYDRAULIC SYSTEM

74918

VALVE ASS'Y. - trans. control (Used from serial #7060816)

1шт.

35660

BEARING

VALVE ASS'Y. - trans. control (Used from serial #7060674 and up to serial #7060816)

1шт.

1

35662

PUMP

BODY - control valve (Used from serial #7060674 and up to serial #7060816)

1шт.

74920

BODY - control valve (Used from serial #7060816)

1шт.

2

35665

GASKET

- valve cover

2шт.

3

35663

COVER - valve rear (Used from serial #7060674 and up to serial #7060816)

1шт.

74919

COVER - valve rear (Used from serial #7060816)

1шт.

4

71146

HOSE

ROD ASS'Y. - push, valve shift

3шт.

5

71125

SPRING

- brake valve

2шт.

6

71117

VALVE - brake (Used from serial #7060674 and up to serial #7060816)

2шт.

74916

SPOOL

VALVE - brake (Used from serial #7060816)

2шт.

7

71141

ROD

- brake valve push

2шт.

8

71150

SPRING - relief valve (Used from serial #7060674 and up to serial #7060816)

1шт.

9

74917

SPRING - relief valve (Used from serial #7060816)

1шт.

10

71136

WASHER - relief (Used from serial #7060674 and up to serial #7060816)

1шт.

11

74792

WASHER - relief (Used from serial #7060816)

1шт.

12

71134

SPRING

VALVE - relief (Used from serial #7060674 and up to serial #7060816)

1шт.

13

74777

VALVE POPPET

VALVE - relief (Used from serial #7060816)

1шт.

14

R-10914

COVER ASS'Y. - valve

1шт.

15

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

16

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft

3шт.

17

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW & LOCKWASHER ASS'Y. - soc. head cap

11шт.

18

71129

X

PISTON - brake valve

2шт.

19

NLS

NO LONGER SERVICED

- quad

2шт.

20

72989

X

HOUSING ASS'Y. - brake valve piston

2шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - brake valve piston

1шт.

22

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft

1шт.

23

71120

VALVE

DETENT

3шт.

24

71119

SPRING

- detent

3шт.

25

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

(48069) PAL, 3/8"-16

3шт.

26

178-653

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - soc. hd. set, 3/8-16 NC x 3/8 (47310)

3шт.

27

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, soc. head, 1/8-24 NPTF

2шт.

28

74778

GUIDE - relief valve (Used from serial #7060816)

1шт.

29

74779

RING

PLUG - cover rework (To rework cover used prior to serial #7060816)

1шт.

30

71133

PIN

- shaft

2шт.
